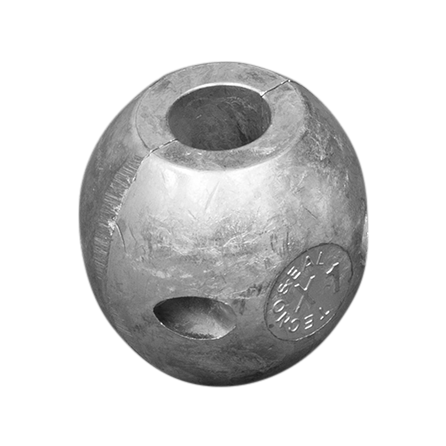

Tecnoseal Magnesium USA Type Shaft Sacrificial Anodes, Shaft 19–60 mm

ID 1399842

$ 27.12

1-2 weeks delivery time

Shaft Diameter:

25
28
30
35
40
45
48
50
60
7/8"
1-1/8"
1-1/4"
1-1/2"
1-3/4"
3/4"
1"
2"

Item:

150 g
160 g
250 g
270 g
110 g
90 g
650 g
100 g
280 g
120 g
180 g
340 g

Tecnoseal magnesium USA Type shaft sacrificial anodes for marine shaft installations, available for shaft sizes from 19 mm / 3/4" up to 60 mm and including both metric and imperial configurations. The range includes compact 2-fastening-hole models from 00500USAMG through 00514USAMG, plus the larger 00517USAMG version with 4 fastening holes. Depending on the model, anode height ranges from 51 to 102 mm, overall diameter from Ø54 to Ø107 mm and magnesium anode weight from 0.09 to 0.65 kg. Bolts and nuts are available on request. Select the required model according to shaft size, overall dimensions, fastening configuration and weight.

Description
Ask a Question

Tecnoseal Aluminium USA Type Shaft Sacrificial Anodes – 2 & 4 Fastening Holes, Shaft 19 mm to 3"

The Tecnoseal Aluminium USA Type Shaft Anodes are sacrificial shaft anodes available for a range of metric and imperial shaft diameters. The aluminium range covers shaft sizes from 19 mm / 3/4" up to 76.20 mm / 3".

The range includes models with 2 fastening holes for the smaller shaft sizes and 4 fastening holes for the larger configurations. Bolts and nuts are available on request.

Depending on the selected model, aluminium anode weight ranges from 0.14 to 1.25 kg, height from 51 to 102 mm and overall outside diameter from Ø54 to Ø122 mm.

Confirmed Osculati cross references include Tecnoseal 00501USAAL / Osculati 43.802.22, 00502USAAL / 43.802.25, 00506USAAL / 43.802.30, 00507USAAL / 43.802.32, 00509USA/AL / 43.802.35, 00510USA/AL / 43.802.38, 00511USAAL / 43.802.40, 00511MUSAAL / 43.802.44, 00512USAAL / 43.802.45, 00513USAAL / 43.802.50, 00514USAAL / 43.802.51, 00516USAAL / 43.802.57, 00517USAAL / 43.802.60 and 00520USAAL / 43.802.70.

Key Features

Brand: Tecnoseal
Type: USA Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Aluminium
Shaft Size Range: 19 mm / 3/4" to 76.20 mm / 3"
Fastening: 2 or 4 fastening holes depending on model
Bolts and Nuts: Available on request
Height Range: 51–102 mm
Overall Diameter Range: Ø54–122 mm
Weight Range: 0.14–1.25 kg
Osculati Cross References: 00501USAAL / 43.802.22; 00502USAAL / 43.802.25; 00506USAAL / 43.802.30; 00507USAAL / 43.802.32; 00509USA/AL / 43.802.35; 00510USA/AL / 43.802.38; 00511USAAL / 43.802.40; 00511MUSAAL / 43.802.44; 00512USAAL / 43.802.45; 00513USAAL / 43.802.50; 00514USAAL / 43.802.51; 00516USAAL / 43.802.57; 00517USAAL / 43.802.60; 00520USAAL / 43.802.70

USA Type Shaft Anodes – 2 Fastening Holes

Tecnoseal Code	Osculati Reference	USA Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500USAAL	—	X-1	19 mm / 3/4"	0.19 kg / 190 g	51 mm	54 mm	19 mm
00501USAAL	43.802.22	X-2	7/8"	0.17 kg / 170 g	51 mm	54 mm	22 mm
00502USAAL	43.802.25	D-25	25 mm	0.15 kg / 150 g	51 mm	54 mm	25 mm
00503USAAL	—	X-3	1"	0.16 kg / 160 g	51 mm	54 mm	25.40 mm
00504USAAL	—	D-28	28 mm	0.14 kg / 140 g	51 mm	54 mm	28 mm
00505USAAL	—	X-4	1-1/8"	0.14 kg / 140 g	51 mm	54 mm	28.60 mm
00506USAAL	43.802.30	D-30	30 mm	0.27 kg / 270 g	67 mm	63 mm	30 mm
00507USAAL	43.802.32	X-5	1-1/4"	0.19 kg / 190 g	64 mm	58 mm	31.80 mm
00509USA/AL	43.802.35	X-6 / D-35	35 mm	0.29 kg / 290 g	67 mm	66 mm	35 mm
00510USA/AL	43.802.38	X-7	1-1/2"	0.25 kg / 250 g	67 mm	66 mm	38 mm
00511MUSAAL	43.802.44	X-8	1-3/4"	0.43 kg / 430 g	76 mm	82 mm	44.40 mm
00511USAAL	43.802.40	D-40	40 mm	0.54 kg / 540 g	76 mm	82 mm	40 mm
00512MUSAAL	—	D-48	48 mm	0.40 kg / 400 g	76 mm	82 mm	48 mm
00512USAAL	43.802.45	D-45	45 mm	0.43 kg / 430 g	76 mm	82 mm	45 mm
00513USAAL	43.802.50	D-50	50 mm	0.43 kg / 430 g	76 mm	82 mm	50 mm
00514USAAL	43.802.51	X-9	2"	0.43 kg / 430 g	75 mm	82 mm	50.80 mm

USA Type Shaft Anodes – 4 Fastening Holes

Tecnoseal Code	Osculati Reference	USA Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00516USAAL	43.802.57	X-10	2-1/4"	1.11 kg / 1110 g	102 mm	107 mm	57.10 mm
00517USAAL	43.802.60	D-60	60 mm	1.00 kg / 1000 g	102 mm	107 mm	60 mm
00518USAAL	—	X-11	2-1/2"	0.94 kg / 940 g	102 mm	107 mm	63.50 mm
00520USAAL	43.802.70	X-12	2-3/4"	1.25 kg / 1250 g	96 mm	122 mm	70 mm
00521MUSAAL	—	X-13	3"	1.05 kg / 1050 g	96 mm	122 mm	76.20 mm

Fastening Configuration

2 Fastening Holes: 00500USAAL through 00514USAAL
4 Fastening Holes: 00516USAAL through 00521MUSAAL
Bolts and Nuts: Available on request

Dimensions for Model Selection

Shaft Size: Nominal metric or imperial shaft size for the selected anode
h: Overall anode height
Ø: Overall outside diameter
Ø1: Internal shaft opening diameter

For replacement selection, compare the shaft size, Ø1 dimension, overall diameter, height, fastening-hole configuration and anode weight with the existing installation.
