Tecnoseal magnesium UK Type shaft sacrificial anodes for marine shaft installations, available in six metric and imperial shaft configurations from 19 mm / 3/4" up to 30 mm. All models have a height of 65 mm and an overall outside diameter of Ø56 mm, with shaft openings from 19 to 30 mm. The range includes 3/4", 7/8", 1" and 1-1/8" imperial versions together with 25 mm and 30 mm metric sizes, with listed magnesium anode weights from 0.01 to 0.18 kg. Bolts and nuts are not included. Select the required model according to shaft size, Ø1 opening and weight.
- Description
- Ask a Question
-

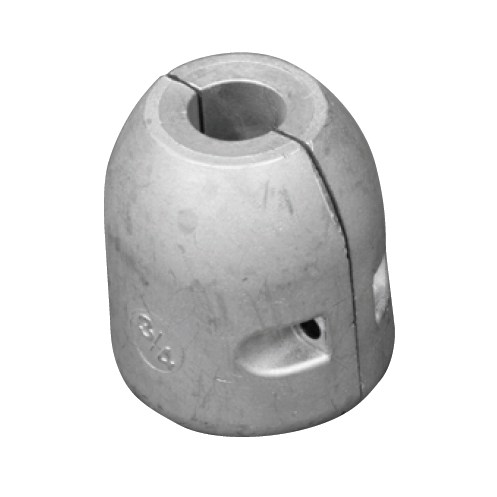

Tecnoseal Magnesium UK Type Shaft Sacrificial Anodes – Shaft 19–30 mm
The Tecnoseal Magnesium UK Type Shaft Anodes are sacrificial anodes for marine shaft installations. The range includes six metric and imperial shaft-size configurations from 19 mm / 3/4" up to 30 mm.
All available models have a height of 65 mm and an overall outside diameter of Ø56 mm. Internal shaft openings range from 19 to 30 mm. Imperial versions include 3/4", 7/8", 1" and 1-1/8". Bolts and nuts are not included.
Key Features
- Brand: Tecnoseal
- Type: UK Type Shaft Anode
- Product Type: Shaft sacrificial anode
- Material: Magnesium
- Available Models: 00500UKMG, 00501UKMG, 00502UKMG, 00503UKMG, 00505UKMG and 00506UKMG
- Shaft Size Range: 19 mm / 3/4" to 30 mm
- Height (h): 65 mm
- Overall Diameter (Ø): 56 mm
- Weight Range: 0.01–0.18 kg according to the supplied product data
- Bolts and Nuts: Not included
Available Models and Technical Specifications
Tecnoseal Code Shaft Size Weight Height (h) Overall Ø Ø1 00500UKMG 19 mm / 3/4" 0.18 kg / 180 g 65 mm 56 mm 19 mm 00501UKMG 7/8" 0.18 kg / 180 g 65 mm 56 mm 22 mm 00502UKMG 25 mm 0.17 kg / 170 g 65 mm 56 mm 25 mm 00503UKMG 1" 0.17 kg / 170 g 65 mm 56 mm 25.40 mm 00505UKMG 1-1/8" 0.15 kg / 150 g 65 mm 56 mm 28.58 mm 00506UKMG 30 mm 0.01 kg / 10 g 65 mm 56 mm 30 mm
Tecnoseal 00500UKMG – Shaft 19 mm / 3/4"
- Material: Magnesium
- Type: UK Type
- Weight: 0.18 kg / 180 g / 0.40 lb
- Shaft Size: 19 mm / 3/4"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 19 mm / 0.75 in
Tecnoseal 00501UKMG – Shaft 7/8"
- Material: Magnesium
- Type: UK Type
- Weight: 0.18 kg / 180 g / 0.39 lb
- Shaft Size: 7/8"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 22 mm / 0.87 in
Tecnoseal 00502UKMG – Shaft 25 mm
- Material: Magnesium
- Type: UK Type
- Weight: 0.17 kg / 170 g / 0.38 lb
- Shaft Size: 25 mm
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 25 mm / 0.98 in
Tecnoseal 00503UKMG – Shaft 1"
- Material: Magnesium
- Type: UK Type
- Weight: 0.17 kg / 170 g / 0.37 lb
- Shaft Size: 1"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 25.40 mm / 1.00 in
Tecnoseal 00505UKMG – Shaft 1-1/8"
- Material: Magnesium
- Type: UK Type
- Weight: 0.15 kg / 150 g / 0.33 lb
- Shaft Size: 1-1/8"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 28.58 mm / 1.13 in
Tecnoseal 00506UKMG – Shaft 30 mm
- Material: Magnesium
- Type: UK Type
- Weight: 0.01 kg / 10 g / 0.03 lb
- Shaft Size: 30 mm
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 30 mm / 1.18 in
Dimensions for Model Selection
- Shaft Size: Nominal shaft diameter for the selected UK Type anode
- h: Overall anode height
- Ø: Overall outside diameter
- Ø1: Internal shaft opening diameter
- Bolts and Nuts: Not included
For replacement selection, compare the shaft size, Ø1 opening, overall diameter, height and anode weight with the existing installation.
-
