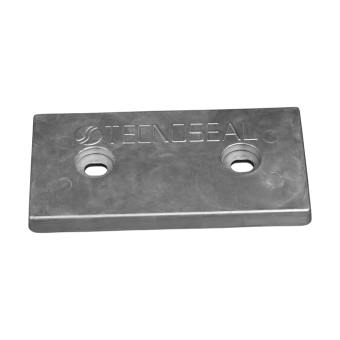

Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 140-160 – 300 mm

Name: Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 140-160 – 300 mm
SKU: Tecnoseal 00264-1

ID 1406245

$ 698.77

1-2 weeks delivery time

Size:

300x150x50
300x150x25
300x150x28
300x160x40
300x200x55

Item:

8000 g 22x30 mm holes
7300 g
8000 g 17x25 mm holes
12220 g
14000 g
21000 g

Tecnoseal HC 140-160 rectangular zinc sacrificial plate anodes with inserts for marine hull and transom applications. Available in six configurations with lengths of 300 mm, widths of 150–200 mm and heights of 25–55 mm. Depending on the model, mounting hole spacing is 150 or 160 mm, with elongated mounting openings measuring 17 × 25 mm, 22 × 30 mm or 22 × 26 mm. Individual anode weights range from 7.30 to 21.00 kg. Select the required model according to its dimensions, weight and mounting configuration.

Description
Ask a Question

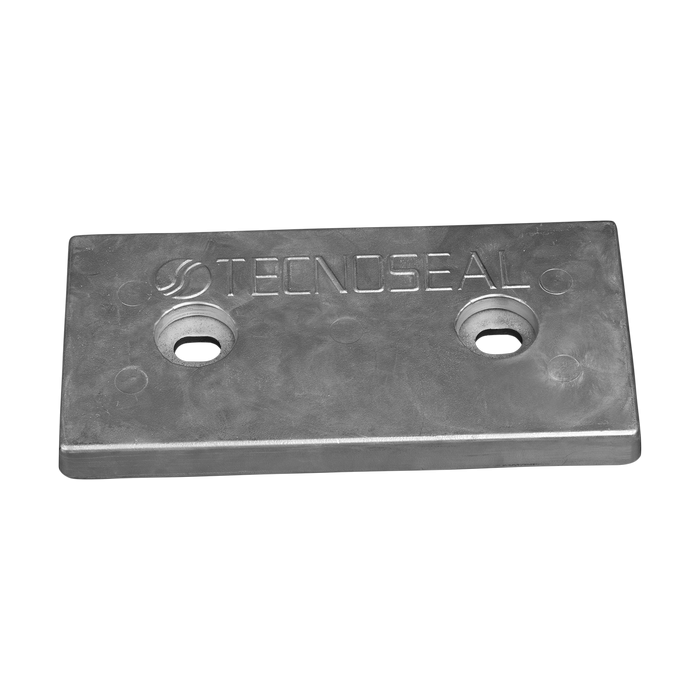

Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 140-160 – 300 mm

The Tecnoseal HC 140-160 range includes rectangular zinc sacrificial plate anodes with inserts for marine hull and transom applications. This product group includes six configurations with a nominal length of 300 mm.

The anodes differ in width, height, weight and mounting hole arrangement. They are intended for marine installations requiring a rectangular sacrificial anode with the specified mounting dimensions.

Key Features

Manufacturer: Tecnoseal
Product Type: Rectangular sacrificial plate anode with insert
Series: HC 140-160
Material: Zinc
Application: Marine hull and transom
Length: 300 mm
Available Widths: 150 mm, 160 mm, 200 mm
Available Heights: 25 mm, 28 mm, 40 mm, 50 mm, 55 mm
Mounting Hole Spacing: 150 mm or 160 mm
Mounting: Two elongated openings
Weight Range: 7.30–21.00 kg

Technical Specifications by Model

Product Code	Dimensions (mm)	Hole Spacing	Hole Size	Weight
00264-1	300 × 150 × 28	160 mm	22 × 30 mm	8.00 kg
00264-3	300 × 150 × 25	160 mm	17 × 25 mm	7.30 kg
00264	300 × 150 × 28	160 mm	17 × 25 mm	8.00 kg
00263/N	300 × 160 × 40	150 mm	22 × 30 mm	12.22 kg
00264N	300 × 150 × 50	160 mm	17 × 25 mm	14.00 kg
00265N	300 × 200 × 55	160 mm	22 × 26 mm	21.00 kg

Available Models

Tecnoseal 00264-1: Zinc rectangular plate measuring 300 × 150 × 28 mm with 22 × 30 mm elongated mounting holes, 160 mm centre-to-centre spacing and a weight of 8.00 kg.

Tecnoseal 00264-3: Zinc rectangular plate measuring 300 × 150 × 25 mm with 17 × 25 mm elongated mounting holes, 160 mm centre-to-centre spacing and a weight of 7.30 kg.

Tecnoseal 00264: Zinc rectangular plate measuring 300 × 150 × 28 mm with 17 × 25 mm elongated mounting holes, 160 mm centre-to-centre spacing and a weight of 8.00 kg.

Tecnoseal 00263/N: Zinc rectangular plate measuring 300 × 160 × 40 mm with 22 × 30 mm elongated mounting holes, 150 mm centre-to-centre spacing and a weight of 12.22 kg.

Tecnoseal 00264N: Zinc rectangular plate measuring 300 × 150 × 50 mm with 17 × 25 mm elongated mounting holes, 160 mm centre-to-centre spacing and a weight of 14.00 kg.

Tecnoseal 00265N: Zinc rectangular plate measuring 300 × 200 × 55 mm with 22 × 26 mm elongated mounting holes, 160 mm centre-to-centre spacing and a weight of 21.00 kg.

Hull and Transom Application

These zinc sacrificial anodes are intended for marine hull and transom installations. When correctly installed with electrical contact, the zinc material helps protect connected metallic components against galvanic corrosion.
