ID
1406243
$ 242.79
1-2 weeks delivery time
-
+

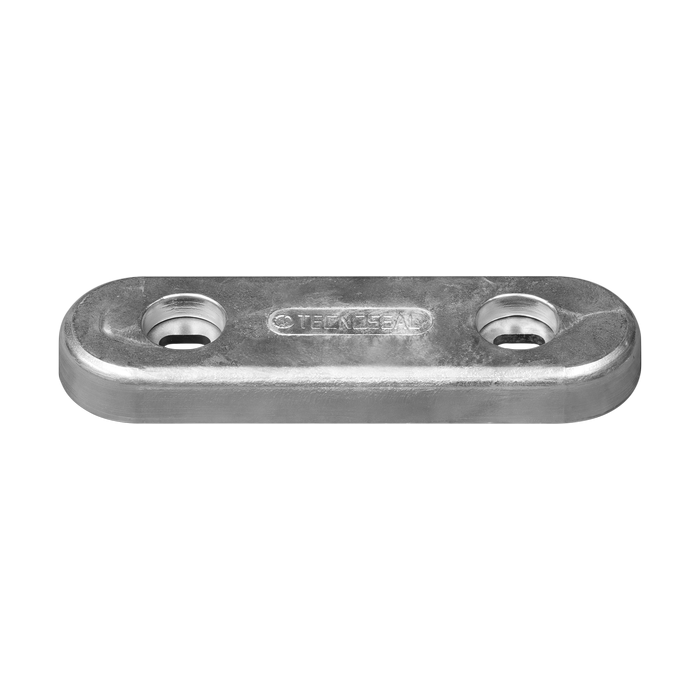

The Tecnoseal 00242 is a zinc sacrificial plate anode with insert for marine hull and transom applications. It has an elongated body with rounded ends, measuring 280 × 85 × 30 mm. The anode features two 12 × 30 mm slotted mounting holes spaced 160 mm centre to centre. Part of the HC 140-160 series, it weighs 4.20 kg (9.26 lbs) and is intended for galvanic corrosion protection of electrically connected marine metal components.
- Description
- Ask a Question
-

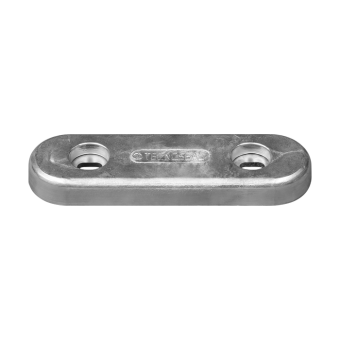

Tecnoseal 00242 Zinc Hull and Transom Plate Anode with Insert 280x85x30 mm
The Tecnoseal 00242 is a zinc sacrificial plate anode with insert for marine hull and transom applications. It belongs to the HC 140-160 series and has an elongated plate shape with rounded ends.
The anode measures 280 × 85 × 30 mm and features two elongated mounting holes measuring 12 × 30 mm. The mounting positions are spaced 160 mm centre to centre. The anode weighs 4.20 kg (9.26 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00242
- Product Type: Sacrificial plate anode with insert
- Series: HC 140-160
- Material: Zinc
- Application: Marine hull and transom
- Shape: Elongated plate with rounded ends
- Dimensions: 280 × 85 × 30 mm
- Mounting Holes: 2 elongated openings
- Hole Spacing: 160 mm
- Mounting Hole Dimensions: 12 × 30 mm
- Weight: 4.20 kg / 4200 g
- EAN: 8033837060635
Technical Specifications
Parameter Specification Tecnoseal Code 00242 Material Zinc Length (l) 280 mm Width (a) 85 mm Height (h) 30 mm Hole Spacing (i) 160 mm Mounting Hole Dimensions (Ø) 12 × 30 mm Number of Mounting Holes 2 Weight 4.20 kg / 9.26 lbs EAN 8033837060635
Hull and Transom Application
The Tecnoseal 00242 is designed for marine hull and transom installations requiring a zinc sacrificial anode with an elongated body and two slotted mounting holes.
The zinc material helps protect electrically connected metallic components against galvanic corrosion when the anode is installed with proper electrical contact.
Mounting and Replacement
The anode has two elongated mounting openings measuring 12 × 30 mm, spaced 160 mm centre to centre.
Before ordering, compare the overall dimensions and mounting configuration with the existing anode. Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00242 zinc sacrificial plate anode with insert.
-
