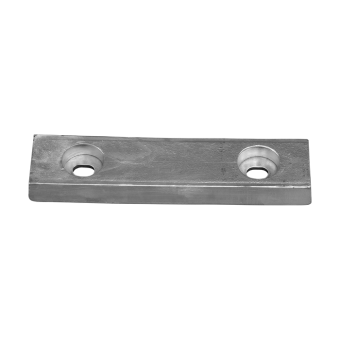

Tecnoseal Vetus Type Hull and Transom Plate Anode with Insert HC 200

Name: Tecnoseal Vetus Type Hull and Transom Plate Anode with Insert HC 200
SKU: Tecnoseal 00223/1

ID 1406256

$ 255.23

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

5000 g
2300 g

The Tecnoseal 00223/1 series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications, identified as Vetus Type. Available in zinc, aluminium and magnesium, all versions measure 325 × 78 × 35 mm and feature mounting holes with 200 mm centre-to-centre spacing, 45 mm recess diameter and 17 × 25 mm elongated openings. The zinc 00223/1 weighs 5.00 kg, aluminium 00223-1AL weighs 2.30 kg and magnesium 00223-1MG weighs 1.73 kg. These anodes belong to the HC 200 series.

Description
Ask a Question

Tecnoseal 00223/1 Vetus Type Hull and Transom Plate Anode with Insert HC 200 – Zinc, Aluminium & Magnesium

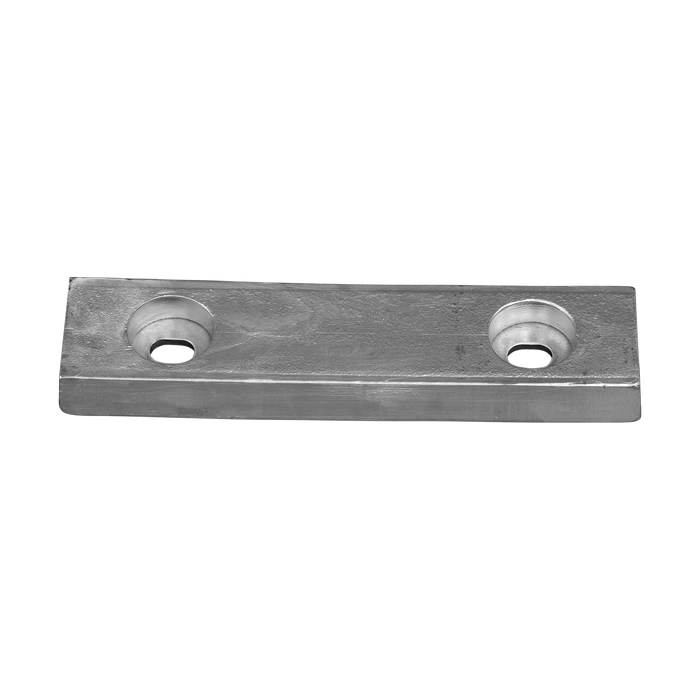

The Tecnoseal 00223/1 series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications. The anodes are identified as Vetus Type and are available in zinc, aluminium and magnesium.

All three versions measure 325 × 78 × 35 mm and feature a mounting hole centre-to-centre distance of 200 mm. The mounting arrangement includes 17 × 25 mm elongated openings and a 45 mm recess diameter.

Key Features

Manufacturer: Tecnoseal
Product Series: 00223/1
Product Type: Rectangular sacrificial plate anode with insert
Series: HC 200
Application: Marine hull and transom, Vetus Type
Available Materials: Zinc, Aluminium, Magnesium
Dimensions: 325 × 78 × 35 mm
Mounting Hole Spacing: 200 mm
Mounting Openings: 17 × 25 mm
Recess Diameter: 45 mm

Technical Specifications

Parameter	Specification
Length (l)	325 mm / 12.80 in
Width (a)	78 mm / 3.07 in
Height (h)	35 mm / 1.38 in
Mounting Hole Spacing (i)	200 mm / 7.87 in
Recess Diameter (Ø1)	45 mm / 1.77 in
Mounting Opening (Ø2)	17 × 25 mm / 0.67 × 0.98 in

Available Models

Product Code	Material	Weight
00223/1	Zinc	5.00 kg / 11.02 lbs
00223-1AL	Aluminium	2.30 kg / 5.07 lbs
00223-1MG	Magnesium	1.73 kg / 3.81 lbs

Hull and Transom Application

These plate anodes are intended for marine hull and transom installations requiring the specified HC 200 mounting arrangement. The zinc, aluminium and magnesium versions provide sacrificial corrosion protection for electrically connected metallic components.

Select the material according to the vessel's operating water conditions and existing corrosion protection system.

Mounting and Replacement

Before ordering, compare the anode dimensions, 200 mm mounting hole spacing, 45 mm recess diameter and 17 × 25 mm mounting openings with the existing anode.

Inspect the anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal HC 200 rectangular plate anode in the selected material.
