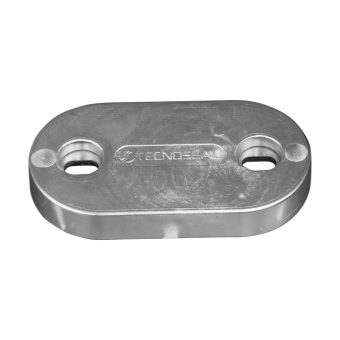

Tecnoseal Sea Ray Zinc Oval Plate Anodes with Insert 207x110 mm

Name: Tecnoseal Sea Ray Zinc Oval Plate Anodes with Insert 207x110 mm
SKU: Tecnoseal 00266

ID 1406271

$ 180.72

1-2 weeks delivery time

Size:

207x110x31
207x110x24

Item:

3100 g
3900 g

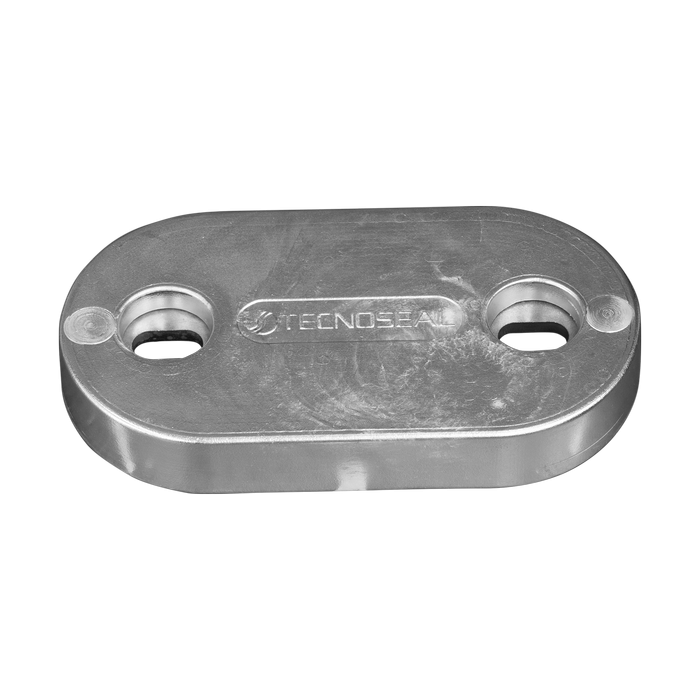

The Tecnoseal 00266 series includes zinc oval sacrificial plate anodes with inserts for Sea Ray marine applications. Both versions measure 207 × 110 mm and feature two elongated mounting holes measuring 13 × 25 mm, spaced 130 mm centre to centre, with a Ø34 mm mounting recess dimension. The Tecnoseal 00266 has a height of 31 mm and weighs 3.90 kg (8.60 lbs), while the 00266/1 has a height of 24 mm and weighs 3.10 kg (6.83 lbs). Select the required version according to its height and weight.

Description
Ask a Question

Tecnoseal 00266 / 00266-1 Sea Ray Zinc Oval Plate Anodes with Insert – 207x110 mm

The Tecnoseal 00266 series consists of oval zinc sacrificial plate anodes with inserts for Sea Ray marine applications. Two versions are available, differing in body height and weight.

Both anodes measure 207 × 110 mm across the body and feature two elongated mounting holes measuring 13 × 25 mm, with a centre-to-centre spacing of 130 mm. The catalogue also specifies a Ø34 mm mounting recess dimension.

Key Features

Manufacturer: Tecnoseal
Product Codes: 00266, 00266/1
Product Type: Oval sacrificial plate anode with insert
Application: Sea Ray
Material: Zinc
Shape: Oval
Length: 207 mm
Width: 110 mm
Available Heights: 31 mm, 24 mm
Mounting Hole Spacing: 130 mm
Mounting Openings: 13 × 25 mm
Recess Dimension (Ø1): 34 mm

Technical Specifications

Parameter	00266	00266/1
Material	Zinc	Zinc
Length (l)	207 mm / 8.15 in	207 mm / 8.15 in
Width (a)	110 mm / 4.33 in	110 mm / 4.33 in
Height (h)	31 mm / 1.22 in	24 mm / 0.94 in
Hole Spacing (i)	130 mm / 5.12 in	130 mm / 5.12 in
Mounting Openings (Ø)	13 × 25 mm	13 × 25 mm
Recess Dimension (Ø1)	34 mm	34 mm
Weight	3.90 kg / 8.60 lbs	3.10 kg / 6.83 lbs
EAN	8033837060796	8052744982052

Available Models

Tecnoseal 00266: Zinc oval plate anode measuring 207 × 110 × 31 mm, with 130 mm mounting hole spacing and a weight of 3.90 kg.

Tecnoseal 00266/1: Zinc oval plate anode measuring 207 × 110 × 24 mm, with the same mounting arrangement and a weight of 3.10 kg.

Sea Ray Application

These zinc sacrificial anodes are intended for Sea Ray marine installations requiring an oval plate with the specified mounting dimensions.

The zinc material helps protect electrically connected metallic components against galvanic corrosion.

Mounting and Replacement

Both versions feature two elongated 13 × 25 mm mounting openings spaced 130 mm centre to centre, together with a Ø34 mm mounting recess dimension.

Before ordering, compare the existing anode's mounting configuration and body height. The 00266 version is 31 mm high, while the 00266/1 version is 24 mm high.

Inspect the anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal Sea Ray zinc oval plate anode in the selected height.
