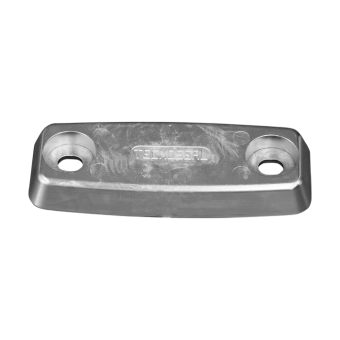

Tecnoseal Hull and Transom Plate Anode with Insert HC 200 282x108x35 mm

Name: Tecnoseal Hull and Transom Plate Anode with Insert HC 200 282x108x35 mm
SKU: Tecnoseal 00223f

ID 1406259

from $ 311.17

1-2 weeks delivery time

Tecnoseal 00223F series rectangular sacrificial plate anodes with inserts for marine hull and transom applications. Available in zinc (00223F) and aluminium (00223FAL), both versions measure 282 × 108 × 35 mm and feature two elongated 19 × 25 mm mounting holes spaced 200 mm centre to centre. The zinc model weighs 5.50 kg (12.13 lbs), while the aluminium model weighs 2.20 kg (4.85 lbs). Both variants belong to the HC 200 series and are designed for galvanic corrosion protection of compatible metallic marine components.

Description
Ask a Question

Tecnoseal 00223F Hull and Transom Plate Anode with Insert HC 200 – Zinc / Aluminium 282x108x35 mm

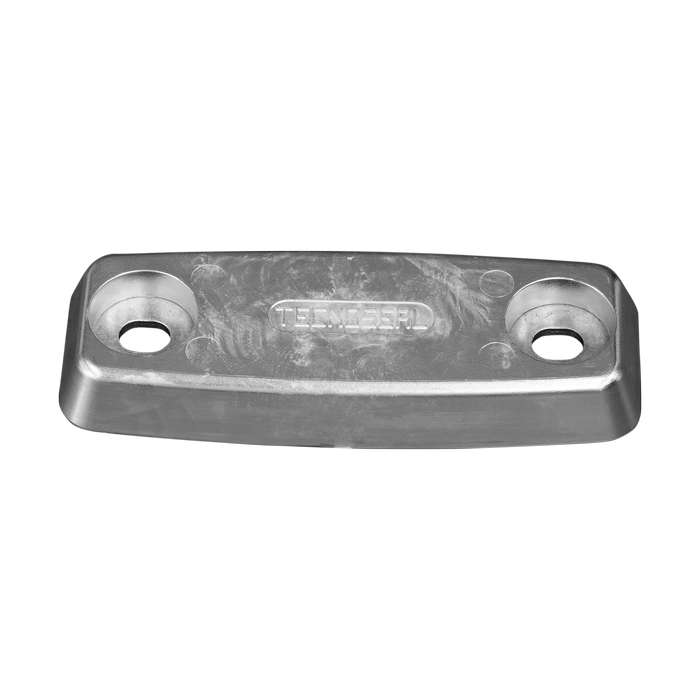

The Tecnoseal 00223F series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications. Two material versions are available: zinc (00223F) and aluminium (00223FAL).

Both models measure 282 × 108 × 35 mm and have two elongated mounting holes measuring 19 × 25 mm, with a centre-to-centre spacing of 200 mm. They belong to the Tecnoseal HC 200 plate series.

Key Features

Manufacturer: Tecnoseal
Product Series: 00223F
Product Type: Rectangular sacrificial plate anode with insert
Series: HC 200
Application: Marine hull and transom
Available Materials: Zinc, Aluminium
Dimensions: 282 × 108 × 35 mm
Mounting Holes: Two elongated openings
Hole Spacing: 200 mm
Mounting Hole Dimensions: 19 × 25 mm

Technical Specifications

Parameter	Specification
Length (l)	282 mm / 11.10 in
Width (a)	108 mm / 4.25 in
Height (h)	35 mm / 1.38 in
Mounting Hole Spacing (i)	200 mm / 7.87 in
Mounting Hole Dimensions (Ø)	19 × 25 mm / 0.75 × 0.98 in
Number of Mounting Holes	2

Available Models

Product Code	Material	Weight	EAN
00223F	Zinc	5.50 kg / 12.13 lbs	8059617810429
00223FAL	Aluminium	2.20 kg / 4.85 lbs	8059617816728

Hull and Transom Application

These plate anodes are intended for marine hull and transom installations requiring a rectangular sacrificial anode with the specified dimensions and mounting configuration.

The zinc and aluminium versions help protect electrically connected metallic marine components against galvanic corrosion. Select the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.

Mounting and Replacement

Both models feature two elongated mounting holes measuring 19 × 25 mm, spaced 200 mm centre to centre.

Before ordering, compare the overall dimensions and mounting arrangement with the existing anode.

Inspect the anode periodically for material loss and replace it when sufficiently consumed.

Supply: One Tecnoseal 00223F series rectangular plate anode in the selected material.
