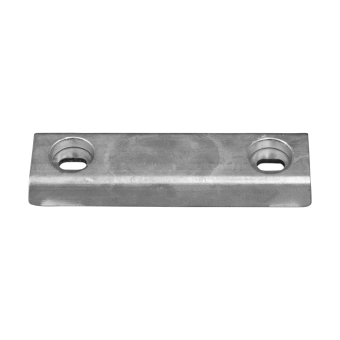

Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 180

Name: Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 180
SKU: Tecnoseal 00226

ID 1406252

$ 212.52

1-2 weeks delivery time

Size:

250x67x35
322x83x30
308x85x46

Item:

3400 g
5000 g
7000 g

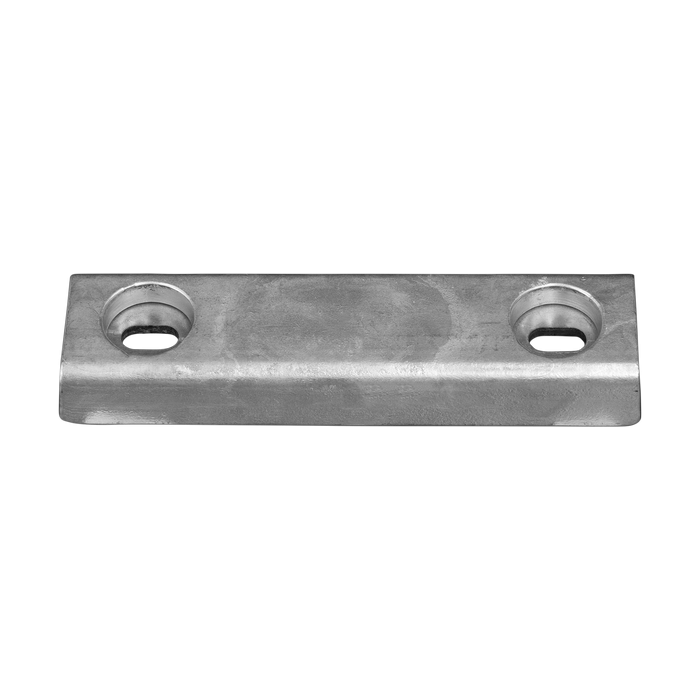

The Tecnoseal HC 180 series includes rectangular zinc sacrificial plate anodes with inserts for marine hull and transom applications. Three models are available: 00226 (250 × 67 × 35 mm, 3.40 kg), 00225 (322 × 83 × 30 mm, 5.00 kg) and 00245 (308 × 85 × 46 mm, 7.00 kg). All versions have two elongated mounting holes measuring 13 × 25 mm, spaced 180 mm centre to centre. Select the required model according to its dimensions and weight.

Description
Ask a Question

Tecnoseal Zinc Hull and Transom Plate Anodes with Insert HC 180 – 00226, 00225, 00245

The Tecnoseal HC 180 series includes rectangular zinc sacrificial plate anodes with inserts for marine hull and transom applications. This product group consists of three models: 00226, 00225 and 00245.

All three models have two elongated mounting holes measuring 13 × 25 mm, with a centre-to-centre spacing of 180 mm. They differ in overall dimensions and weight.

Key Features

Manufacturer: Tecnoseal
Product Type: Rectangular sacrificial plate anode with insert
Series: HC 180
Material: Zinc
Application: Marine hull and transom
Available Models: 00226, 00225, 00245
Mounting: Two elongated holes
Hole Spacing: 180 mm
Mounting Hole Dimensions: 13 × 25 mm
Weight Range: 3.40–7.00 kg

Technical Specifications

Parameter	00226	00225	00245
Material	Zinc	Zinc	Zinc
Length (l)	250 mm	322 mm	308 mm
Width (a)	67 mm	83 mm	85 mm
Height (h)	35 mm	30 mm	46 mm
Mounting Hole Spacing (i)	180 mm	180 mm	180 mm
Mounting Hole Dimensions (Ø)	13 × 25 mm	13 × 25 mm	13 × 25 mm
Weight	3.40 kg	5.00 kg	7.00 kg
Weight (lbs)	7.50 lbs	11.02 lbs	15.43 lbs
EAN	8033837060499	8033837060482	8033837068402

Available Models

Tecnoseal 00226: Rectangular zinc plate measuring 250 × 67 × 35 mm, with 180 mm mounting hole spacing and two 13 × 25 mm elongated openings. Weight: 3.40 kg (7.50 lbs).

Tecnoseal 00225: Rectangular zinc plate measuring 322 × 83 × 30 mm, with 180 mm mounting hole spacing and two 13 × 25 mm elongated openings. Weight: 5.00 kg (11.02 lbs).

Tecnoseal 00245: Rectangular zinc plate measuring 308 × 85 × 46 mm, with 180 mm mounting hole spacing and two 13 × 25 mm elongated openings. Weight: 7.00 kg (15.43 lbs).

Hull and Transom Application

These zinc sacrificial plate anodes are intended for marine hull and transom installations requiring a rectangular anode with 180 mm mounting hole spacing.

The zinc material helps protect electrically connected metallic marine components against galvanic corrosion when installed with proper electrical contact.

Mounting and Replacement

All three models have two elongated mounting holes measuring 13 × 25 mm, spaced 180 mm centre to centre.

Before ordering, compare the overall dimensions and mounting arrangement with the existing anode. The models have the same mounting hole spacing but different body sizes.

Inspect the anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal HC 180 zinc sacrificial plate anode in the selected size.
