ID
1406269
$ 60.84
1-2 weeks delivery time
-
+

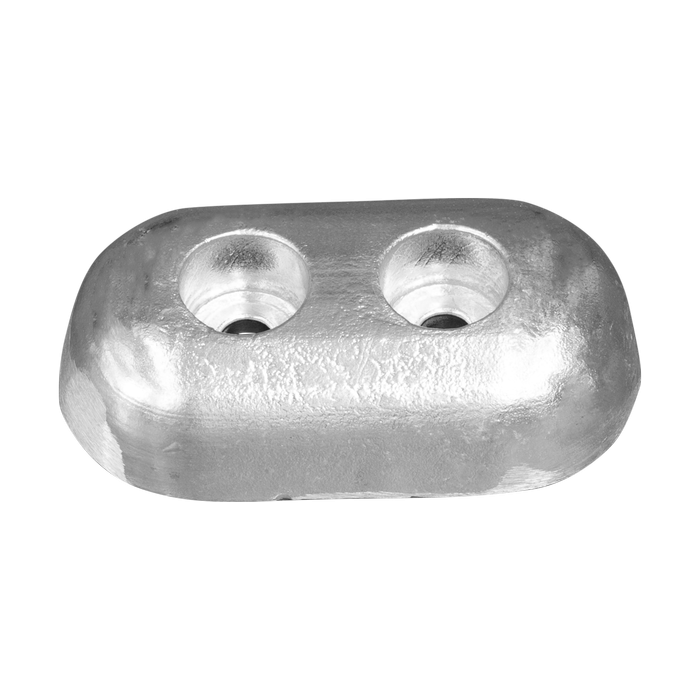

The Tecnoseal 00224 is a zinc oval sacrificial plate anode without insert from the Hydromarine series, designed for marine corrosion protection applications. It measures 115 × 65 × 30 mm and features two Ø10.5 mm mounting holes with Ø25 mm recesses, spaced 40 mm centre to centre. The anode weighs 0.90 kg (1.98 lbs).
- Description
- Ask a Question
-

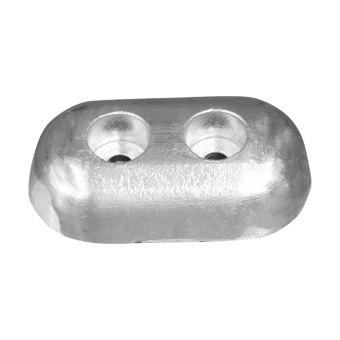

Tecnoseal 00224 Hydromarine Zinc Oval Plate Anode without Insert 115x65x30 mm
The Tecnoseal 00224 is a zinc sacrificial oval plate anode without insert from the Hydromarine series. It is designed for marine installations requiring an oval anode with two mounting holes.
The anode measures 115 × 65 × 30 mm and has two Ø10.5 mm mounting holes with Ø25 mm recesses. The mounting holes are spaced 40 mm centre to centre. Its weight is 0.90 kg (1.98 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00224
- Series: Hydromarine
- Product Type: Oval sacrificial plate anode without insert
- Material: Zinc
- Shape: Oval
- Dimensions: 115 × 65 × 30 mm
- Mounting: Two holes
- Hole Spacing: 40 mm
- Mounting Hole Diameter: Ø10.5 mm
- Recess Diameter: Ø25 mm
- Weight: 0.90 kg / 900 g
- EAN: 8033837060475
Technical Specifications
Parameter Specification Tecnoseal Code 00224 Material Zinc Length (l) 115 mm Width (a) 65 mm Height (h) 30 mm Hole Spacing (i) 40 mm Recess Diameter (Ø1) 25 mm Mounting Hole Diameter (Ø) 10.5 mm Weight 0.90 kg / 1.98 lbs EAN 8033837060475
Marine Application
The Tecnoseal 00224 is intended for marine corrosion protection applications requiring an oval zinc sacrificial anode without insert.
The zinc material helps protect electrically connected metallic components against galvanic corrosion when installed with proper electrical contact.
Mounting and Replacement
The anode has two Ø10.5 mm mounting holes with Ø25 mm recesses, spaced 40 mm centre to centre.
Before ordering, compare the dimensions and mounting hole configuration with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00224 Hydromarine zinc oval plate anode without insert.
-
