The Tecnoseal 00217 is an MMI series oval zinc sacrificial hull anode without insert, supplied with zinc plugs. It measures 150 × 80 × 40 mm and features two Ø14.5 mm mounting holes spaced 60 mm centre to centre, with Ø40 × 3 mm recess dimensions specified in the catalogue. The anode weighs 2.70 kg (5.95 lbs) and is intended for marine hull corrosion protection.
- Description
- Ask a Question
-

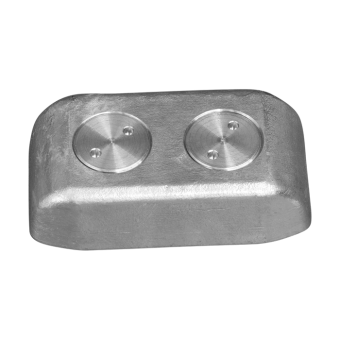

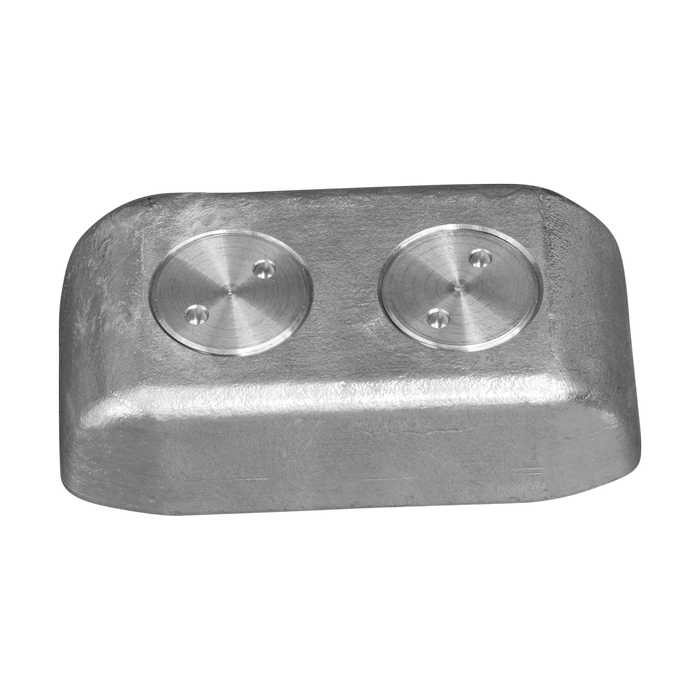

Tecnoseal 00217 MMI Zinc Oval Hull Anode without Insert with Zinc Plugs 150x80x40 mm
The Tecnoseal 00217 is an oval zinc sacrificial hull anode from the MMI series. It is manufactured without a separate insert and features zinc plugs for the mounting openings.
The anode measures 150 × 80 × 40 mm and has two Ø14.5 mm mounting holes spaced 60 mm centre to centre. The catalogue specifies an additional Ø1 dimension of 40 × 3 mm. Its weight is 2.70 kg (5.95 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00217
- Series: MMI
- Product Type: Oval sacrificial hull anode without insert
- Material: Zinc
- Construction: Without insert, with zinc plugs
- Dimensions: 150 × 80 × 40 mm
- Mounting Holes: 2
- Hole Spacing: 60 mm
- Mounting Hole Diameter: Ø14.5 mm
- Catalogue Ø1 Dimension: 40 × 3 mm
- Weight: 2.70 kg / 2700 g
- EAN: 8033837060406
Technical Specifications
Parameter Specification Tecnoseal Code 00217 Material Zinc Length (l) 150 mm / 5.91 in Width (a) 80 mm / 3.15 in Height (h) 40 mm / 1.57 in Hole Spacing (i) 60 mm / 2.36 in Mounting Hole Diameter (Ø) 14.5 mm / 0.57 in Catalogue Ø1 Dimension 40 × 3 mm / 1.57 × 0.12 in Weight 2.70 kg / 5.95 lbs EAN 8033837060406
Marine Hull Application
The Tecnoseal 00217 is intended for marine hull installations requiring an oval zinc sacrificial anode with the specified dimensions and mounting configuration.
The zinc material helps protect electrically connected metallic components against galvanic corrosion.
Mounting and Replacement
The anode has two Ø14.5 mm mounting holes spaced 60 mm centre to centre. Its construction includes zinc plugs and does not use a separate insert.
Before ordering, compare the body dimensions, mounting hole diameter and hole spacing with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00217 MMI zinc oval sacrificial anode with zinc plugs.
-
