ID
1406244
$ 249.85
1-2 weeks delivery time
-
+

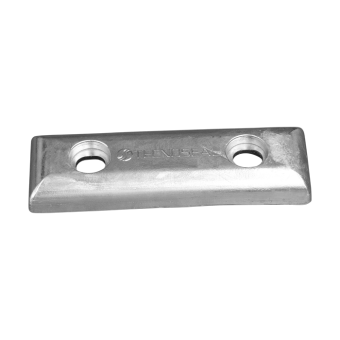

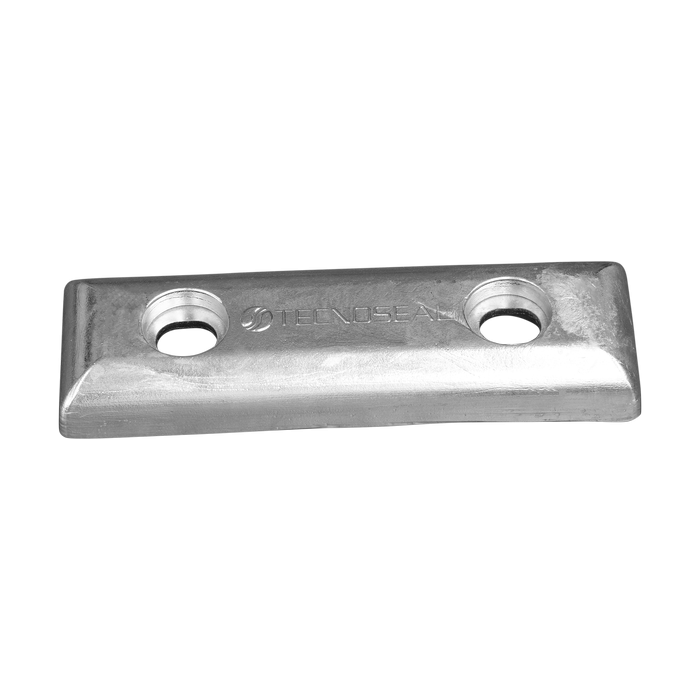

The Tecnoseal 00244 is a rectangular zinc sacrificial plate anode with insert for marine hull and transom applications. Part of the HC 140-160 series, it measures 290 × 90 × 36 mm and features two elongated mounting holes measuring 22 × 30 mm, spaced 160 mm centre to centre. The anode weighs 5.10 kg (11.24 lbs) and is intended for galvanic corrosion protection of electrically connected metallic marine components.
- Description
- Ask a Question
-
Tecnoseal 00244 Zinc Hull and Transom Plate Anode with Insert 290x90x36 mm
The Tecnoseal 00244 is a rectangular zinc sacrificial plate anode with insert for marine hull and transom applications. It belongs to the HC 140-160 series and helps protect electrically connected metallic components against galvanic corrosion.
The anode measures 290 × 90 × 36 mm and features two elongated mounting holes measuring 22 × 30 mm. The mounting holes are spaced 160 mm centre to centre. The anode weighs 5.10 kg (11.24 lbs).
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00244
- Product Type: Rectangular sacrificial plate anode with insert
- Series: HC 140-160
- Material: Zinc
- Application: Marine hull and transom
- Dimensions: 290 × 90 × 36 mm
- Mounting Holes: 2 elongated openings
- Hole Spacing: 160 mm
- Mounting Hole Dimensions: 22 × 30 mm
- Weight: 5.10 kg / 5100 g
- EAN: 8033837068396
Technical Specifications
Parameter Specification Tecnoseal Code 00244 Material Zinc Length (l) 290 mm / 11.42 in Width (a) 90 mm / 3.54 in Height (h) 36 mm / 1.42 in Mounting Hole Spacing (i) 160 mm / 6.30 in Mounting Hole Dimensions (Ø) 22 × 30 mm / 0.87 × 1.18 in Weight 5.10 kg / 11.24 lbs EAN 8033837068396
Hull and Transom Application
The Tecnoseal 00244 is designed for marine hull and transom installations requiring a rectangular zinc plate anode with two elongated mounting openings.
The zinc material acts as a sacrificial element, helping protect electrically connected metallic components against galvanic corrosion.
Mounting Configuration
The plate features two elongated mounting holes measuring 22 × 30 mm, with a centre-to-centre spacing of 160 mm.
Before ordering, compare the overall dimensions and mounting configuration with the existing anode.
Inspection and Replacement
Inspect the anode periodically for material loss and replace it when sufficiently consumed.
For replacement selection, confirm the 290 × 90 × 36 mm dimensions, 160 mm mounting hole spacing and 22 × 30 mm mounting openings.
Supply: One Tecnoseal 00244 zinc sacrificial plate anode with insert.
-
