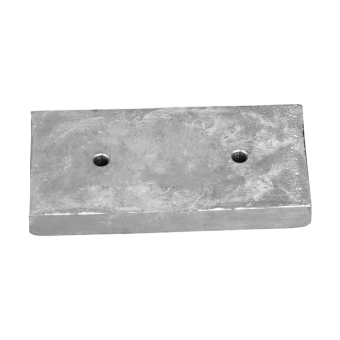

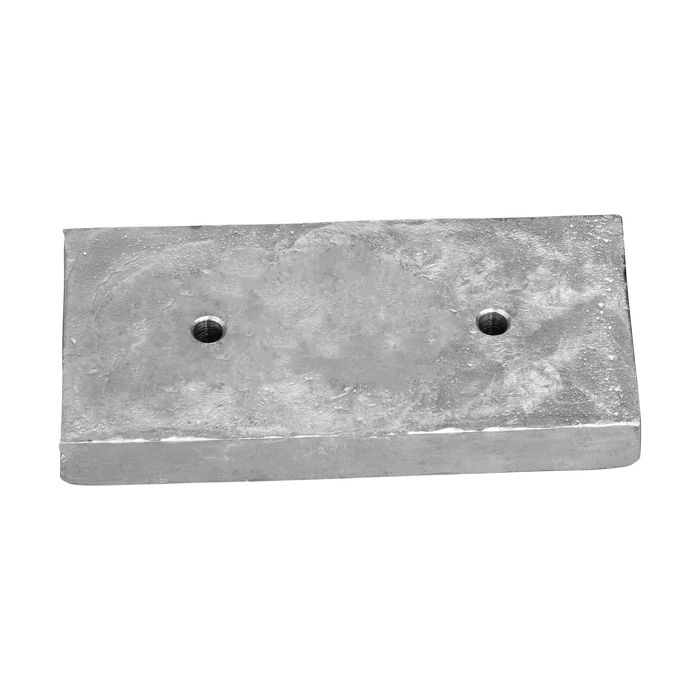

Tecnoseal Hull and Transom Plate Anodes without Insert

Name: Tecnoseal Hull and Transom Plate Anodes without Insert
SKU: Tecnoseal 00241

ID 1406262

$ 171.16

1-2 weeks delivery time

Type:

Zinc
Aluminium

Size:

200x100x25
220x100x30
400x80x30
300x150x26

Item:

3400 g
7000 g
4380 g
8000 g HC125
3140 g HC125
8130 g HC152

Tecnoseal rectangular sacrificial plate anodes without inserts for marine hull and transom applications. Available in zinc and aluminium, with six product variants covering five mounting and size configurations. Plate dimensions range from 200 × 100 × 25 mm to 400 × 80 × 30 mm, with two Ø10.5 mm mounting holes and centre-to-centre spacing from 100 to 250 mm. Individual weights range from 3.14 to 8.13 kg. Select the required anode according to its dimensions, mounting hole spacing and material.

Description
Ask a Question

Tecnoseal Hull and Transom Plate Anodes without Insert – Zinc & Aluminium, Multiple Sizes

The Tecnoseal rectangular plate anodes without inserts are sacrificial anodes for marine hull and transom applications. This product range includes zinc and aluminium versions in different sizes and mounting configurations.

Each plate has two mounting holes with a diameter of 10.5 mm. The centre-to-centre mounting distance varies from 100 to 250 mm depending on the selected model. All dimensions and weights are listed below.

Key Features

Manufacturer: Tecnoseal
Product Type: Rectangular sacrificial plate anode without insert
Application: Marine hull and transom
Available Materials: Zinc, Aluminium
Construction: Plate without insert
Mounting: Two through-holes
Mounting Hole Diameter: 10.5 mm
Mounting Hole Spacing: 100–250 mm depending on model
Available Weights: 3.14–8.13 kg

Technical Specifications by Model

Product Code	Material	Dimensions (mm)	Hole Spacing	Weight
00241	Zinc	200 × 100 × 25	100 mm	3.40 kg
00237	Zinc	220 × 100 × 30	120 mm	4.38 kg
00233	Zinc	400 × 80 × 30	250 mm	7.00 kg
00255	Zinc	300 × 150 × 26	125 mm	8.00 kg
00255AL	Aluminium	300 × 150 × 26	125 mm	3.14 kg
00255-6	Zinc	300 × 150 × 26	152 mm	8.13 kg

Available Models

Tecnoseal 00241: Zinc plate measuring 200 × 100 × 25 mm, with Ø10.5 mm mounting holes spaced 100 mm centre to centre. Weight: 3.40 kg.

Tecnoseal 00237: Zinc plate measuring 220 × 100 × 30 mm, with Ø10.5 mm mounting holes spaced 120 mm centre to centre. Weight: 4.38 kg.

Tecnoseal 00233: Zinc plate measuring 400 × 80 × 30 mm, with Ø10.5 mm mounting holes spaced 250 mm centre to centre. Weight: 7.00 kg.

Tecnoseal 00255: Zinc plate measuring 300 × 150 × 26 mm, with Ø10.5 mm mounting holes spaced 125 mm centre to centre. Weight: 8.00 kg. The Tecnoseal catalogue also references code 02514 for this model.

Tecnoseal 00255AL: Aluminium plate measuring 300 × 150 × 26 mm, with Ø10.5 mm mounting holes spaced 125 mm centre to centre. Weight: 3.14 kg.

Tecnoseal 00255-6: Zinc plate measuring 300 × 150 × 26 mm, with Ø10.5 mm mounting holes spaced 152 mm centre to centre. Weight: 8.13 kg.

Hull and Transom Application

These sacrificial plate anodes are used in marine hull and transom installations to help protect electrically connected metallic components against galvanic corrosion.

Select the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.

Mounting and Replacement

All models have two Ø10.5 mm mounting holes. The mounting hole spacing differs between models and must be checked before ordering.

In particular, the 00255 and 00255-6 zinc versions share the same external dimensions but have different mounting distances: 125 mm and 152 mm respectively.

Compare the plate dimensions, mounting hole spacing and material with the existing anode before replacement. Inspect sacrificial anodes periodically and replace them when sufficiently consumed.

Supply: One Tecnoseal rectangular sacrificial plate anode without insert in the selected size and material.
