The Tecnoseal 00670 is a zinc sacrificial bar anode for fast boat hull applications, measuring 770 × 50 × 13 mm and weighing 3.30 kg (7.28 lbs). It features four Ø10.5 mm mounting holes arranged along the bar, with catalogue hole spacing dimensions of i = 175 mm, i1 = 145 mm and i2 = 230 mm. The long rectangular design is intended for marine installations requiring this specific mounting configuration.
- Description
- Ask a Question
-

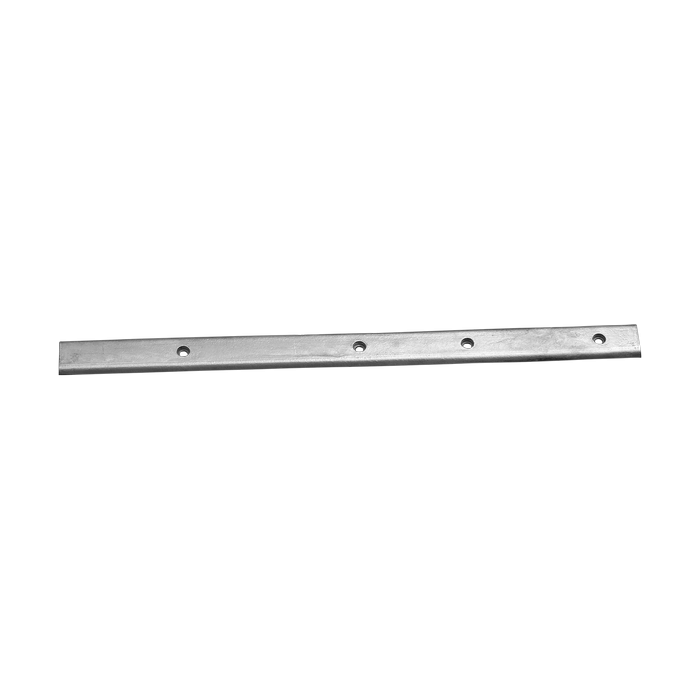

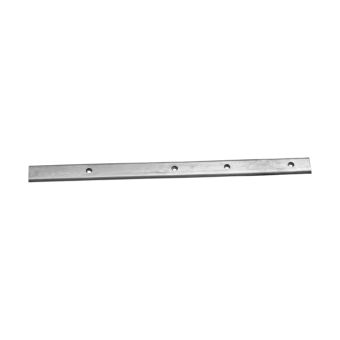

Tecnoseal 00670 Zinc Fast Boat Hull Bar Anode 770x50x13 mm – 4 Holes
The Tecnoseal 00670 is a zinc sacrificial bar anode from the Fast Boats Bars range. It is designed for marine hull installations requiring a long rectangular anode with four mounting holes.
The anode measures 770 × 50 × 13 mm and weighs 3.30 kg (7.28 lbs). Its four mounting holes have a diameter of 10.5 mm, with three spacing dimensions specified in the manufacturer's drawing.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00670
- Product Type: Sacrificial bar anode
- Series: Fast Boats Bars
- Material: Zinc
- Application: Fast boat hull corrosion protection
- Dimensions: 770 × 50 × 13 mm
- Mounting Holes: 4
- Mounting Hole Diameter: 10.5 mm
- Weight: 3.30 kg / 7.28 lbs
- EAN: 8033837063735
Technical Specifications
Parameter Specification Product Code 00670 Material Zinc Length (l) 770 mm / 30.31 in Width (a) 50 mm / 1.97 in Height (h) 13 mm / 0.51 in Mounting Dimension (i) 175 mm / 6.89 in Mounting Dimension (i1) 145 mm / 5.71 in Mounting Dimension (i2) 230 mm / 9.06 in Mounting Hole Diameter (Ø) 10.5 mm / 0.41 in Number of Holes 4 Weight 3.30 kg / 7.28 lbs EAN 8033837063735
Mounting Configuration
The Tecnoseal 00670 has four mounting holes arranged along the 770 mm bar. The manufacturer's drawing identifies three mounting distances:
- i: 175 mm
- i1: 145 mm
- i2: 230 mm
- Hole Diameter: Ø10.5 mm
Check the complete hole arrangement and dimensions against the existing installation before ordering.
Marine Application
The zinc anode provides sacrificial corrosion protection for electrically connected metallic marine components when installed with proper electrical contact.
The Tecnoseal 00670 is intended for fast boat hull installations requiring its specified dimensions and four-hole mounting arrangement.
Supply
One Tecnoseal 00670 zinc sacrificial bar anode.
-
