ID
1406357
$ 171.16
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 860 g
- 3400 g
- 1330 g

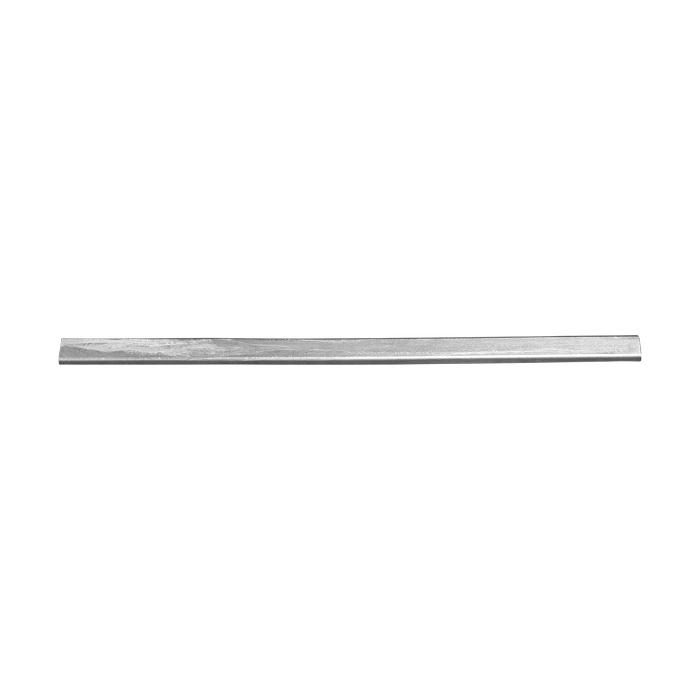

Tecnoseal 00650 series sacrificial anode strips for fast boats and hydrofoil applications, available in zinc (00650), aluminium (00650-1) and magnesium (00650MG). All three versions measure 900 × 45 × 12.5 mm (35.43 × 1.77 × 0.49 inches) and have a long, narrow rectangular profile. Catalogue weights are 3.40 kg for zinc, 1.33 kg for aluminium and 0.86 kg for magnesium. The anodes are intended for marine corrosion protection, with material selection depending on the vessel's operating water conditions and corrosion protection system.
- Description
- Ask a Question
-

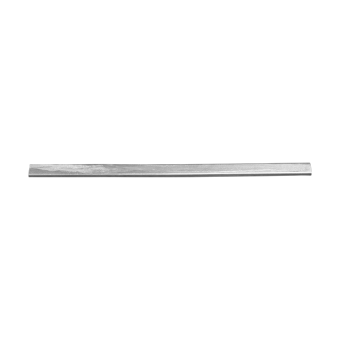

Tecnoseal 00650 Fast Boat Hydrofoil Anode Strip 900x45x12.5 mm – Zinc, Aluminium & Magnesium
The Tecnoseal 00650 series consists of long, rectangular sacrificial anode strips listed in the manufacturer's Fast Boats Bars range for hydrofoil applications. The anodes are available in three materials: zinc, aluminium and magnesium.
All versions share the same dimensions of 900 × 45 × 12.5 mm. The main differences are the anode material and weight.
Key Features
- Manufacturer: Tecnoseal
- Product Series: Fast Boats Bars
- Product Type: Sacrificial anode strip
- Application: Fast boats and hydrofoils
- Available Materials: Zinc, Aluminium, Magnesium
- Length: 900 mm
- Width: 45 mm
- Thickness: 12.5 mm
- Available Models: 00650, 00650-1, 00650MG
Technical Specifications
Parameter Specification Length (l) 900 mm / 35.43 in Width (a) 45 mm / 1.77 in Thickness (h) 12.5 mm / 0.49 in Shape Long rectangular strip Available Materials Zinc, Aluminium, Magnesium
Available Models
Product Code Material Weight EAN 00650 Zinc 3.40 kg / 7.50 lbs 8033837063711 00650-1 Aluminium 1.33 kg / 2.93 lbs 8059617813253 00650MG Magnesium 0.86 kg / 1.90 lbs 8059617813260
Material Options
Tecnoseal 00650 – Zinc: Zinc sacrificial anode strip measuring 900 × 45 × 12.5 mm. Weight: 3.40 kg (7.50 lbs).
Tecnoseal 00650-1 – Aluminium: Aluminium sacrificial anode strip with the same dimensions. Weight: 1.33 kg (2.93 lbs).
Tecnoseal 00650MG – Magnesium: Magnesium sacrificial anode strip with the same dimensions. Weight: 0.86 kg (1.90 lbs).
Marine Application
The Tecnoseal 00650 series is listed for fast boat and hydrofoil applications. The sacrificial anode material helps protect electrically connected metallic marine components against galvanic corrosion when installed as part of a compatible corrosion protection system.
Select zinc, aluminium or magnesium according to the vessel's operating water conditions and existing corrosion protection requirements.
Installation and Replacement
Before ordering, check the required anode material and dimensions against the existing installation.
Ensure proper electrical contact between the sacrificial anode and the metallic component being protected. Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00650 series sacrificial anode strip in the selected material.
-
