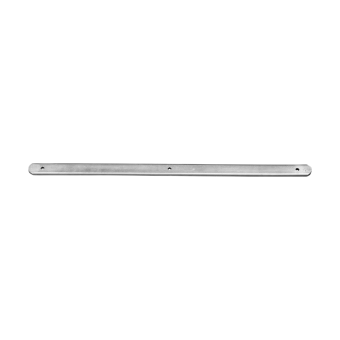

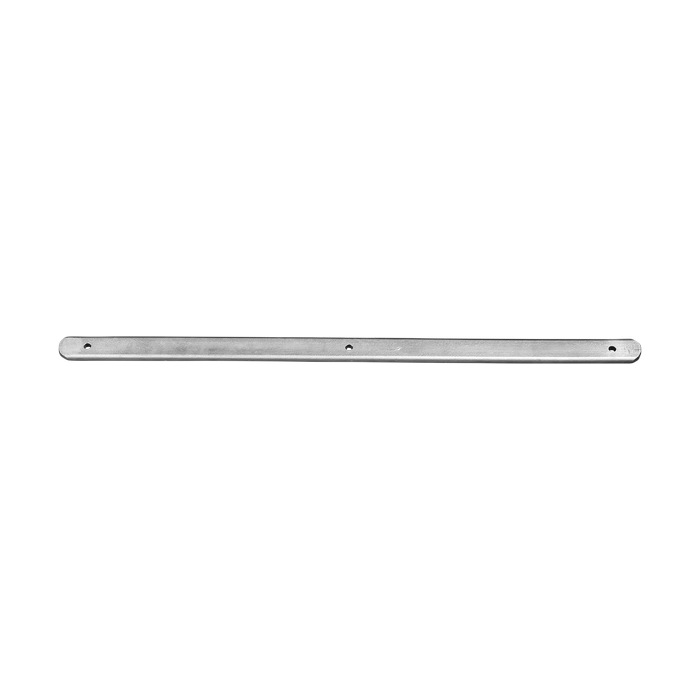

Tecnoseal Fast Boat Bar Anodes 880–1000 mm

Name: Tecnoseal Fast Boat Bar Anodes 880–1000 mm
SKU: Tecnoseal 00660

ID 1406346

$ 217.89

1-2 weeks delivery time

Type:

Zinc
Magnesium

Size:

1000x50x13
880x48x11

Item:

1000 g
3000 g
4200 g

Tecnoseal 00660 and 00661 series sacrificial bar anodes for fast boat hull applications, available in zinc and magnesium. The range includes 1000 × 50 × 13 mm bars with 450 mm mounting spacing, a 1000 × 50 × 10 mm zinc version, and an 880 × 48 × 11 mm zinc bar with 380 mm mounting spacing. Mounting hole diameters are Ø12 mm for the 00660 models and Ø9 mm for 00661. Catalogue weights range from 1.00 to 4.20 kg, depending on material and dimensions. Select the appropriate model according to the existing anode's size and mounting configuration.

Description
Ask a Question

Tecnoseal 00660 / 00661 Fast Boat Bar Anodes 880–1000 mm – Zinc & Magnesium

The Tecnoseal 00660 and 00661 series includes long sacrificial bar anodes for fast boat hull applications. Four versions are available, differing in material, length, thickness, mounting spacing and weight.

The range includes zinc and magnesium models with lengths of 880 mm or 1000 mm. The narrow bar design is suitable for marine installations requiring the specified mounting arrangement.

Key Features

Manufacturer: Tecnoseal
Product Type: Fast boat sacrificial bar anode
Available Materials: Zinc, Magnesium
Application: Fast boat hull corrosion protection
Available Models: 00660, 00660MG, 00660-1, 00661
Length: 880 or 1000 mm
Mounting Hole Spacing: 380 or 450 mm
Mounting Hole Diameter: 9 or 12 mm
Weight Range: 1.00–4.20 kg

Technical Specifications

Product Code	Material	Dimensions (L × W × H)	Hole Spacing (i)	Hole Ø	Weight
00660	Zinc	1000 × 50 × 13 mm	450 mm	12 mm	4.20 kg
00660MG	Magnesium	1000 × 50 × 13 mm	450 mm	12 mm	1.00 kg
00660-1	Zinc	1000 × 50 × 10 mm	Not specified separately	Not specified separately	3.90 kg
00661	Zinc	880 × 48 × 11 mm	380 mm	9 mm	3.00 kg

Available Models

Tecnoseal 00660: Zinc fast boat bar anode measuring 1000 × 50 × 13 mm, with 450 mm mounting spacing and Ø12 mm mounting holes. Weight: 4.20 kg (9.26 lbs).

Tecnoseal 00660MG: Magnesium fast boat bar anode measuring 1000 × 50 × 13 mm, with 450 mm mounting spacing and Ø12 mm mounting holes. Weight: 1.00 kg (2.20 lbs).

Tecnoseal 00660-1: Zinc fast boat bar anode measuring 1000 × 50 × 10 mm. Weight: 3.90 kg (8.60 lbs). Check the mounting arrangement against the existing anode before ordering.

Tecnoseal 00661: Zinc fast boat bar anode measuring 880 × 48 × 11 mm, with 380 mm mounting spacing and Ø9 mm mounting holes. Weight: 3.00 kg (6.61 lbs).

Marine Application

These Tecnoseal sacrificial bar anodes are intended for fast boat hull applications where long, narrow anodes are required.

The zinc and magnesium materials provide options for different operating water conditions and compatible corrosion protection systems.

Mounting and Replacement

Before ordering, verify the overall dimensions, mounting hole diameter and centre-to-centre spacing.

The 00660 and 00660MG versions share the same dimensions and mounting configuration. Model 00660-1 has a reduced thickness of 10 mm, while 00661 has a shorter 880 mm body and 380 mm mounting spacing.

Inspect the sacrificial anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal fast boat sacrificial bar anode in the selected size and material.
