ID
1406363
$ 208.40
1-2 weeks delivery time
-
+
The Tecnoseal 00268E is a zinc bolt-on sacrificial bar anode for marine hull corrosion protection. It measures 400 × 60 × 30 mm and weighs 3.70 kg (8.16 lbs). The anode features three mounting openings measuring 13 × 30 mm, with 145 mm centre-to-centre spacing between adjacent mounting positions. Additional catalogue dimensions include an 8 mm edge thickness, Ø1 = 35 mm and Ø2 = 36 mm. Its elongated profile has rounded ends and a three-hole mounting arrangement.
- Description
- Ask a Question
-

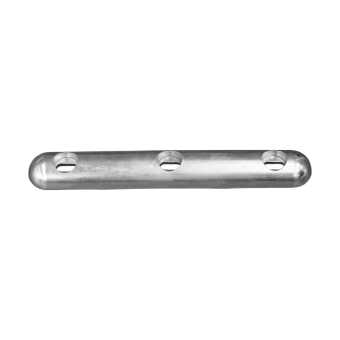

Tecnoseal 00268E Zinc Hull Bar Anode 400x60x30 mm – 3 Mounting Holes
The Tecnoseal 00268E is a zinc sacrificial bar anode from the manufacturer's Bar with 3 Holes range. It is designed for bolt-on mounting in marine hull corrosion protection systems.

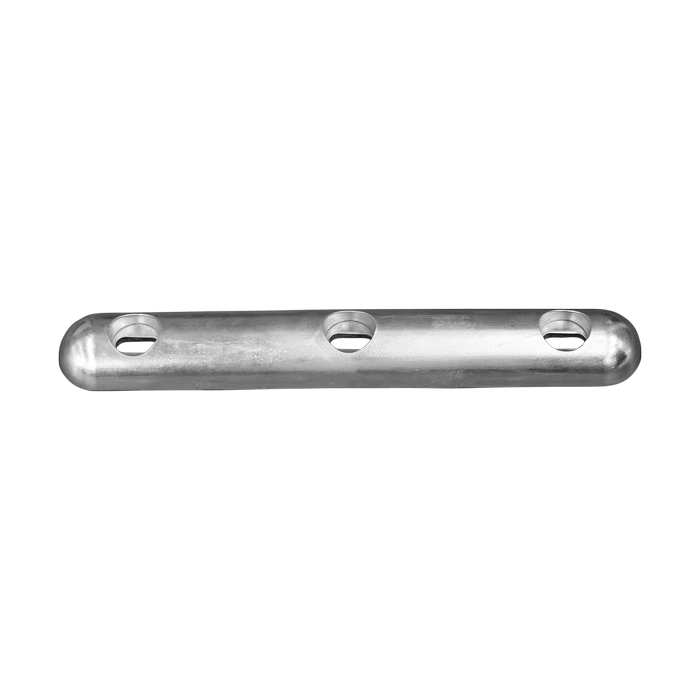

The anode measures 400 × 60 × 30 mm, weighs 3.70 kg (8.16 lbs) and features three mounting positions spaced 145 mm apart. The body has an elongated shape with rounded ends.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00268E
- Product Type: Bolt-on sacrificial bar anode
- Material: Zinc
- Application: Hull and transom corrosion protection
- Overall Dimensions: 400 × 60 × 30 mm
- Number of Mounting Holes: 3
- Mounting Hole Spacing: 145 mm between adjacent holes
- Mounting Opening Dimensions (Ø): 13 × 30 mm
- Additional Dimensions: Ø1 = 35 mm, Ø2 = 36 mm
- Edge Thickness (b): 8 mm
- Weight: 3.70 kg (8.16 lbs)
- EAN: 8033837060819
Technical Specifications
Parameter Specification Product Code 00268E Material Zinc Length (l) 400 mm / 15.75 in Width (a) 60 mm / 2.36 in Height (h) 30 mm / 1.18 in Edge Thickness (b) 8 mm / 0.31 in Adjacent Hole Spacing (i) 145 mm / 5.71 in Mounting Opening (Ø) 13 × 30 mm / 0.51 × 1.18 in Dimension (Ø1) 35 mm / 1.38 in Dimension (Ø2) 36 mm / 1.42 in Weight 3.70 kg / 8.16 lbs EAN 8033837060819
Mounting Configuration
The Tecnoseal 00268E features three mounting positions along the bar. The manufacturer's drawing specifies 145 mm spacing between adjacent mounting positions and mounting openings measuring 13 × 30 mm.
The total distance between the centres of the two outer mounting positions is 290 mm.
Before ordering, compare the dimensions and three-hole mounting arrangement with the existing anode.
Marine Application
The zinc anode provides sacrificial corrosion protection for electrically connected metallic marine components when installed as part of a compatible corrosion protection system.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply
One Tecnoseal 00268E zinc sacrificial bar anode.
-
