ID
1406342
$ 93.53
1-2 weeks delivery time
Type:
- Zinc
- Magnesium
- Aluminium
Item:
- 1850 g
- 470 g
- 820 g
The Tecnoseal 00230 series consists of streamlined bolt-on sacrificial bar anodes for fast boat hull applications, available in zinc (00230), aluminium (00230/AL) and magnesium (00230MG). All versions measure 210 × 70 × 27 mm and have a mounting hole centre distance of 80 mm. The catalogue specifies 18 × 25 mm mounting openings and additional dimensions Ø1 = 32 mm, Ø2 = 34 mm and Ø3 = 25 mm. The zinc version weighs 1.85 kg, aluminium 0.82 kg and magnesium 0.47 kg. Select the material to suit the vessel's corrosion protection system and operating water conditions.
- Description
- Ask a Question
-

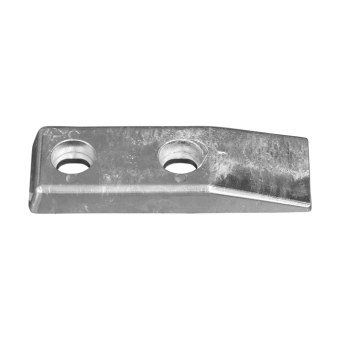

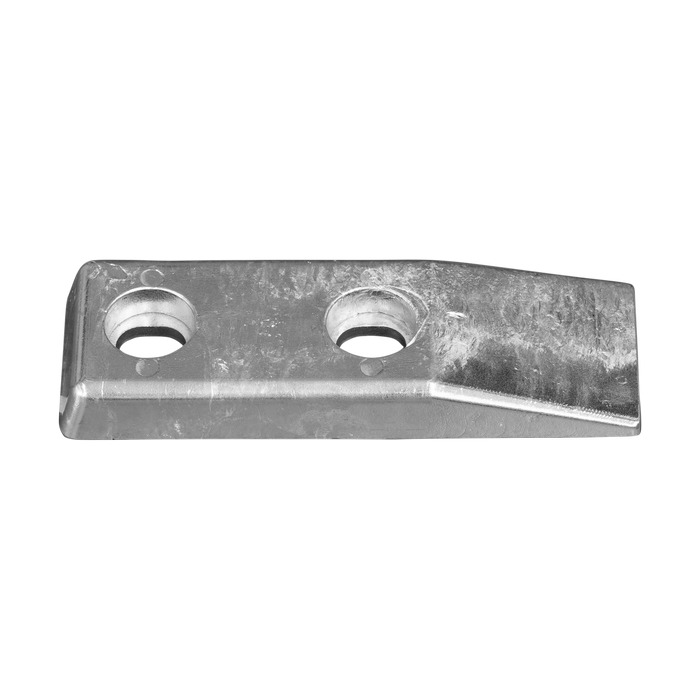

Tecnoseal 00230 Fast Boat Hull Bar Anode 210x70x27 mm HC80 – Zinc, Aluminium & Magnesium
The Tecnoseal 00230 series includes streamlined sacrificial bar anodes designed for fast boat hull applications. Three material versions are available: zinc (00230), aluminium (00230/AL) and magnesium (00230MG).
All three models measure 210 × 70 × 27 mm and share the same mounting configuration, including an 80 mm centre-to-centre distance and 18 × 25 mm mounting openings.
Key Features
- Manufacturer: Tecnoseal
- Product Series: Fast Boats Bars
- Product Type: Streamlined bolt-on sacrificial anode
- Application: Fast boat hull corrosion protection
- Available Materials: Zinc, Aluminium, Magnesium
- Dimensions: 210 × 70 × 27 mm
- Mounting Hole Spacing: 80 mm
- Mounting Opening Dimensions: 18 × 25 mm
- Additional Dimensions: Ø1 = 32 mm, Ø2 = 34 mm, Ø3 = 25 mm
Technical Specifications
Parameter Specification Length (l) 210 mm / 8.27 in Width (a) 70 mm / 2.76 in Height (h) 27 mm / 1.06 in Mounting Hole Spacing (i) 80 mm / 3.15 in Mounting Opening (Ø) 18 × 25 mm / 0.71 × 0.98 in Dimension (Ø1) 32 mm / 1.26 in Dimension (Ø2) 34 mm / 1.34 in Dimension (Ø3) 25 mm / 0.98 in
Available Models
Product Code Material Weight EAN 00230 Zinc 1.85 kg / 4.08 lbs 8033837060512 00230/AL Aluminium 0.82 kg / 1.81 lbs 8059617810436 00230MG Magnesium 0.47 kg / 1.04 lbs 8059617810443
Marine Application
The Tecnoseal 00230 series is intended for marine installations requiring a streamlined sacrificial anode with the specified mounting configuration.
The zinc, aluminium and magnesium versions provide material options for different operating water conditions and compatible corrosion protection systems.
Mounting and Replacement
All three models share the same mounting dimensions, including 80 mm hole spacing and 18 × 25 mm openings.
Before ordering, compare the overall dimensions, mounting hole arrangement and material with the existing anode.
Ensure proper electrical contact with the component being protected. Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00230 series sacrificial bar anode in the selected material.
-
