Tecnoseal Fast Boat Hull Bar Anodes – Zinc & Aluminium, 4 Holes

Name: Tecnoseal Fast Boat Hull Bar Anodes – Zinc & Aluminium, 4 Holes
SKU: Tecnoseal 00671

ID 1406351

$ 166.03

1-2 weeks delivery time

Type:

Zinc
Aluminium

Size:

400x42x20
395x40x25

Item:

800 g
1900 g
2300 g Steel Insert
1000 g Steel Insert

Tecnoseal 00671 and 00246 series sacrificial bar anodes for fast boat hull applications, available in zinc and aluminium. Models 00671 and 00671AL measure 400 × 42 × 20 mm, with Ø11 mm mounting holes, 150 mm outer mounting intervals and a 50 mm central interval. Models 00246 and 00246AL feature a steel insert, measure 395 × 40 × 25 mm and have Ø10.5 mm mounting holes with 150 mm outer mounting intervals and a 52 mm central interval. All versions feature four mounting holes. Weights range from 0.80 to 2.30 kg, depending on the material and model.

Description
Ask a Question

Tecnoseal 00671 / 00246 Fast Boat Hull Bar Anodes – Zinc & Aluminium, 4 Holes

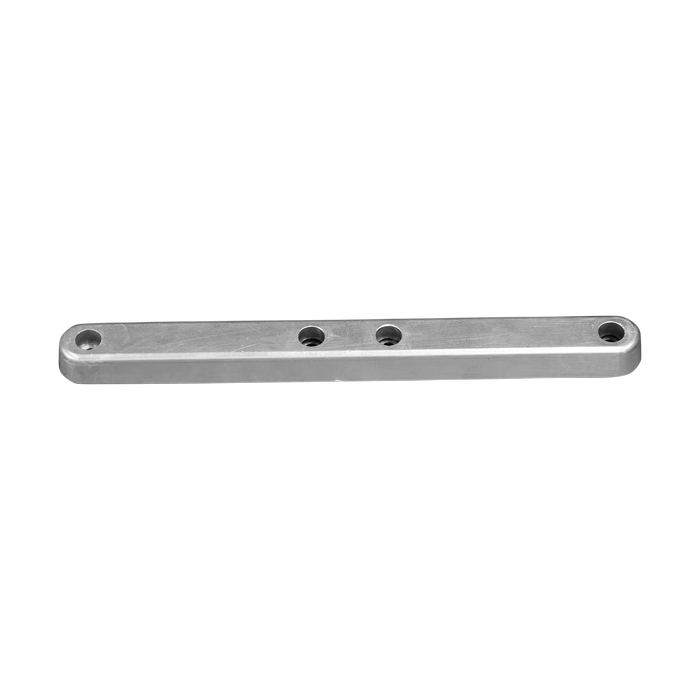

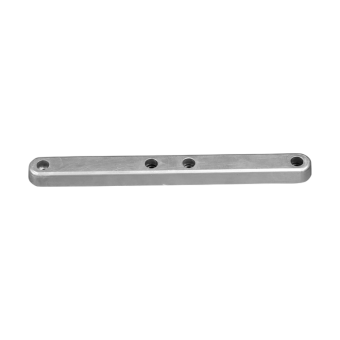

The Tecnoseal 00671 and 00246 series includes sacrificial bar anodes for fast boat hull applications. The range comprises four variants manufactured from zinc or aluminium, with different dimensions and mounting arrangements.

Models 00671 and 00671AL have dimensions of 400 × 42 × 20 mm. Models 00246 and 00246AL measure 395 × 40 × 25 mm and are supplied with a steel insert.

Key Features

Manufacturer: Tecnoseal
Product Type: Fast boat sacrificial bar anode
Available Materials: Zinc, Aluminium
Application: Fast boat hull corrosion protection
Available Models: 00671, 00671AL, 00246, 00246AL
Mounting: Four mounting holes
Hole Diameter: 11 mm or 10.5 mm, depending on model
Steel Insert: Included in 00246 and 00246AL versions

Technical Specifications

Product Code	Material	Dimensions (L × W × H)	Mounting i / i1	Hole Ø	Weight
00671	Zinc	400 × 42 × 20 mm	150 / 50 mm	11 mm	1.90 kg
00671AL	Aluminium	400 × 42 × 20 mm	150 / 50 mm	11 mm	0.80 kg
00246	Zinc	395 × 40 × 25 mm	150 / 52 mm	10.5 mm	2.30 kg
00246AL	Aluminium	395 × 40 × 25 mm	150 / 52 mm	10.5 mm	1.00 kg

Available Models

Tecnoseal 00671: Zinc sacrificial bar anode measuring 400 × 42 × 20 mm. Mounting dimensions are i = 150 mm, i1 = 50 mm and Ø = 11 mm. Weight: 1.90 kg (4.19 lbs).

Tecnoseal 00671AL: Aluminium version with the same 400 × 42 × 20 mm dimensions and mounting configuration. Weight: 0.80 kg (1.76 lbs).

Tecnoseal 00246: Zinc sacrificial bar anode with steel insert, measuring 395 × 40 × 25 mm. Mounting dimensions are i = 150 mm, i1 = 52 mm and Ø = 10.5 mm. Weight: 2.30 kg (5.07 lbs).

Tecnoseal 00246AL: Aluminium sacrificial bar anode with steel insert, measuring 395 × 40 × 25 mm, with the same mounting configuration as 00246. Weight: 1.00 kg (2.20 lbs).

Marine Application

These Tecnoseal sacrificial bar anodes are intended for fast boat hull installations requiring their specified dimensions and four-hole mounting configurations.

The zinc and aluminium versions provide material options for compatible marine corrosion protection systems.

Mounting and Replacement

Before ordering, compare the anode's overall dimensions, mounting hole diameter and hole spacing with the existing installation.

Important: Models 00246 and 00246AL feature a steel insert and have different dimensions and hole spacing from the 00671 versions. They should not be treated as interchangeable without checking the mounting arrangement.

Ensure proper electrical contact with the metal being protected. Inspect the sacrificial anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal sacrificial bar anode in the selected configuration.
