The Tecnoseal 00218 is a zinc sacrificial bar anode from the MMI series, designed for hull corrosion protection. It measures 500 × 85 × 40 mm and weighs 10.00 kg (22.05 lbs). The anode features three mounting holes with zinc plugs, a centre-to-centre spacing of 160 mm between adjacent holes, Ø15 mm through-holes and Ø40 mm recesses. Its elongated body with rounded ends is suitable for marine installations requiring this mounting configuration.
- Description
- Ask a Question
-

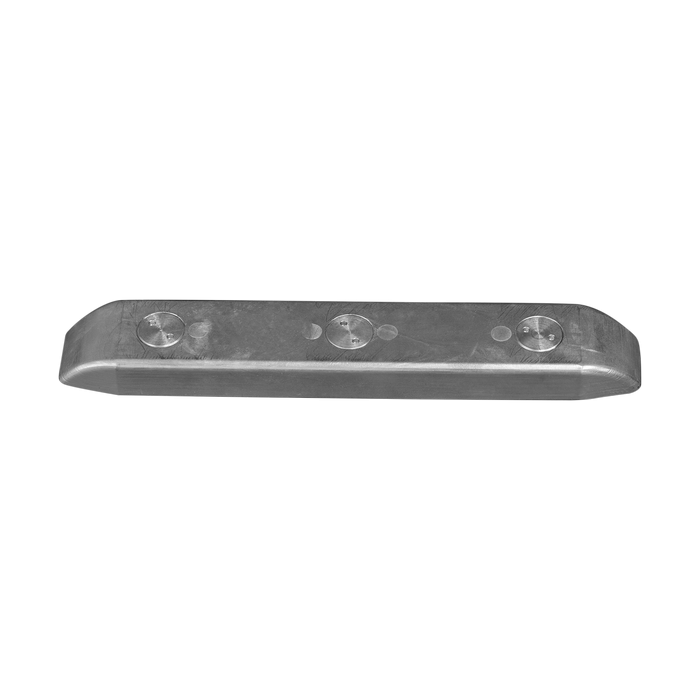

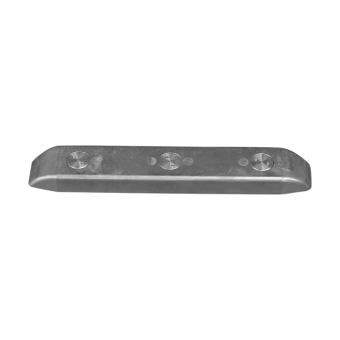

Tecnoseal 00218 MMI Zinc Hull Bar Anode with 3 Holes and Zinc Plugs 500x85x40 mm
The Tecnoseal 00218 is a zinc sacrificial bar anode from the MMI series, designed for marine hull corrosion protection. The anode has an elongated body with rounded ends and three mounting holes fitted with zinc plugs.
It measures 500 × 85 × 40 mm and weighs 10.00 kg (22.05 lbs). The centre-to-centre spacing between adjacent mounting holes is 160 mm.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00218
- Series: MMI
- Product Type: Bolt-on sacrificial bar anode
- Material: Zinc
- Application: Hull corrosion protection
- Dimensions: 500 × 85 × 40 mm
- Mounting Holes: 3
- Mounting Hole Spacing: 160 mm between adjacent holes
- Through-Hole Diameter (Ø): 15 mm
- Recess Diameter (Ø1): 40 mm
- Additional Feature: Zinc plugs
- Weight: 10.00 kg (22.05 lbs)
- EAN: 8033837060413
Technical Specifications
Parameter Specification Product Code 00218 Material Zinc Length (l) 500 mm / 19.69 in Width (a) 85 mm / 3.35 in Height (h) 40 mm / 1.57 in Mounting Hole Spacing (i) 160 mm / 6.30 in Through-Hole Diameter (Ø) 15 mm / 0.59 in Recess Diameter (Ø1) 40 mm / 1.57 in Number of Mounting Holes 3 Weight 10.00 kg / 22.05 lbs EAN 8033837060413
Mounting Configuration
The Tecnoseal 00218 has three mounting positions along its 500 mm body. The spacing between adjacent holes is 160 mm, giving a total centre-to-centre distance of 320 mm between the outer holes.
Each mounting position has a Ø15 mm through-hole and a Ø40 mm recess, as specified in the manufacturer's drawing.
The catalogue identifies this model as a bar with three holes and zinc plugs. Check the dimensions and mounting arrangement against the existing anode before ordering.
Marine Application
The zinc sacrificial anode is intended for corrosion protection of electrically connected metallic hull components in compatible marine installations.
Ensure proper electrical contact with the component being protected. Inspect the anode periodically and replace it when sufficiently consumed.
Supply
One Tecnoseal 00218 zinc sacrificial bar anode with three holes and zinc plugs.
-
