ID
1406361
$ 840.11
1-2 weeks delivery time
-
+

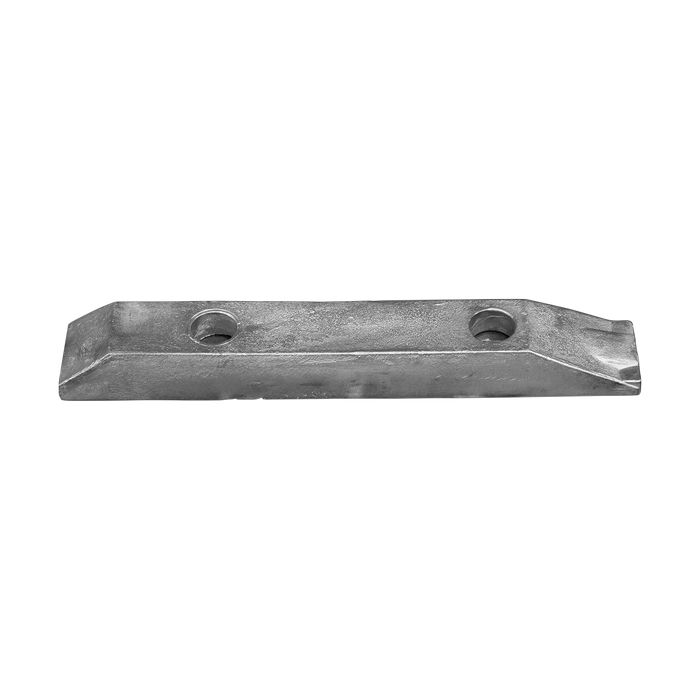

The Tecnoseal 00680 is a magnesium bolt-on sacrificial bar anode with an insert, designed for GDF Bigliani marine applications. It measures 505 × 81 × 50 mm and weighs 3.55 kg (7.83 lbs). The anode features two 25 × 15 mm mounting openings with a centre-to-centre distance of 240 mm. Its shaped bar profile and integrated insert provide the mounting configuration specified for the GDF Bigliani series.
- Description
- Ask a Question
-

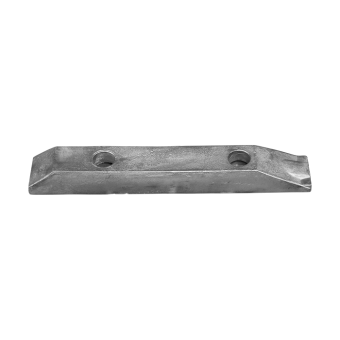

Tecnoseal 00680 GDF Bigliani Magnesium Bolt-On Bar Anode with Insert 505x81x50 mm HC240
The Tecnoseal 00680 is a magnesium sacrificial bar anode with an insert, listed in the manufacturer's GDF Bigliani series. It is intended for marine installations requiring this bar shape and mounting configuration.
The anode measures 505 × 81 × 50 mm, weighs 3.55 kg (7.83 lbs) and features two mounting openings measuring 25 × 15 mm, positioned 240 mm apart.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00680
- Series: GDF Bigliani
- Product Type: Bolt-on sacrificial bar anode with insert
- Material: Magnesium
- Application: Marine corrosion protection
- Dimensions: 505 × 81 × 50 mm
- Mounting Openings: 2
- Mounting Opening Size: 25 × 15 mm
- Mounting Hole Spacing: 240 mm
- Weight: 3.55 kg (7.83 lbs)
- EAN: 8033837063742
Technical Specifications
Parameter Specification Product Code 00680 Series GDF Bigliani Material Magnesium Length (l) 505 mm / 19.88 in Width (a) 81 mm / 3.19 in Height (h) 50 mm / 1.97 in Mounting Hole Spacing (i) 240 mm / 9.45 in Mounting Opening Size (Ø) 25 × 15 mm / 0.98 × 0.59 in Weight 3.55 kg / 7.83 lbs EAN 8033837063742
Mounting Configuration
The Tecnoseal 00680 features an insert and two mounting openings with a centre-to-centre distance of 240 mm. Each opening is specified as 25 × 15 mm in the manufacturer's catalogue.
Before ordering, check the overall dimensions, insert arrangement and mounting hole spacing against the existing anode.
Marine Application
The magnesium anode is used for sacrificial corrosion protection of electrically connected metallic components in compatible marine installations.
Magnesium anodes are generally selected for freshwater corrosion protection systems. Confirm the material is suitable for the vessel's operating water conditions before installation.
Supply
One Tecnoseal 00680 magnesium sacrificial bar anode with insert.
-
