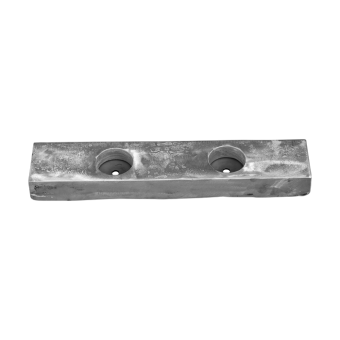

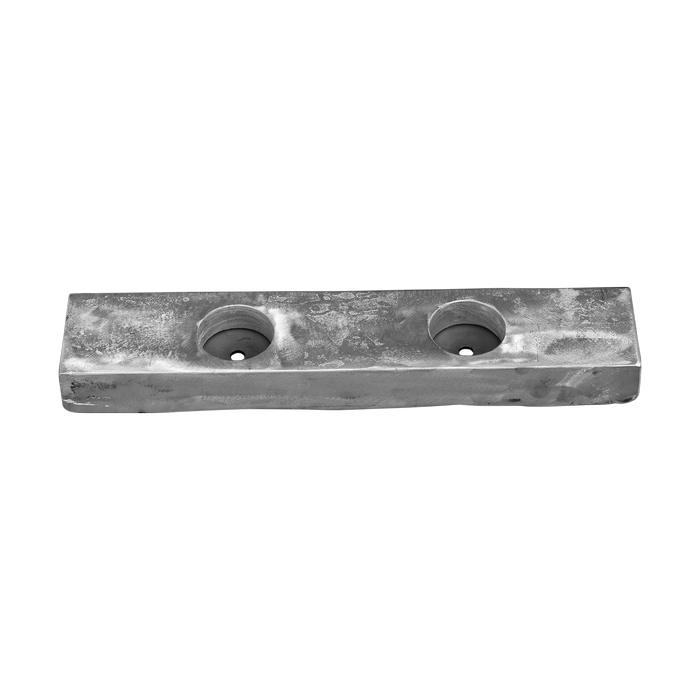

The Tecnoseal 00681 is a magnesium sacrificial bar anode with an insert for GDF Corrubbia II marine applications. It measures 590 × 120 × 60 mm and weighs 7.90 kg (17.42 lbs). The rectangular anode has two mounting holes with a diameter of 14.5 mm and a centre-to-centre spacing of 240 mm. It is intended for marine installations requiring this specific bar shape and mounting configuration.
- Description
- Ask a Question
-
Tecnoseal 00681 GDF Corrubbia II Magnesium Bolt-On Bar Anode with Insert 590x120x60 mm HC240
The Tecnoseal 00681 is a magnesium sacrificial bar anode with an insert from the GDF Corrubbia II series. It is designed for marine installations requiring a rectangular anode with two mounting holes.
The anode measures 590 × 120 × 60 mm, weighs 7.90 kg (17.42 lbs) and features two Ø14.5 mm mounting holes positioned 240 mm apart.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00681
- Series: GDF Corrubbia II
- Product Type: Bolt-on sacrificial bar anode with insert
- Material: Magnesium
- Application: Marine corrosion protection
- Dimensions: 590 × 120 × 60 mm
- Mounting Holes: 2
- Hole Diameter: 14.5 mm
- Mounting Hole Spacing: 240 mm
- Weight: 7.90 kg (17.42 lbs)
- EAN: 8033837063759
Technical Specifications
Parameter Specification Product Code 00681 Series GDF Corrubbia II Material Magnesium Length (l) 590 mm / 23.23 in Width (a) 120 mm / 4.72 in Height (h) 60 mm / 2.36 in Mounting Hole Spacing (i) 240 mm / 9.45 in Mounting Hole Diameter (Ø) 14.5 mm / 0.57 in Weight 7.90 kg / 17.42 lbs EAN 8033837063759
Mounting Configuration
The Tecnoseal 00681 features an insert and two mounting holes with a centre-to-centre spacing of 240 mm. The mounting hole diameter is 14.5 mm, according to the manufacturer's catalogue.
Before ordering, check the overall dimensions and mounting arrangement against the existing anode.
Marine Application
The magnesium material provides sacrificial corrosion protection for electrically connected metallic components in compatible marine installations.
Magnesium anodes are generally intended for freshwater corrosion protection systems. Confirm compatibility with the vessel's operating water conditions before installation.
Supply
One Tecnoseal 00681 magnesium sacrificial bar anode with insert.
-
