The Tecnoseal 00672 is a zinc sacrificial bar anode designed for fast boat hull corrosion protection. It measures 300 × 47 × 12.5 mm and weighs 1.20 kg (2.65 lbs). The rectangular anode features two mounting holes with a centre-to-centre distance of 150 mm, a Ø20 mm recess diameter and Ø9 mm through-holes. It is intended for marine installations requiring this specific bar shape and mounting configuration.
- Description
- Ask a Question
-

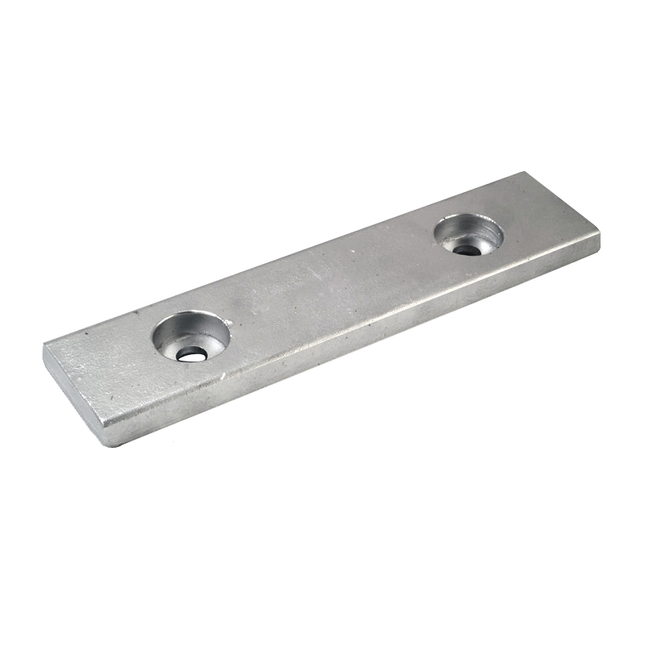

Tecnoseal 00672 Zinc Fast Boat Hull Bar Anode 300x47x12.5 mm HC150
The Tecnoseal 00672 is a zinc sacrificial bar anode from the Fast Boats Bars range, designed for corrosion protection of marine hull components.
The anode measures 300 × 47 × 12.5 mm and features two mounting holes positioned 150 mm apart. Each mounting position has a Ø9 mm through-hole and a Ø20 mm recess, as indicated in the manufacturer's drawing.
Key Features
- Manufacturer: Tecnoseal
- Product Code: 00672
- Product Type: Fast boat sacrificial bar anode
- Material: Zinc
- Application: Fast boat hull corrosion protection
- Shape: Rectangular bar
- Dimensions: 300 × 47 × 12.5 mm
- Number of Mounting Holes: 2
- Hole Centre Distance: 150 mm
- Recess Diameter (Ø): 20 mm
- Through-Hole Diameter (Ø1): 9 mm
- Weight: 1.20 kg (2.65 lbs)
- EAN: 8052744981932
Technical Specifications
Parameter Specification Product Code 00672 Material Zinc Length (l) 300 mm / 11.81 in Width (a) 47 mm / 1.85 in Height (h) 12.5 mm / 0.49 in Mounting Hole Spacing (i) 150 mm / 5.91 in Recess Diameter (Ø) 20 mm / 0.79 in Through-Hole Diameter (Ø1) 9 mm / 0.35 in Weight 1.20 kg / 2.65 lbs EAN 8052744981932
Mounting Configuration
The Tecnoseal 00672 has two mounting holes with a centre-to-centre distance of 150 mm. The mounting recess diameter is 20 mm, and the through-hole diameter is 9 mm.
Before ordering, compare the bar dimensions and mounting hole arrangement with the existing anode.
Marine Application
The zinc material provides sacrificial corrosion protection for electrically connected metallic marine components when installed with proper electrical contact.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal 00672 zinc fast boat bar anode.
-
