Tecnoseal Magnesium Standard Shaft Sacrificial Anodes, Shaft 19–80 mm

Name: Tecnoseal Magnesium Standard Shaft Sacrificial Anodes, Shaft 19–80 mm
SKU: Tecnoseal 00500MG

ID 1399711

$ 27.12

1-2 weeks delivery time

Shaft Diameter:

19
22
25
28
30
34
35
40
45
48
50
55
60
65
1-1/8"
1-1/4"
1-1/2"
2-1/4"
70
2-1/2"
75
80
1-3/4"
1"
2"
3"

Size:

56x58
66x65
76x82
88x93
110x100
107x128

Item:

160 g
250 g
420 g
270 g
140 g
110 g
90 g
430 g
650 g
600 g
130 g
100 g
290 g
120 g
350 g
260 g
220 g
230 g
690 g
640 g

Tecnoseal magnesium Standard Type shaft sacrificial anodes for marine shaft installations, available for metric and imperial shaft sizes from 19 mm / 3/4" up to 80 mm. The range includes models with 2 fastening holes for shaft sizes from 19 mm through 2" / 50.8 mm, and larger models with 4 fastening holes for shafts from 55 to 80 mm. Depending on the model, anode height ranges from 56 to 110 mm, overall diameter from Ø58 to Ø128 mm and magnesium anode weight from 0.09 to 0.69 kg. Bolts and nuts are available on request. Select the required Tecnoseal model according to shaft diameter, overall dimensions, fastening-hole configuration and weight.

Description
Ask a Question

Tecnoseal Magnesium Standard Shaft Sacrificial Anodes – 2 & 4 Fastening Holes, Shaft 19–80 mm

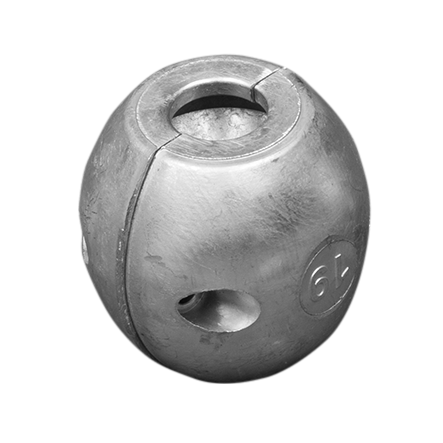

The Tecnoseal Magnesium Standard Shaft Anodes are Standard Type sacrificial shaft anodes available for metric and imperial shaft diameters from 19 mm / 3/4" up to 80 mm.

The smaller models from Tecnoseal 00500MG through 00514MG use a 2 fastening-hole configuration. Larger models from 00515MG through 00522MG use a 4 fastening-hole configuration. Bolts and nuts are available on request.

Depending on the selected model, anode height ranges from 56 to 110 mm, overall outside diameter from Ø58 to Ø128 mm and magnesium anode weight from 0.09 to 0.69 kg. The range includes both metric and imperial shaft sizes, including 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2" and 3" configurations.

Key Features

Brand: Tecnoseal
Type: Standard Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Magnesium
Shaft Size Range: 19 mm / 3/4" to 80 mm
Fastening: 2 fastening holes or 4 fastening holes depending on model
Bolts and Nuts: Available on request
Height Range: 56–110 mm
Overall Diameter Range: Ø58–128 mm
Weight Range: 0.09–0.69 kg

Standard Shaft Anodes – 2 Fastening Holes

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500MG	19 mm / 3/4"	0.13 kg / 130 g	56 mm	58 mm	19 mm
00501MG	22 mm / 7/8"	0.13 kg / 130 g	56 mm	58 mm	22 mm
00502MG	25 mm	0.10 kg / 100 g	56 mm	58 mm	25 mm
00503MG	1"	0.12 kg / 120 g	56 mm	58 mm	25.40 mm
00504MG	28 mm	0.11 kg / 110 g	56 mm	58 mm	28 mm
00505MG	1-1/8"	0.35 kg / 350 g	56 mm	58 mm	28.60 mm
00506MG	30 mm	0.10 kg / 100 g	56 mm	58 mm	30 mm
00507MG	1-1/4"	0.09 kg / 90 g	56 mm	58 mm	31.80 mm
00508MG	34 mm	0.14 kg / 140 g	66 mm	65 mm	34 mm
00509MG	35 mm	0.16 kg / 160 g	66 mm	65 mm	35 mm
00510MG	1-1/2"	0.13 kg / 130 g	66 mm	65 mm	38 mm
00511MG	40 mm	0.25 kg / 250 g	76 mm	82 mm	40 mm
00511MMG	1-3/4"	0.22 kg / 220 g	76 mm	82 mm	44.40 mm
00512MG	45 mm	0.25 kg / 250 g	76 mm	82 mm	45 mm
00512MMG	48 mm	0.26 kg / 260 g	76 mm	82 mm	48 mm
00513MG	50 mm	0.23 kg / 230 g	76 mm	82 mm	50 mm
00514MG	2"	0.29 kg / 290 g	76 mm	82 mm	50.80 mm

Standard Shaft Anodes – 4 Fastening Holes

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00515MG	55 mm	0.27 kg / 270 g	88 mm	93 mm	55 mm
00516MG	2-1/4"	0.25 kg / 250 g	88 mm	93 mm	57.10 mm
00517MG	60 mm	0.43 kg / 430 g	110 mm	100 mm	60 mm
00518MG	2-1/2"	0.42 kg / 420 g	110 mm	100 mm	63.50 mm
00519MG	65 mm	0.42 kg / 420 g	110 mm	100 mm	65 mm
00520MG	70 mm	0.69 kg / 690 g	107 mm	128 mm	70 mm
00521MG	75 mm	0.65 kg / 650 g	107 mm	128 mm	75 mm
00521MMG	3"	0.64 kg / 640 g	107 mm	128 mm	76.20 mm
00522MG	80 mm	0.60 kg / 600 g	107 mm	128 mm	80 mm

Fastening Configuration

00500MG–00514MG: 2 fastening holes
00515MG–00522MG: 4 fastening holes
Bolts and Nuts: Available on request

Dimensions for Model Selection

Shaft Size: Nominal shaft diameter for the selected anode
h: Overall anode height
Ø: Overall outside diameter
Ø1: Internal shaft opening diameter

For replacement selection, compare the shaft size, internal Ø1 dimension, overall diameter, height, fastening-hole configuration and anode weight with the existing installation.
