Tecnoseal Magnesium Limited Clearance Shaft Collar Sacrificial Anodes, Shaft 19–50 mm / 3/4"–1-1/2"

Name: Tecnoseal Magnesium Limited Clearance Shaft Collar Sacrificial Anodes, Shaft 19–50 mm / 3/4"–1-1/2"
SKU: Tecnoseal 00550lmg

ID 1399649

$ 19.05

1-2 weeks delivery time

Shaft Diameter:

20
25
30
35
40
45
48
50
7/8"
1-1/8"
1-1/4"
1-1/2"
3/4"
1"

Size:

Ø65x20
Ø65x18
Ø85x20
Ø80x20
Ø61x25

Item:

150 g
50 g
60 g
100 g
70 g
120 g

Tecnoseal magnesium Limited Clearance shaft collar sacrificial anodes for shaft installations where a compact collar profile is required. The range includes fourteen models for metric and imperial shaft sizes from 19 mm / 3/4" up to 50 mm / 1-1/2", with weights from 0.05 to 0.15 kg. Available versions feature heights from 18 to 25 mm, overall diameters from Ø61 to Ø85 mm and internal shaft diameters from 19 to 50 mm. Metric versions are available for 20, 25, 30, 35, 40, 45, 48 and 50 mm shafts, together with 3/4", 7/8", 1", 1-1/8", 1-1/4" and 1-1/2" imperial configurations. Select the required model according to shaft size, overall diameter, collar height and weight.

Description
Ask a Question

Tecnoseal Magnesium Limited Clearance Shaft Collar Sacrificial Anodes – Shaft 19–50 mm / 3/4"–1-1/2"

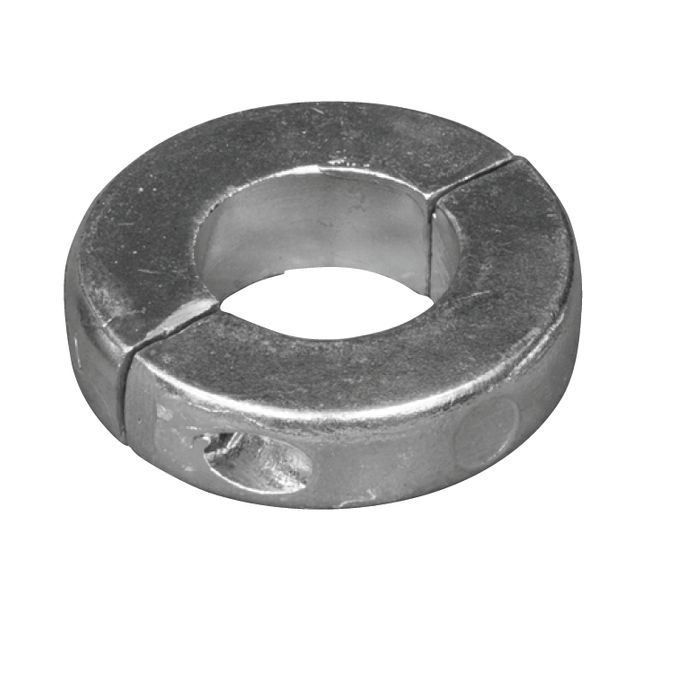

The Tecnoseal Magnesium Limited Clearance Shaft Collar Anodes are compact sacrificial shaft collar anodes available for a range of metric and imperial shaft diameters.

The range includes fourteen magnesium models for shaft sizes from 19 mm / 3/4" up to 50 mm / 1-1/2". Depending on the selected version, collar height ranges from 18 to 25 mm, overall outside diameter from Ø61 to Ø85 mm and weight from 0.05 to 0.15 kg.

Key Features

Brand: Tecnoseal
Type: Limited Clearance Shaft Collar
Product Type: Sacrificial shaft collar anode
Material: Magnesium
Available Models: 00550LMG, 00550-1LMG, 00551LMG, 00552LMG, 00553LMG, 00554LMG, 00555LMG, 00556LMG, 00557LMG, 00558MG, 00559-1MG, 00559MG, 00560MG and 00562MG
Shaft Size Range: 19–50 mm / 3/4"–1-1/2"
Height Range: 18–25 mm
Overall Diameter Range: Ø61–85 mm
Weight Range: 0.05–0.15 kg

Available Models and Technical Specifications

Tecnoseal Code	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00550LMG	19 mm / 3/4"	0.07 kg / 70 g	20 mm	65 mm	19 mm
00550-1LMG	20 mm	0.10 kg / 100 g	20 mm	65 mm	20 mm
00551LMG	7/8"	0.06 kg / 60 g	20 mm	65 mm	22 mm
00552LMG	25 mm	0.06 kg / 60 g	20 mm	65 mm	25 mm
00553LMG	1"	0.06 kg / 60 g	20 mm	65 mm	25.40 mm
00554LMG	1-1/8"	0.07 kg / 70 g	18 mm	65 mm	28.60 mm
00555LMG	30 mm	0.07 kg / 70 g	20 mm	65 mm	30 mm
00556LMG	1-1/4"	0.07 kg / 70 g	20 mm	65 mm	31.80 mm
00557LMG	35 mm	0.06 kg / 60 g	20 mm	65 mm	35 mm
00558MG	40 mm	0.12 kg / 120 g	20 mm	85 mm	40 mm
00559-1MG	48 mm	0.10 kg / 100 g	20 mm	80 mm	48 mm
00559MG	45 mm	0.10 kg / 100 g	20 mm	85 mm	45 mm
00560MG	50 mm	0.15 kg / 150 g	20 mm	85 mm	50 mm
00562MG	1-1/2"	0.05 kg / 50 g	25 mm	61 mm	38 mm

Tecnoseal 00550LMG – Shaft 19 mm / 3/4"

Material: Magnesium
Weight: 0.07 kg / 70 g / 0.15 lb
Shaft Size: 19 mm / 3/4"
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 19 mm / 0.75 in

Tecnoseal 00550-1LMG – Shaft 20 mm

Material: Magnesium
Weight: 0.10 kg / 100 g / 0.22 lb
Shaft Size: 20 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 20 mm / 0.79 in

Tecnoseal 00551LMG – Shaft 7/8"

Material: Magnesium
Weight: 0.06 kg / 60 g / 0.13 lb
Shaft Size: 7/8"
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 22 mm / 0.87 in

Tecnoseal 00552LMG – Shaft 25 mm

Material: Magnesium
Weight: 0.06 kg / 60 g / 0.13 lb
Shaft Size: 25 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 25 mm / 0.98 in

Tecnoseal 00553LMG – Shaft 1"

Material: Magnesium
Weight: 0.06 kg / 60 g / 0.13 lb
Shaft Size: 1"
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 25.40 mm / 1.00 in

Tecnoseal 00554LMG – Shaft 1-1/8"

Material: Magnesium
Weight: 0.07 kg / 70 g / 0.15 lb
Shaft Size: 1-1/8"
Height (h): 18 mm / 0.71 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 28.60 mm / 1.13 in

Tecnoseal 00555LMG – Shaft 30 mm

Material: Magnesium
Weight: 0.07 kg / 70 g / 0.15 lb
Shaft Size: 30 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 30 mm / 1.18 in

Tecnoseal 00556LMG – Shaft 1-1/4"

Material: Magnesium
Weight: 0.07 kg / 70 g / 0.15 lb
Shaft Size: 1-1/4"
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 31.80 mm / 1.25 in

Tecnoseal 00557LMG – Shaft 35 mm

Material: Magnesium
Weight: 0.06 kg / 60 g / 0.13 lb
Shaft Size: 35 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 65 mm / 2.56 in
Ø1: 35 mm / 1.38 in

Tecnoseal 00558MG – Shaft 40 mm

Material: Magnesium
Weight: 0.12 kg / 120 g / 0.26 lb
Shaft Size: 40 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 85 mm / 3.35 in
Ø1: 40 mm / 1.57 in

Tecnoseal 00559-1MG – Shaft 48 mm

Material: Magnesium
Weight: 0.10 kg / 100 g / 0.22 lb
Shaft Size: 48 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 80 mm / 3.15 in
Ø1: 48 mm / 1.89 in

Tecnoseal 00559MG – Shaft 45 mm

Material: Magnesium
Weight: 0.10 kg / 100 g / 0.22 lb
Shaft Size: 45 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 85 mm / 3.35 in
Ø1: 45 mm / 1.77 in

Tecnoseal 00560MG – Shaft 50 mm

Material: Magnesium
Weight: 0.15 kg / 150 g / 0.33 lb
Shaft Size: 50 mm
Height (h): 20 mm / 0.79 in
Overall Diameter (Ø): 85 mm / 3.35 in
Ø1: 50 mm / 1.97 in

Tecnoseal 00562MG – Shaft 1-1/2"

Material: Magnesium
Weight: 0.05 kg / 50 g / 0.11 lb
Shaft Size: 1-1/2"
Height (h): 25 mm / 0.98 in
Overall Diameter (Ø): 61 mm / 2.40 in
Ø1: 38 mm / 1.50 in

Dimensions for Model Selection

Shaft Size: Nominal shaft diameter for the selected collar
h: Collar height
Ø: Overall outside diameter
Ø1: Internal shaft diameter

For replacement selection, compare the shaft size, collar height, overall outside diameter, internal diameter and anode weight with the existing installation.
