ID
1399582
$ 21.14
1-2 weeks delivery time
Shaft Diameter:
- 20
- 25
- 30
- 35
- 7/8"
- 1-1/8"
- 1-1/4"
- 3/4"
- 1"
Size:
- Ø55x25
- Ø66x25
Item:
- 80 g
- 60 g
- 100 g
- 70 g
Tecnoseal magnesium NACA-profile shaft collar sacrificial anodes, available in nine configurations for shaft sizes from 19 to 35 mm, including metric and imperial shaft dimensions. All models have a height of 25 mm, with outside diameters of Ø55 or Ø66 mm depending on size. Shaft openings range from 19 to 35 mm, while magnesium anode weights range from 0.06 to 0.10 kg. Select the required model according to shaft size, outside diameter, shaft opening and weight.
- Description
- Ask a Question
-

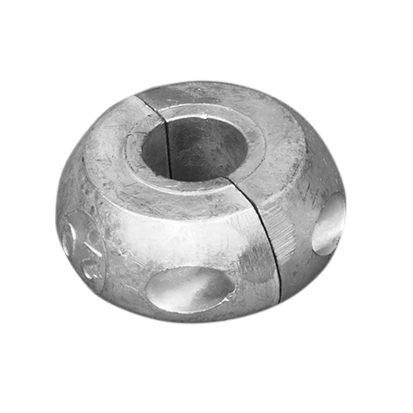

Tecnoseal Magnesium NACA Profile Shaft Collar Sacrificial Anodes – Shaft 19–35 mm
The Tecnoseal Magnesium NACA Profile Shaft Collar Anodes are sacrificial anodes available in nine configurations for different shaft diameters. The range includes both metric and imperial shaft sizes from 19 mm / 3/4" up to 35 mm.
All models have a height of 25 mm. The smaller versions have an outside diameter of Ø55 mm, while the larger versions have an outside diameter of Ø66 mm. Magnesium anode weights range from 0.06 to 0.10 kg.
Key Features
- Brand: Tecnoseal
- Type: NACA Profile Shaft Collar Anode
- Material: Magnesium
- Available Models: 00550MG, 00550/1MG, 00551MG, 00552MG, 00553MG, 00554MG, 00555MG, 00556MG and 00557MG
- Shaft Size Range: 19–35 mm
- Height (h): 25 mm
- Outside Diameter (Ø): 55 or 66 mm
- Weight Range: 0.06–0.10 kg
Available Models and Technical Specifications
Tecnoseal Code Shaft Size Weight Height (h) Outside Diameter (Ø) Ø1 00550MG 19 mm / 3/4" 0.07 kg / 70 g 25 mm 55 mm 19 mm 00550/1MG 20 mm 0.10 kg / 100 g 25 mm 55 mm 20 mm 00551MG 7/8" 0.08 kg / 80 g 25 mm 55 mm 22 mm 00552MG 25 mm 0.07 kg / 70 g 25 mm 55 mm 25 mm 00553MG 1" 0.08 kg / 80 g 25 mm 55 mm 25.40 mm 00554MG 1-1/8" 0.07 kg / 70 g 25 mm 66 mm 28.60 mm 00555MG 30 mm 0.08 kg / 80 g 25 mm 66 mm 30 mm 00556MG 1-1/4" 0.06 kg / 60 g 25 mm 66 mm 31.80 mm 00557MG 35 mm 0.07 kg / 70 g 25 mm 66 mm 35 mm
Tecnoseal 00550MG – Shaft 19 mm / 3/4"
- Material: Magnesium
- Weight: 0.07 kg / 70 g / 0.15 lb
- Shaft Size: 19 mm / 3/4"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 19 mm / 0.75 in
Tecnoseal 00550/1MG – Shaft 20 mm
- Material: Magnesium
- Weight: 0.10 kg / 100 g / 0.22 lb
- Shaft Size: 20 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 20 mm / 0.79 in
Tecnoseal 00551MG – Shaft 7/8"
- Material: Magnesium
- Weight: 0.08 kg / 80 g / 0.18 lb
- Shaft Size: 7/8"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 22 mm / 0.87 in
Tecnoseal 00552MG – Shaft 25 mm
- Material: Magnesium
- Weight: 0.07 kg / 70 g / 0.15 lb
- Shaft Size: 25 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 25 mm / 0.98 in
Tecnoseal 00553MG – Shaft 1"
- Material: Magnesium
- Weight: 0.08 kg / 80 g / 0.18 lb
- Shaft Size: 1"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 55 mm / 2.17 in
- Ø1: 25.40 mm / 1.00 in
Tecnoseal 00554MG – Shaft 1-1/8"
- Material: Magnesium
- Weight: 0.07 kg / 70 g / 0.15 lb
- Shaft Size: 1-1/8"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 28.60 mm / 1.13 in
Tecnoseal 00555MG – Shaft 30 mm
- Material: Magnesium
- Weight: 0.08 kg / 80 g / 0.18 lb
- Shaft Size: 30 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 30 mm / 1.18 in
Tecnoseal 00556MG – Shaft 1-1/4"
- Material: Magnesium
- Weight: 0.06 kg / 60 g / 0.13 lb
- Shaft Size: 1-1/4"
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 31.80 mm / 1.25 in
Tecnoseal 00557MG – Shaft 35 mm
- Material: Magnesium
- Weight: 0.07 kg / 70 g / 0.15 lb
- Shaft Size: 35 mm
- Height (h): 25 mm / 0.98 in
- Outside Diameter (Ø): 66 mm / 2.60 in
- Ø1: 35 mm / 1.38 in
Dimensions for Model Selection
- Shaft Size: Shaft diameter specified for the corresponding model
- h: Anode height
- Ø: Overall outside diameter
- Ø1: Shaft opening diameter
For replacement selection, compare the shaft size, outside diameter, height, Ø1 dimension and anode weight with the existing installation.
-
