Tecnoseal aluminium UK Type shaft sacrificial anodes for marine shaft installations, available in metric and imperial shaft configurations from 19 mm / 3/4" up to 50 mm. The range includes thirteen models with shaft openings from 19 to 50 mm, heights from 65 to 100 mm, overall diameters from Ø56 to Ø85 mm and aluminium anode weights from 0.22 to 0.952 kg. Imperial shaft options include 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2" and 1-3/4". Bolts and nuts are not included. Select the required model according to shaft size, height, overall diameter and weight.
- Description
- Ask a Question
-
Tecnoseal Aluminium UK Type Shaft Sacrificial Anodes – Shaft 19–50 mm
The Tecnoseal Aluminium UK Type Shaft Anodes are sacrificial anodes for marine shaft installations. The range includes metric and imperial shaft-size configurations from 19 mm / 3/4" up to 50 mm.
Available models have shaft openings from 19 to 50 mm, heights from 65 to 100 mm and overall outside diameters from Ø56 to Ø85 mm. Aluminium anode weights range from 0.22 to 0.952 kg. Bolts and nuts are not included.
Key Features
- Brand: Tecnoseal
- Type: UK Type Shaft Anode
- Product Type: Shaft sacrificial anode
- Material: Aluminium
- Available Models: 00500UKAL, 00501UKAL, 00502UKAL, 00503UKAL, 00505UKAL, 00506UKAL, 00507UKAL, 00509UKAL, 00510UKAL, 00511UKAL, 00511MUKAL, 00512UKAL and 00513UKAL
- Shaft Size Range: 19 mm / 3/4" to 50 mm
- Height Range: 65–100 mm
- Overall Diameter Range: Ø56–85 mm
- Weight Range: 0.22–0.952 kg
- Bolts and Nuts: Not included
Available Models and Technical Specifications
Tecnoseal Code Shaft Size Weight Height (h) Overall Ø Ø1 00500UKAL 19 mm / 3/4" 0.30 kg / 300 g 65 mm 56 mm 19 mm 00501UKAL 7/8" 0.28 kg / 280 g 65 mm 56 mm 22 mm 00502UKAL 25 mm 0.28 kg / 280 g 65 mm 56 mm 25 mm 00503UKAL 1" 0.27 kg / 270 g 65 mm 56 mm 25.40 mm 00505UKAL 1-1/8" 0.24 kg / 240 g 65 mm 56 mm 28.60 mm 00506UKAL 30 mm 0.22 kg / 220 g 65 mm 56 mm 30 mm 00507UKAL 1-1/4" 0.512 kg / 512 g 65 mm 70 mm 31.80 mm 00509UKAL 35 mm 0.500 kg / 500 g 78 mm 70 mm 35 mm 00510UKAL 1-1/2" 0.448 kg / 448 g 78 mm 70 mm 38 mm 00511UKAL 40 mm 0.412 kg / 412 g 78 mm 70 mm 40 mm 00511MUKAL 1-3/4" 0.380 kg / 380 g 78 mm 70 mm 44.40 mm 00512UKAL 45 mm 0.430 kg / 430 g 100 mm 85 mm 45 mm 00513UKAL 50 mm 0.952 kg / 952 g 100 mm 85 mm 50 mm

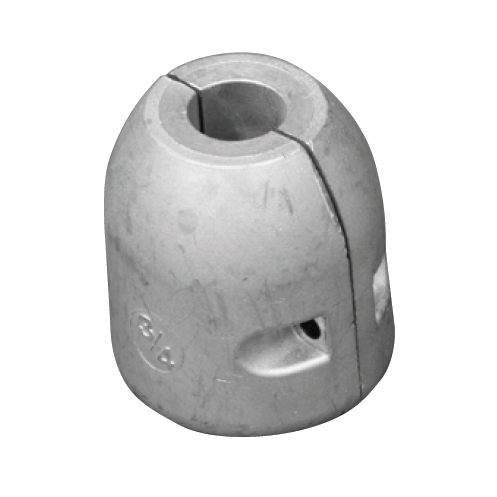

Tecnoseal 00500UKAL – Shaft 19 mm / 3/4"
- Material: Aluminium
- Type: UK Type
- Weight: 0.30 kg / 300 g / 0.66 lb
- Shaft Size: 19 mm / 3/4"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 19 mm / 0.75 in
Tecnoseal 00501UKAL – Shaft 7/8"
- Material: Aluminium
- Type: UK Type
- Weight: 0.28 kg / 280 g / 0.62 lb
- Shaft Size: 7/8"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 22 mm / 0.87 in
Tecnoseal 00502UKAL – Shaft 25 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.28 kg / 280 g / 0.62 lb
- Shaft Size: 25 mm
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 25 mm / 0.98 in
Tecnoseal 00503UKAL – Shaft 1"
- Material: Aluminium
- Type: UK Type
- Weight: 0.27 kg / 270 g / 0.60 lb
- Shaft Size: 1"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 25.40 mm / 1.00 in
Tecnoseal 00505UKAL – Shaft 1-1/8"
- Material: Aluminium
- Type: UK Type
- Weight: 0.24 kg / 240 g / 0.53 lb
- Shaft Size: 1-1/8"
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 28.60 mm / 1.13 in
Tecnoseal 00506UKAL – Shaft 30 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.22 kg / 220 g / 0.49 lb
- Shaft Size: 30 mm
- Height (h): 65 mm / 2.56 in
- Overall Diameter (Ø): 56 mm / 2.20 in
- Ø1: 30 mm / 1.18 in
Tecnoseal 00507UKAL – Shaft 1-1/4"
- Material: Aluminium
- Type: UK Type
- Weight: 0.512 kg / 512 g / 1.13 lb
- Shaft Size: 1-1/4"
- Height (h): 65 mm
- Overall Diameter (Ø): 70 mm
- Ø1: 31.80 mm
Tecnoseal 00509UKAL – Shaft 35 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.500 kg / 500 g / 1.10 lb
- Shaft Size: 35 mm
- Height (h): 78 mm
- Overall Diameter (Ø): 70 mm
- Ø1: 35 mm
Tecnoseal 00510UKAL – Shaft 1-1/2"
- Material: Aluminium
- Type: UK Type
- Weight: 0.448 kg / 448 g / 0.99 lb
- Shaft Size: 1-1/2"
- Height (h): 78 mm
- Overall Diameter (Ø): 70 mm
- Ø1: 38 mm
Tecnoseal 00511UKAL – Shaft 40 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.412 kg / 412 g / 0.91 lb
- Shaft Size: 40 mm
- Height (h): 78 mm
- Overall Diameter (Ø): 70 mm
- Ø1: 40 mm
Tecnoseal 00511MUKAL – Shaft 1-3/4"
- Material: Aluminium
- Type: UK Type
- Weight: 0.380 kg / 380 g / 0.84 lb
- Shaft Size: 1-3/4"
- Height (h): 78 mm
- Overall Diameter (Ø): 70 mm
- Ø1: 44.40 mm
Tecnoseal 00512UKAL – Shaft 45 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.430 kg / 430 g / 0.95 lb
- Shaft Size: 45 mm
- Height (h): 100 mm
- Overall Diameter (Ø): 85 mm
- Ø1: 45 mm
Tecnoseal 00513UKAL – Shaft 50 mm
- Material: Aluminium
- Type: UK Type
- Weight: 0.952 kg / 952 g / 2.10 lb
- Shaft Size: 50 mm
- Height (h): 100 mm
- Overall Diameter (Ø): 85 mm
- Ø1: 50 mm
Dimensions for Model Selection
- Shaft Size: Nominal shaft diameter for the selected UK Type anode
- h: Overall anode height
- Ø: Overall outside diameter
- Ø1: Internal shaft opening diameter
- Bolts and Nuts: Not included
For replacement selection, compare the shaft size, internal Ø1 dimension, overall diameter, height and anode weight with the existing installation.
-
