Tecnoseal Aluminium USA Type Shaft Sacrificial Anodes, Shaft 19 mm to 3"

ID 1399820

$ 21.73

1-2 weeks delivery time

Shaft Diameter:

25
28
30
35
40
45
48
50
60
7/8"
1-1/8"
1-1/4"
1-1/2"
2-1/4"
2-1/2"
1-3/4"
2-3/4"
3/4"
1"
2"
3"

Item:

150 g
160 g
250 g
170 g
270 g
1000 g
190 g
140 g
400 g
430 g
1250 g
540 g
1110 g
290 g
1050 g
940 g

Tecnoseal aluminium USA Type shaft sacrificial anodes for marine shaft installations, available in metric and imperial shaft sizes from 19 mm / 3/4" up to 76.20 mm / 3". The range includes compact models with 2 fastening holes and larger versions with 4 fastening holes. Depending on the model, weights range from 0.14 to 1.25 kg, heights from 51 to 102 mm and overall diameters from Ø54 to Ø122 mm. Available shaft sizes include 19, 25, 28, 30, 35, 40, 45, 48, 50 and 60 mm together with 3/4", 7/8", 1", 1-1/8", 1-1/4", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2", 2-3/4" and 3" configurations. Bolts and nuts are available on request. Select the required version according to shaft size, fastening configuration, height, overall diameter and weight.

Description
Ask a Question

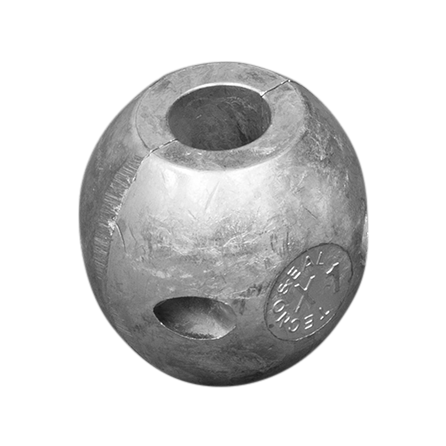

Tecnoseal Aluminium USA Type Shaft Sacrificial Anodes – 2 & 4 Fastening Holes, Shaft 19 mm to 3"

The Tecnoseal Aluminium USA Type Shaft Anodes are sacrificial shaft anodes available for a range of metric and imperial shaft diameters. The aluminium range covers shaft sizes from 19 mm / 3/4" up to 76.20 mm / 3".

The range includes models with 2 fastening holes for the smaller shaft sizes and 4 fastening holes for the larger configurations. Bolts and nuts are available on request.

Depending on the selected model, aluminium anode weight ranges from 0.14 to 1.25 kg, height from 51 to 102 mm and overall outside diameter from Ø54 to Ø122 mm.

Key Features

Brand: Tecnoseal
Type: USA Type Shaft Anode
Product Type: Shaft sacrificial anode
Material: Aluminium
Shaft Size Range: 19 mm / 3/4" to 76.20 mm / 3"
Fastening: 2 or 4 fastening holes depending on model
Bolts and Nuts: Available on request
Height Range: 51–102 mm
Overall Diameter Range: Ø54–122 mm
Weight Range: 0.14–1.25 kg

USA Type Shaft Anodes – 2 Fastening Holes

Tecnoseal Code	USA Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00500USAAL	X-1	19 mm / 3/4"	0.19 kg / 190 g	51 mm	54 mm	19 mm
00501USAAL	X-2	7/8"	0.17 kg / 170 g	51 mm	54 mm	22 mm
00502USAAL	D-25	25 mm	0.15 kg / 150 g	51 mm	54 mm	25 mm
00503USAAL	X-3	1"	0.16 kg / 160 g	51 mm	54 mm	25.40 mm
00504USAAL	D-28	28 mm	0.14 kg / 140 g	51 mm	54 mm	28 mm
00505USAAL	X-4	1-1/8"	0.14 kg / 140 g	51 mm	54 mm	28.60 mm
00506USAAL	D-30	30 mm	0.27 kg / 270 g	67 mm	63 mm	30 mm
00507USAAL	X-5	1-1/4"	0.19 kg / 190 g	64 mm	58 mm	31.80 mm
00509USA/AL	X-6 / D-35	35 mm	0.29 kg / 290 g	67 mm	66 mm	35 mm
00510USA/AL	X-7	1-1/2"	0.25 kg / 250 g	67 mm	66 mm	38 mm
00511MUSAAL	X-8	1-3/4"	0.43 kg / 430 g	76 mm	82 mm	44.40 mm
00511USAAL	D-40	40 mm	0.54 kg / 540 g	76 mm	82 mm	40 mm
00512MUSAAL	D-48	48 mm	0.40 kg / 400 g	76 mm	82 mm	48 mm
00512USAAL	D-45	45 mm	0.43 kg / 430 g	76 mm	82 mm	45 mm
00513USAAL	D-50	50 mm	0.43 kg / 430 g	76 mm	82 mm	50 mm
00514USAAL	X-9	2"	0.43 kg / 430 g	75 mm	82 mm	50.80 mm

USA Type Shaft Anodes – 4 Fastening Holes

Tecnoseal Code	USA Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00516USAAL	X-10	2-1/4"	1.11 kg / 1110 g	102 mm	107 mm	57.10 mm
00517USAAL	D-60	60 mm	1.00 kg / 1000 g	102 mm	107 mm	60 mm
00518USAAL	X-11	2-1/2"	0.94 kg / 940 g	102 mm	107 mm	63.50 mm
00520USAAL	X-12	2-3/4"	1.25 kg / 1250 g	96 mm	122 mm	70 mm
00521MUSAAL	X-13	3"	1.05 kg / 1050 g	96 mm	122 mm	76.20 mm

Fastening Configuration

2 Fastening Holes: 00500USAAL through 00514USAAL
4 Fastening Holes: 00516USAAL through 00521MUSAAL
Bolts and Nuts: Available on request

Dimensions for Model Selection

Shaft Size: Nominal metric or imperial shaft size for the selected anode
h: Overall anode height
Ø: Overall outside diameter
Ø1: Internal shaft opening diameter

For replacement selection, compare the shaft size, Ø1 dimension, overall diameter, height, fastening-hole configuration and anode weight with the existing installation.
