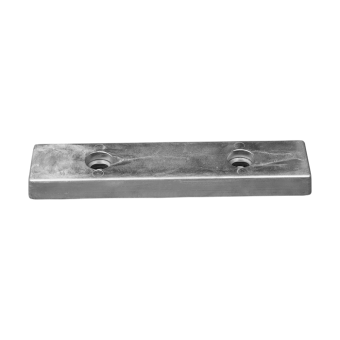

Tecnoseal Magnesium Large Bar Hull Anodes

Name: Tecnoseal Magnesium Large Bar Hull Anodes
SKU: Tecnoseal 00275EMG

ID 1406337

$ 377.42

1-2 weeks delivery time

Size:

455x100x40
455x105x35
455x100x47
540x130x70

Item:

3530 g HC230
2270 g HC230
3030 g HC230
7060 g HC300

Tecnoseal magnesium large bar sacrificial anodes for commercial marine hull applications, available in four sizes: 00275EMG, 00276EMG, 00277EMG and 00278EMG. The rectangular bolt-on anodes measure 455 × 105 × 35 mm, 455 × 100 × 40 mm, 455 × 100 × 47 mm and 540 × 130 × 70 mm respectively. All models feature two elongated 22 × 30 mm mounting openings, with centre-to-centre spacing of 230 mm or 300 mm depending on the model. Catalogue weights range from 2.27 to 7.06 kg. The magnesium anodes provide sacrificial corrosion protection for compatible marine installations.

Description
Ask a Question

Tecnoseal 00275EMG–00278EMG Magnesium Large Bar Hull Anodes – Multiple Sizes

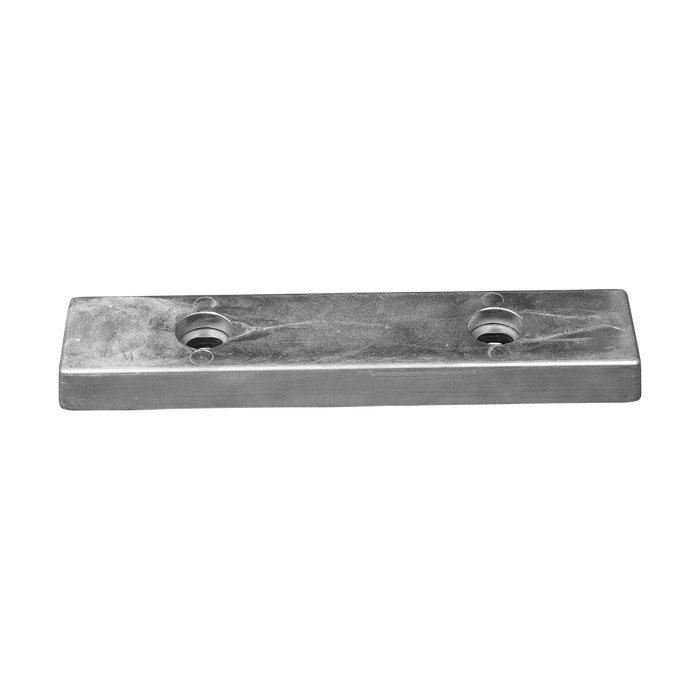

The Tecnoseal magnesium large bar anode range includes four rectangular bolt-on sacrificial anodes for commercial marine hull installations. The models differ in body dimensions, weight and mounting hole spacing.

All four versions are manufactured from magnesium and feature two elongated 22 × 30 mm mounting openings. The centre-to-centre hole spacing is 230 mm or 300 mm, depending on the selected model.

Key Features

Manufacturer: Tecnoseal
Product Type: Large rectangular sacrificial bar anode
Material: Magnesium
Application: Commercial marine hull corrosion protection
Available Models: 00275EMG, 00276EMG, 00277EMG, 00278EMG
Mounting: Two elongated openings
Mounting Opening Size: 22 × 30 mm
Available Hole Spacing: 230 mm, 300 mm
Weight Range: 2.27–7.06 kg

Technical Specifications

Product Code	Dimensions (L × W × H)	Hole Spacing (i)	Mounting Openings (Ø)	Weight
00275EMG	455 × 105 × 35 mm	230 mm	22 × 30 mm	2.27 kg
00276EMG	455 × 100 × 40 mm	230 mm	22 × 30 mm	3.03 kg
00277EMG	455 × 100 × 47 mm	230 mm	22 × 30 mm	3.53 kg
00278EMG	540 × 130 × 70 mm	300 mm	22 × 30 mm	7.06 kg

Available Models

Tecnoseal 00275EMG: Magnesium large bar anode measuring 455 × 105 × 35 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 2.27 kg (5.00 lbs).

Tecnoseal 00276EMG: Magnesium large bar anode measuring 455 × 100 × 40 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 3.03 kg (6.68 lbs).

Tecnoseal 00277EMG: Magnesium large bar anode measuring 455 × 100 × 47 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 3.53 kg (7.78 lbs).

Tecnoseal 00278EMG: Magnesium large bar anode measuring 540 × 130 × 70 mm, with 300 mm mounting hole spacing and 22 × 30 mm openings. Weight: 7.06 kg (15.56 lbs).

Marine Application

These Tecnoseal magnesium bar anodes are intended for marine installations requiring large rectangular sacrificial anodes with the specified mounting dimensions.

Magnesium is commonly used for sacrificial corrosion protection in freshwater applications. The selected anode should match the vessel's operating water conditions and corrosion protection requirements.

Mounting and Replacement

All four models feature two elongated 22 × 30 mm mounting openings.

Models 00275EMG, 00276EMG and 00277EMG have 230 mm centre-to-centre mounting spacing, while model 00278EMG has 300 mm spacing.

Before ordering, compare the overall dimensions, mounting opening sizes and hole spacing with the existing anode.

Ensure proper electrical contact with the metallic component being protected. Inspect the sacrificial anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal magnesium large bar sacrificial anode in the selected size.
