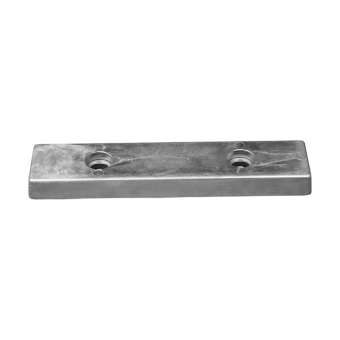

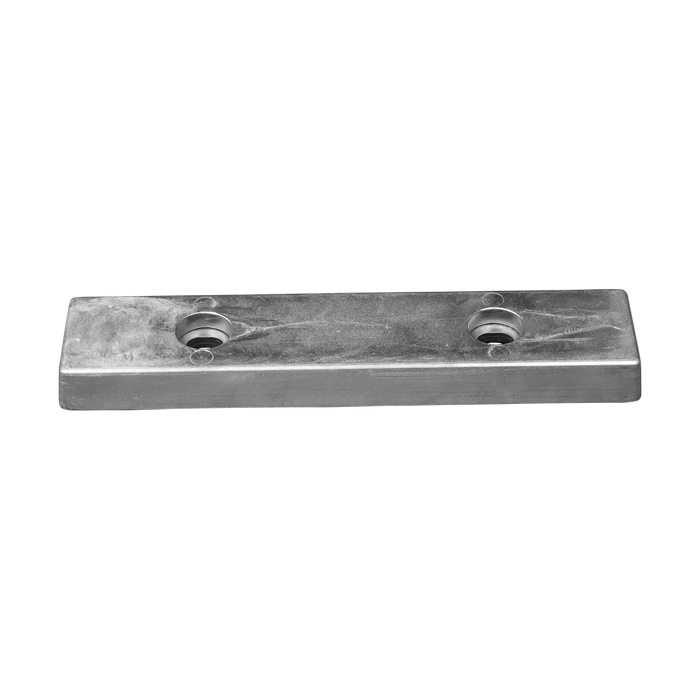

Tecnoseal Aluminium Large Bar Hull Anodes

Name: Tecnoseal Aluminium Large Bar Hull Anodes
SKU: Tecnoseal 00279EAL

ID 1406330

$ 346.25

1-2 weeks delivery time

Size:

455x100x40
455x105x35
455x100x47
540x130x70
490x120x60
400x145x60

Item:

8500 g HC160
9000 g HC180
3530 g HC230
4710 g HC230
5500 g HC230
10980 g HC300

Tecnoseal aluminium large bar sacrificial anodes for commercial marine hull applications, available in six configurations: 00279EAL, 00279E-1AL, 00275EAL, 00276EAL, 00277EAL and 00278EAL. The rectangular bolt-on anodes measure from 400 × 145 × 60 mm to 540 × 130 × 70 mm, with mounting hole spacing of 160, 180, 230 or 300 mm. Depending on the model, mounting openings measure 18 mm or 22 × 30 mm. Catalogue weights range from 3.53 to 10.98 kg. Select the required anode according to its external dimensions, weight and mounting configuration.

Description
Ask a Question

Tecnoseal 00275EAL–00279EAL Aluminium Large Bar Hull Anodes – Multiple Sizes

The Tecnoseal aluminium large bar anode range includes six rectangular bolt-on sacrificial anodes for commercial marine hull applications. The models differ in external dimensions, mounting hole spacing, mounting opening sizes and weight.

All six versions are manufactured from aluminium and are intended for sacrificial corrosion protection of electrically connected metallic marine components.

Key Features

Manufacturer: Tecnoseal
Product Type: Large rectangular sacrificial bar anode
Material: Aluminium
Application: Commercial marine hull corrosion protection
Mounting: Two mounting openings
Available Hole Spacing: 160, 180, 230 and 300 mm
Mounting Opening Sizes: Ø18 mm or 22 × 30 mm, depending on model
Catalogue Weight Range: 3.53–10.98 kg

Technical Specifications

Product Code	Dimensions (L × W × H)	Hole Spacing (i)	Mounting Openings (Ø)	Weight
00279EAL	490 × 120 × 60 mm	160 mm	22 × 30 mm	8.50 kg
00279E-1AL	400 × 145 × 60 mm	180 mm	18 mm	9.00 kg
00275EAL	455 × 105 × 35 mm	230 mm	22 × 30 mm	3.53 kg
00276EAL	455 × 100 × 40 mm	230 mm	22 × 30 mm	4.71 kg
00277EAL	455 × 100 × 47 mm	230 mm	22 × 30 mm	5.50 kg
00278EAL	540 × 130 × 70 mm	300 mm	22 × 30 mm	10.98 kg

Available Models

Tecnoseal 00279EAL: Aluminium large bar anode measuring 490 × 120 × 60 mm, with 160 mm centre-to-centre mounting hole spacing and 22 × 30 mm mounting openings. Weight: 8.50 kg (18.74 lbs).

Tecnoseal 00279E-1AL: Aluminium large bar anode measuring 400 × 145 × 60 mm, with 180 mm mounting hole spacing and Ø18 mm holes. Weight: 9.00 kg (19.84 lbs).

Tecnoseal 00275EAL: Aluminium large bar anode measuring 455 × 105 × 35 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 3.53 kg (7.78 lbs).

Tecnoseal 00276EAL: Aluminium large bar anode measuring 455 × 100 × 40 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 4.71 kg (10.38 lbs).

Tecnoseal 00277EAL: Aluminium large bar anode measuring 455 × 100 × 47 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 5.50 kg (12.13 lbs).

Tecnoseal 00278EAL: Aluminium large bar anode measuring 540 × 130 × 70 mm, with 300 mm mounting hole spacing and 22 × 30 mm openings. Weight: 10.98 kg (24.21 lbs).

Marine Hull Application

These aluminium bar anodes are intended for commercial marine hull installations requiring large rectangular sacrificial anodes with the specified mounting dimensions.

The aluminium anode material helps protect electrically connected metallic components against galvanic corrosion when used as part of a compatible corrosion protection system.

Mounting and Replacement

Before ordering, check the overall dimensions, mounting opening size and centre-to-centre hole spacing against the existing anode.

Important: Models 00275EAL, 00276EAL and 00277EAL have the same 230 mm mounting spacing but different body dimensions. Models 00279EAL and 00279E-1AL use different mounting spacing and hole configurations.

Inspect the sacrificial anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal aluminium large bar sacrificial anode in the selected configuration.
