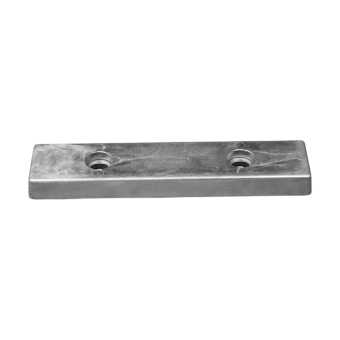

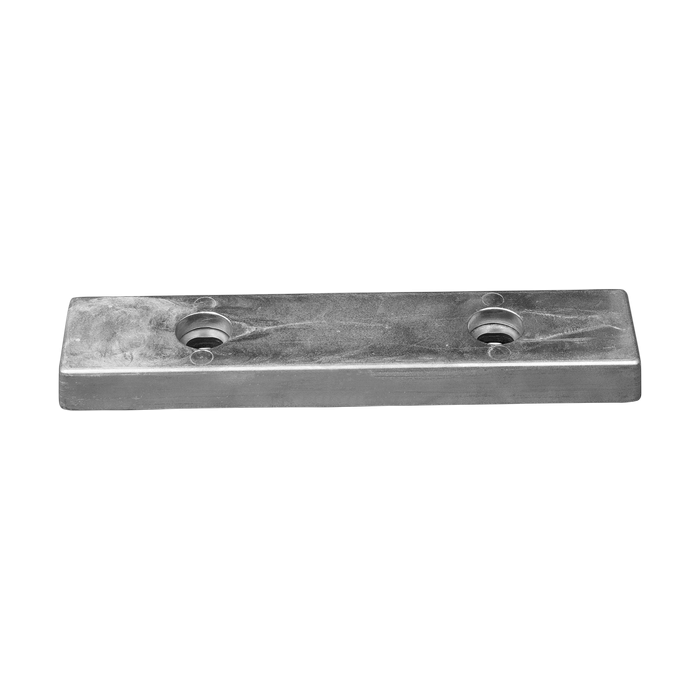

Tecnoseal Zinc Large Bar Hull Anodes

Name: Tecnoseal Zinc Large Bar Hull Anodes
SKU: Tecnoseal 00275E

ID 1406325

$ 565.10

1-2 weeks delivery time

Size:

455x100x40
455x105x35
455x100x47
540x130x70

Item:

9000 g HC230
12000 g HC230
14000 g HC230
28000 g HC300

Tecnoseal 00275E–00278E zinc large bar sacrificial anodes for commercial marine hull corrosion protection. Available in four configurations with lengths of 455 or 540 mm, widths of 100–130 mm and heights of 35–70 mm. All versions feature two elongated 22 × 30 mm mounting openings, with centre-to-centre spacing of 230 mm for models 00275E, 00276E and 00277E, and 300 mm for model 00278E. Catalogue weights are 9.00, 12.00, 14.00 and 28.00 kg respectively. Select the appropriate model according to its external dimensions and mounting hole spacing.

Description
Ask a Question

Tecnoseal 00275E–00278E Zinc Large Bar Hull Anodes – Multiple Sizes

The Tecnoseal 00275E–00278E series includes large rectangular zinc sacrificial bar anodes for commercial marine hull applications. Four configurations are available with different dimensions, weights and mounting hole spacing.

Each anode has two mounting openings measuring 22 × 30 mm. The catalogue specifies centre-to-centre mounting distances of 230 mm or 300 mm, depending on the model.

Key Features

Manufacturer: Tecnoseal
Product Type: Large rectangular sacrificial bar anode
Material: Zinc
Application: Commercial marine hull corrosion protection
Available Models: 00275E, 00276E, 00277E, 00278E
Mounting: Two elongated holes
Mounting Opening Size: 22 × 30 mm
Available Hole Spacing: 230 mm, 300 mm
Weight Range: 9.00–28.00 kg

Technical Specifications

Product Code	Dimensions (L × W × H)	Hole Spacing (i)	Mounting Openings (Ø)	Weight
00275E	455 × 105 × 35 mm	230 mm	22 × 30 mm	9.00 kg
00276E	455 × 100 × 40 mm	230 mm	22 × 30 mm	12.00 kg
00277E	455 × 100 × 47 mm	230 mm	22 × 30 mm	14.00 kg
00278E	540 × 130 × 70 mm	300 mm	22 × 30 mm	28.00 kg

Available Models

Tecnoseal 00275E: Zinc large bar anode measuring 455 × 105 × 35 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 9.00 kg (19.84 lbs).

Tecnoseal 00276E: Zinc large bar anode measuring 455 × 100 × 40 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 12.00 kg (26.46 lbs).

Tecnoseal 00277E: Zinc large bar anode measuring 455 × 100 × 47 mm, with 230 mm mounting hole spacing and 22 × 30 mm openings. Weight: 14.00 kg (30.86 lbs).

Tecnoseal 00278E: Zinc large bar anode measuring 540 × 130 × 70 mm, with 300 mm mounting hole spacing and 22 × 30 mm openings. Weight: 28.00 kg (61.73 lbs).

Marine Hull Application

These zinc sacrificial bar anodes are intended for marine hull installations requiring large rectangular anodes with the specified mounting dimensions.

The zinc material helps protect electrically connected metallic components against galvanic corrosion when installed with proper electrical contact.

Mounting and Replacement

All four models feature two elongated 22 × 30 mm mounting openings.

Models 00275E, 00276E and 00277E have 230 mm centre-to-centre mounting spacing. Model 00278E has 300 mm spacing.

Before ordering, compare the overall dimensions, mounting opening sizes and hole spacing with the existing anode.

Inspect the anode periodically and replace it when sufficiently consumed.

Supply: One Tecnoseal zinc large bar sacrificial anode in the selected size.
