Tecnoseal Aluminium Shaft Collar Sacrificial Anodes, Shaft 19–140 mm

ID 1399634

$ 14.28

1-2 weeks delivery time

Shaft Diameter:

20
25
30
35
40
45
48
50
7/8"
1-1/8"
1-1/4"
1-1/2"
3/4"
1"

Size:

Ø65x20
Ø65x18
Ø85x20
Ø80x20
Ø61x25

Item:

80 g
160 g
170 g
110 g
20 g
60 g
90 g
130 g
100 g
180 g

Tecnoseal aluminium shaft collar sacrificial anodes for shaft installations, available in Limited Clearance, Medium Size and Large Size configurations. The range includes metric and imperial shaft sizes from 19 mm / 3/4" up to 140 mm, with collar heights from 18 to 40 mm, overall diameters from Ø61 to Ø225 mm and weights from 0.02 to 2.20 kg. Compact Limited Clearance versions cover shaft sizes from 19 mm / 3/4" through 50 mm, including 7/8", 1", 1-1/8", 1-1/4" and 1-1/2" options. Additional medium and large aluminium versions are available for 60, 70, 75, 100, 120 and 140 mm shafts. Select the required model according to shaft size, collar height, overall diameter and weight.

Description
Ask a Question

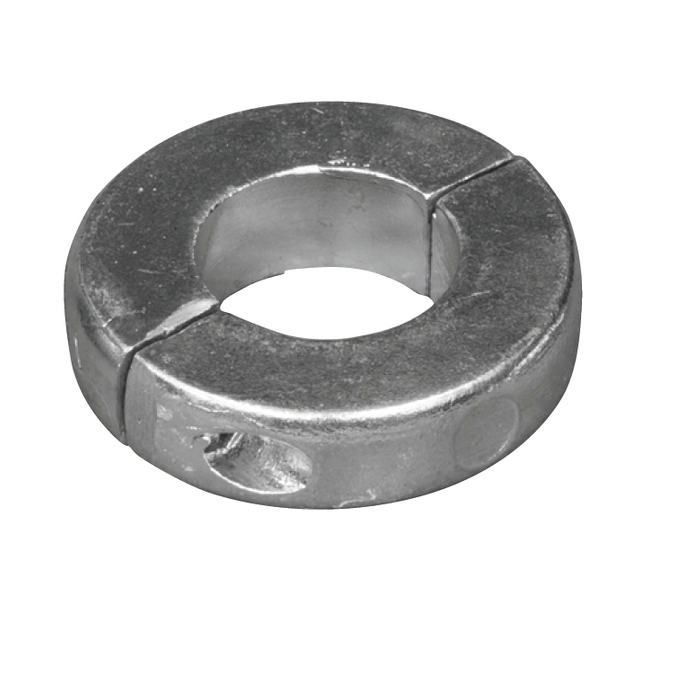

Tecnoseal Aluminium Shaft Collar Sacrificial Anodes – Limited Clearance, Medium & Large Size – Shaft 19–140 mm

The Tecnoseal Aluminium Shaft Collar Anodes are available in Limited Clearance, Medium Size and Large Size configurations for different shaft diameters. The range includes both metric and imperial shaft sizes.

Available aluminium models cover shaft sizes from 19 mm / 3/4" up to 140 mm. Depending on the selected model, collar height ranges from 18 to 40 mm, overall outside diameter from Ø61 to Ø225 mm and weight from 0.02 to 2.20 kg.

Confirmed Osculati cross references include Tecnoseal 00551LAL / Osculati 43.811.22, 00552LAL / Osculati 43.811.25, 00553LAL / Osculati 43.815.26, 00555LAL / Osculati 43.815.30, 00556LAL / Osculati 43.815.32, 00557LAL / Osculati 43.815.35, 00558AL / Osculati 43.803.40, 00559AL / Osculati 43.803.45 and 00560AL / Osculati 43.803.50.

Key Features

Brand: Tecnoseal
Product Type: Shaft collar sacrificial anode
Material: Aluminium
Configurations: Limited Clearance, Medium Size and Large Size
Osculati Cross References: 00551LAL / 43.811.22; 00552LAL / 43.811.25; 00553LAL / 43.815.26; 00555LAL / 43.815.30; 00556LAL / 43.815.32; 00557LAL / 43.815.35; 00558AL / 43.803.40; 00559AL / 43.803.45; 00560AL / 43.803.50
Shaft Size Range: 19 mm / 3/4" to 140 mm
Height Range: 18–40 mm
Overall Diameter Range: Ø61–225 mm
Weight Range: 0.02–2.20 kg

Limited Clearance Shaft Collar Anodes

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00550-1LAL	—	20 mm	0.06 kg / 60 g	20 mm	65 mm	20 mm
00550LAL	—	19 mm / 3/4"	0.10 kg / 100 g	20 mm	65 mm	19 mm
00551LAL	43.811.22	7/8"	0.10 kg / 100 g	20 mm	65 mm	22 mm
00552LAL	43.811.25	25 mm	0.09 kg / 90 g	20 mm	65 mm	25 mm
00553LAL	43.815.26	1"	0.09 kg / 90 g	20 mm	65 mm	25.40 mm
00554LAL	—	1-1/8"	0.13 kg / 130 g	18 mm	65 mm	28.60 mm
00555LAL	43.815.30	30 mm	0.11 kg / 110 g	20 mm	65 mm	30 mm
00556LAL	43.815.32	1-1/4"	0.11 kg / 110 g	20 mm	65 mm	31.80 mm
00557LAL	43.815.35	35 mm	0.09 kg / 90 g	20 mm	65 mm	35 mm
00558AL	43.803.40	40 mm	0.18 kg / 180 g	20 mm	85 mm	40 mm
00559-1AL	—	48 mm	0.17 kg / 170 g	20 mm	80 mm	48 mm
00559AL	43.803.45	45 mm	0.16 kg / 160 g	20 mm	85 mm	45 mm
00560AL	43.803.50	50 mm	0.02 kg / 20 g	20 mm	85 mm	50 mm
00562AL	—	1-1/2"	0.08 kg / 80 g	25 mm	61 mm	38 mm

Medium Size Shaft Collar Anodes

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00564AL	—	60 mm	0.49 kg / 490 g	30 mm	115 mm	60 mm
00567AL	—	70 mm	0.42 kg / 420 g	30 mm	115 mm	70 mm
00568AL	—	75 mm	0.49 kg / 490 g	30 mm	115 mm	75 mm

Large Size Shaft Collar Anodes

Tecnoseal Code	Osculati Reference	Shaft Size	Weight	Height (h)	Overall Ø	Ø1
00573AL	—	100 mm	0.76 kg / 760 g	32 mm	148 mm	100 mm
00577AL	—	120 mm	2.20 kg / 2200 g	40 mm	210 mm	120 mm
00583AL	—	140 mm	1.79 kg / 1790 g	40 mm	225 mm	140 mm

Dimensions for Model Selection

Shaft Size: Nominal shaft diameter for the selected collar
h: Collar height
Ø: Overall outside diameter
Ø1: Internal shaft diameter

For replacement selection, compare the shaft size, collar height, overall outside diameter, internal diameter and anode weight with the existing installation.
