The Tecnoseal TEC-DIVERSD series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications. Available in zinc, aluminium and magnesium, all versions measure 305 × 152 × 25 mm and feature two elongated mounting slots measuring 13 × 102 mm, spaced 140 mm centre to centre. The zinc TEC-DIVERSD weighs 6.66 kg, the aluminium TEC-DIVERSD-AL weighs 2.74 kg, and the magnesium TEC-DIVERSD-MG weighs 2.00 kg. These anodes belong to the HC 140-160 series.
- Description
- Ask a Question
-

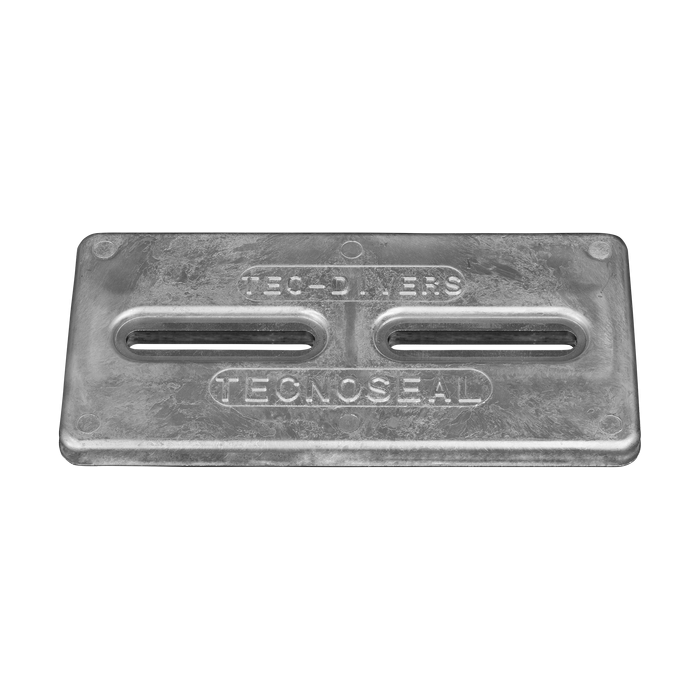

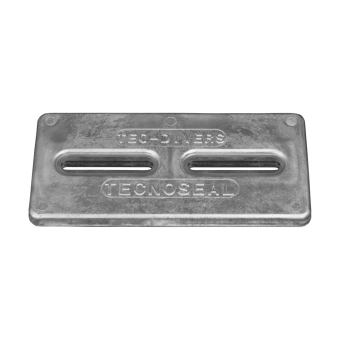

Tecnoseal TEC-DIVERSD Hull and Transom Plate Anode with Insert 305x152x25 mm – Zinc, Aluminium & Magnesium
The Tecnoseal TEC-DIVERSD series includes rectangular sacrificial plate anodes with inserts for marine hull and transom applications. Three material versions are available: zinc, aluminium and magnesium.
All three models measure 305 × 152 × 25 mm and feature two elongated mounting slots measuring 13 × 102 mm, with a centre-to-centre spacing of 140 mm. They belong to the HC 140-160 plate series.
Key Features
- Manufacturer: Tecnoseal
- Product Series: TEC-DIVERSD
- Product Type: Rectangular sacrificial plate anode with insert
- Series: HC 140-160
- Application: Marine hull and transom
- Available Materials: Zinc, Aluminium, Magnesium
- Dimensions: 305 × 152 × 25 mm
- Mounting: Two elongated slots
- Slot Spacing: 140 mm
- Slot Dimensions: 13 × 102 mm
Technical Specifications
Parameter Specification Length (l) 305 mm / 12.01 in Width (a) 152 mm / 5.98 in Height (h) 25 mm / 0.98 in Mounting Slot Spacing (i) 140 mm / 5.51 in Mounting Slot Dimensions (Ø) 13 × 102 mm / 0.51 × 4.02 in Number of Mounting Slots 2
Available Models
Product Code Material Weight TEC-DIVERSD Zinc 6.66 kg / 14.68 lbs TEC-DIVERSD-AL Aluminium 2.74 kg / 6.04 lbs TEC-DIVERSD-MG Magnesium 2.00 kg / 4.41 lbs
Hull and Transom Application
These sacrificial plate anodes are designed for marine hull and transom installations requiring a rectangular anode with the specified dimensions and mounting arrangement.
The zinc, aluminium and magnesium versions provide sacrificial corrosion protection for electrically connected metallic components. Select the material according to the vessel's operating water conditions and existing corrosion protection system.
Mounting and Replacement
All versions have two elongated mounting slots measuring 13 × 102 mm, spaced 140 mm centre to centre.
Before ordering, compare the 305 × 152 × 25 mm dimensions and mounting configuration with the existing anode.
Inspect the anode periodically and replace it when sufficiently consumed.
Supply: One Tecnoseal TEC-DIVERSD series rectangular plate anode in the selected material.
-
