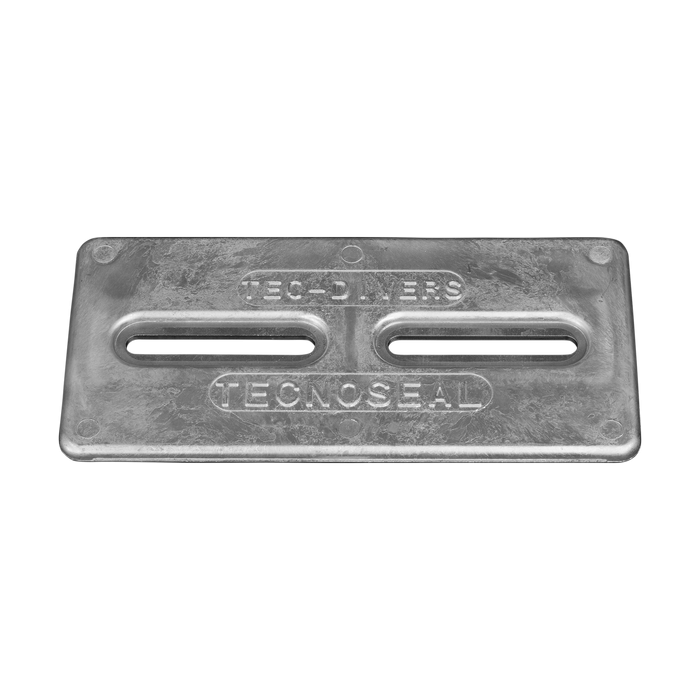

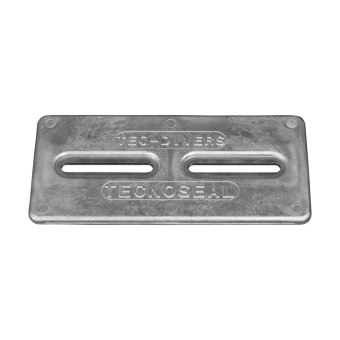

Tecnoseal TEC-DIVERS Hull and Transom Plate Anode with Insert 305x152x13 mm

Name: Tecnoseal TEC-DIVERS Hull and Transom Plate Anode with Insert 305x152x13 mm
SKU: Tecnoseal TEC-DIVERS

ID 1406236

$ 217.13

1-2 weeks delivery time

Type:

Zinc
Magnesium
Aluminium

Item:

1500 g
3500 g
1250 g

The Tecnoseal TEC-DIVERS series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications. Available in zinc, aluminium and magnesium, all three versions measure 305 × 152 × 13 mm and feature two elongated mounting slots measuring 13 × 102 mm, spaced 140 mm centre to centre. The zinc TEC-DIVERS weighs 3.50 kg, the aluminium TEC-DIVERS-AL weighs 1.50 kg, and the magnesium TEC-DIVERS-MG weighs 1.25 kg. These anodes belong to the HC 140-160 series.

Description
Ask a Question

Tecnoseal TEC-DIVERS Hull and Transom Plate Anode with Insert 305x152x13 mm – Zinc, Aluminium & Magnesium

The Tecnoseal TEC-DIVERS series consists of rectangular sacrificial plate anodes with inserts for marine hull and transom applications. The anodes are available in zinc, aluminium and magnesium versions.

All three models measure 305 × 152 × 13 mm and feature two elongated mounting slots measuring 13 × 102 mm, with a centre-to-centre spacing of 140 mm. The anodes belong to the Tecnoseal HC 140-160 plate series.

Key Features

Manufacturer: Tecnoseal
Product Series: TEC-DIVERS
Product Type: Rectangular sacrificial plate anode with insert
Series: HC 140-160
Application: Marine hull and transom
Available Materials: Zinc, Aluminium, Magnesium
Dimensions: 305 × 152 × 13 mm
Mounting: Two elongated slots
Slot Spacing: 140 mm
Slot Dimensions: 13 × 102 mm

Technical Specifications

Parameter	Specification
Length (l)	305 mm / 12.01 in
Width (a)	152 mm / 5.98 in
Height (h)	13 mm / 0.51 in
Mounting Slot Spacing (i)	140 mm / 5.51 in
Mounting Slot Dimensions (Ø)	13 × 102 mm / 0.51 × 4.02 in
Number of Mounting Slots	2

Available Models

Product Code	Material	Weight
TEC-DIVERS	Zinc	3.50 kg / 7.72 lbs
TEC-DIVERS-AL	Aluminium	1.50 kg / 3.31 lbs
TEC-DIVERS-MG	Magnesium	1.25 kg / 2.76 lbs

Hull and Transom Application

These plate anodes are designed for marine hull and transom installations requiring a rectangular sacrificial anode with the specified mounting dimensions.

The zinc, aluminium and magnesium versions provide sacrificial corrosion protection for electrically connected metallic components. Select the appropriate material according to the vessel's operating water conditions and existing corrosion protection system.

Mounting and Replacement

All three models have two elongated mounting slots measuring 13 × 102 mm, with a centre-to-centre spacing of 140 mm.

Before ordering, compare the 305 × 152 × 13 mm dimensions and mounting arrangement with the existing anode.

Inspect sacrificial anodes periodically and replace them when sufficiently consumed.

Supply: One Tecnoseal TEC-DIVERS series rectangular plate anode in the selected material.
