ID
1400050
$ 5.95
1-2 weeks delivery time
Shaft Diameter:
- 22-25
- 30
- 35
- 40
- 45
- 50
- 55
- 60
E. Polipodio stainless steel washers for Radice shaft anodes, available for shaft sizes from Ø22–25 mm to Ø60 mm. The range includes eight sizes with outside dimension A from 38 to 90 mm and internal dimension B from 17 to 45 mm. Available E. Polipodio references are 00410R through 00417R, corresponding to FNI articles 2626091–2626098. Select the required washer according to shaft size and A/B dimensions.
- Description
- Ask a Question
-

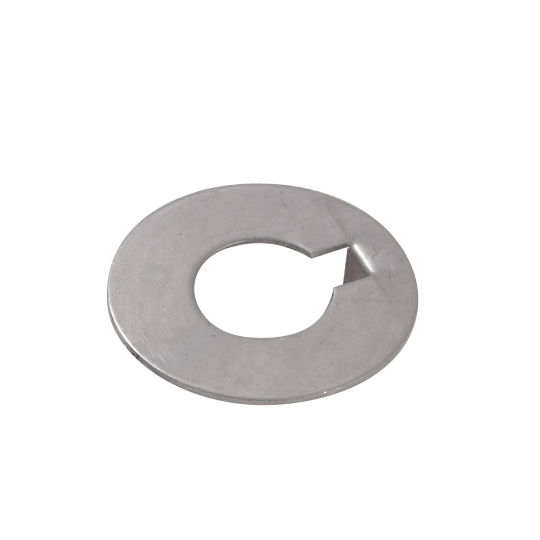

E. Polipodio Stainless Steel Washers for Radice Shaft Anodes – Shaft Ø22–60 mm
The E. Polipodio Stainless Steel Washers are designed for use with Radice shaft anodes. The range includes eight washer sizes for shafts from Ø22–25 mm up to Ø60 mm.
Depending on the selected model, dimension A ranges from 38 to 90 mm and dimension B from 17 to 45 mm. Each washer has a corresponding E. Polipodio reference and FNI article number for replacement identification.
Key Features
- Brand: E. Polipodio
- Product Type: Washer for Radice Shaft Anode
- Material: Stainless Steel
- Shaft Size Range: Ø22–25 to Ø60 mm
- Dimension A Range: 38–90 mm
- Dimension B Range: 17–45 mm
- Available E. Polipodio References: 00410R, 00411R, 00412R, 00413R, 00414R, 00415R, 00416R and 00417R
Available Models and Technical Specifications
E. Polipodio Reference FNI Article Shaft Size A B 00410R 2626091 Ø22–25 mm 38 mm 17 mm 00411R 2626092 Ø30 mm 46 mm 20 mm 00412R 2626093 Ø35 mm 51 mm 24 mm 00413R 2626094 Ø40 mm 53 mm 24 mm 00414R 2626095 Ø45 mm 66 mm 33 mm 00415R 2626096 Ø50 mm 76 mm 37 mm 00416R 2626098 Ø55 mm 81 mm 40 mm 00417R 2626097 Ø60 mm 90 mm 45 mm
E. Polipodio 00410R / FNI 2626091 – Shaft Ø22–25 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø22–25 mm
- A: 38 mm
- B: 17 mm
E. Polipodio 00411R / FNI 2626092 – Shaft Ø30 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø30 mm
- A: 46 mm
- B: 20 mm
E. Polipodio 00412R / FNI 2626093 – Shaft Ø35 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø35 mm
- A: 51 mm
- B: 24 mm
E. Polipodio 00413R / FNI 2626094 – Shaft Ø40 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø40 mm
- A: 53 mm
- B: 24 mm
E. Polipodio 00414R / FNI 2626095 – Shaft Ø45 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø45 mm
- A: 66 mm
- B: 33 mm
E. Polipodio 00415R / FNI 2626096 – Shaft Ø50 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø50 mm
- A: 76 mm
- B: 37 mm
E. Polipodio 00416R / FNI 2626098 – Shaft Ø55 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø55 mm
- A: 81 mm
- B: 40 mm
E. Polipodio 00417R / FNI 2626097 – Shaft Ø60 mm
- Material: Stainless Steel
- Application: Radice shaft anode
- Shaft Size: Ø60 mm
- A: 90 mm
- B: 45 mm
Dimensions for Model Selection
- Ø Shaft: Shaft size for the corresponding Radice shaft anode
- A: Overall washer diameter according to the catalogue drawing
- B: Internal washer dimension according to the catalogue drawing
For replacement selection, compare the shaft size together with dimensions A and B with the existing washer.
-
