E. Polipodio Zinc Riva Shaft Nut Anodes with Brass Cone, Shaft Ø22–45 mm

Name: E. Polipodio Zinc Riva Shaft Nut Anodes with Brass Cone, Shaft Ø22–45 mm
SKU: FNI 2626120

ID 1400074

$ 95.10

1-2 weeks delivery time

Shaft Diameter:

E. Polipodio zinc Riva shaft nut anodes with brass cone, available for Ø22, Ø25, Ø30 and Ø45 mm shafts. The range uses thread sizes from 16x1.5 to 30x2, with body diameter A of 38 or 52 mm and overall height H of 65 or 88 mm depending on the selected model. The Ø22, Ø25 and Ø30 mm versions share a 38 mm body diameter and 65 mm height, while the Ø45 mm version measures 52 mm in diameter and 88 mm in height. Select the required version according to shaft diameter, thread size and overall anode dimensions.

Description
Ask a Question

E. Polipodio Zinc Riva Shaft Nut Anodes with Brass Cone – Shaft Ø22–45 mm

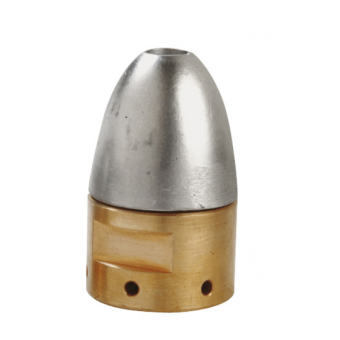

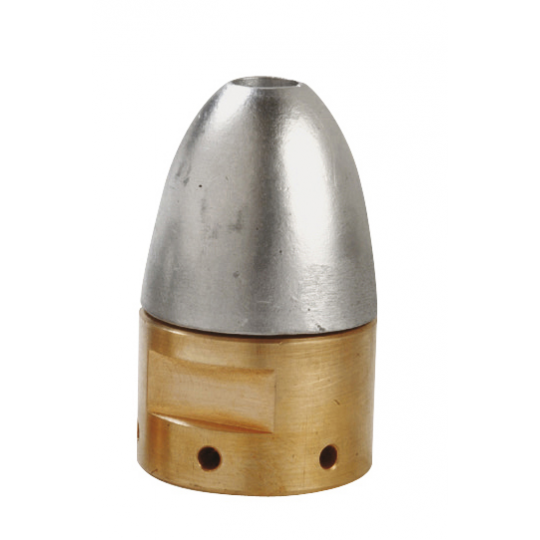

The E. Polipodio Zinc Riva Shaft Nut Anodes are shaft-mounted zinc anodes supplied with a brass cone. Four versions are available for Ø22, Ø25, Ø30 and Ø45 mm shafts, each with a corresponding thread size and body dimensions.

The Ø22, Ø25 and Ø30 mm shaft versions have an outside dimension A of 38 mm and an overall height H of 65 mm. The larger Ø45 mm model has an A dimension of 52 mm and a height of 88 mm. Available thread sizes range from 16x1.5 to 30x2.

Key Features

Brand: E. Polipodio
Type: Riva Shaft Nut Anode
Material: Zinc
Insert: Brass Cone
Shaft Sizes: Ø22, Ø25, Ø30 and Ø45 mm
Thread Range: 16x1.5 to 30x2
A Dimension: 38 or 52 mm
Height H: 65 or 88 mm

Available Models and Technical Specifications

E. Polipodio Reference	FNI Code	Shaft Ø	Thread Ø	A	H
RI00116X15	2626120	22 mm	16x1.5	38 mm	65 mm
RI00218X15	2626121	25 mm	18x1.5	38 mm	65 mm
446	2626122	30 mm	20x1.5	38 mm	65 mm
RI01130X2	2626125	45 mm	30x2	52 mm	88 mm
