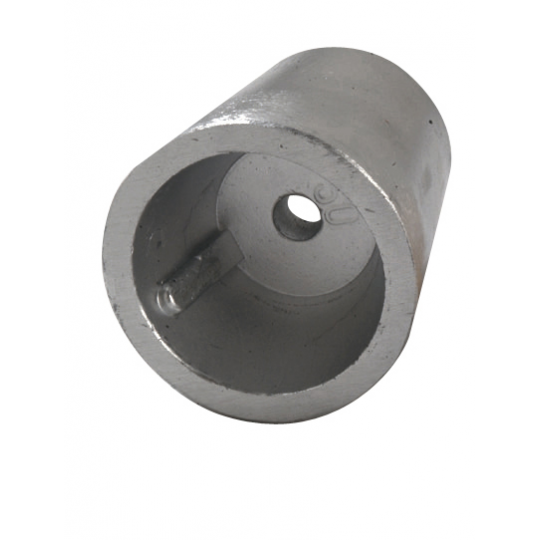

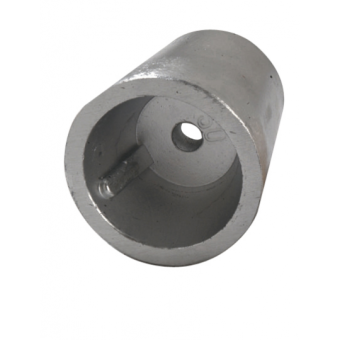

E. Polipodio Zinc Spare Conical Radice-Type Shaft Anodes with Side Fastening, Shaft Ø22–100 mm

Name: E. Polipodio Zinc Spare Conical Radice-Type Shaft Anodes with Side Fastening, Shaft Ø22–100 mm
SKU: FNI 2626110
Rating: 5 (1 reviews)

ID 1400065

$ 9.03

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50
55
60

E. Polipodio zinc spare conical shaft anodes for Radice-type installations with side fastening, available for shaft sizes from Ø22–25 mm up to Ø70–80–90–100 mm. The range includes nine dimensional configurations with overall A dimensions from 33 to 98 mm, B dimensions from 25 to 84.5 mm and heights from 39 to 98 mm. Individual models are available for Ø22–25, 30, 35, 40, 45, 50, 55 and 60 mm shafts, plus a larger version for Ø70/80/90/100 mm applications. Select the required version according to shaft diameter and A, B and H dimensions.

Description
Ask a Question

E. Polipodio Zinc Spare Conical Radice-Type Shaft Anodes with Side Fastening – Shaft Ø22–100 mm

The E. Polipodio Zinc Spare Conical Shaft Anodes are designed for Radice-type shaft installations and use a side-fastening configuration. The range includes nine variants for different shaft diameters and corresponding anode dimensions.

Available versions cover shaft sizes from Ø22–25 mm up to Ø70–80–90–100 mm. Depending on the model, dimension A ranges from 33 to 98 mm, dimension B from 25 to 84.5 mm and height H from 39 to 98 mm.

Key Features

Brand: E. Polipodio
Type: Spare Conical Shaft Anode
Profile: Radice Type
Material: Zinc
Fastening: Side Fastening
Shaft Size Range: Ø22–25 mm to Ø70–80–90–100 mm
A Range: 33–98 mm
B Range: 25–84.5 mm
Height H Range: 39–98 mm

Available Models and Technical Specifications

E. Polipodio Reference	FNI Code	Shaft Size	A	B	H
RA002	2626110	Ø22–25 mm	33 mm	25 mm	39 mm
RA005	2626111	Ø30 mm	42 mm	32 mm	53 mm
RA008	2626112	Ø35 mm	46 mm	38 mm	61 mm
RA011	2626113	Ø40 mm	51 mm	42 mm	68 mm
RA014	2626114	Ø45 mm	61 mm	48 mm	76 mm
RA017	2626115	Ø50 mm	73 mm	57 mm	84 mm
RA020	2626117	Ø55 mm	75 mm	65 mm	87 mm
RA023	2626116	Ø60 mm	82 mm	71 mm	98 mm
—	2626118	Ø70–80–90–100 mm	98 mm	84.5 mm	98 mm
