ID
1400059
$ 79.36
1-2 weeks delivery time
Shaft Diameter:
- 22-25
- 30
- 35
- 40
- 45
E. Polipodio zinc shaft nut anodes for Radice type shaft installations, manufactured with a taper universal thread and available in five configurations for shaft sizes from Ø22–25 to Ø45 mm. Thread sizes range from 16x1.5 to 33x2, with individual configurations of 16x1.5, 20x1.5, 24x2 and 33x2 depending on shaft diameter. E. Polipodio references 410–414 correspond to FNI articles 2626101–2626105. Select the required version according to shaft diameter and thread size.
- Description
- Ask a Question
-

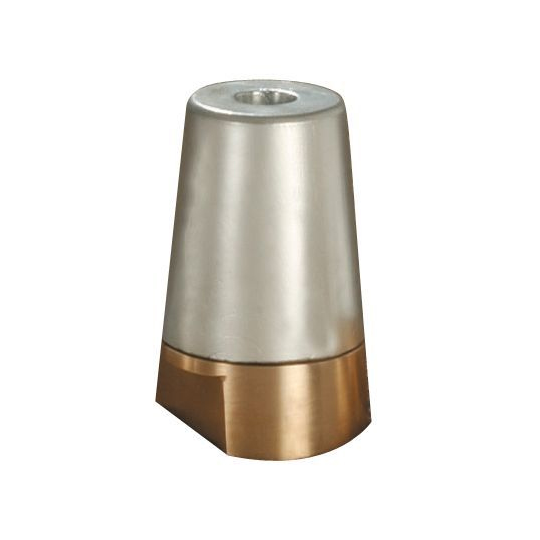

E. Polipodio Zinc Radice Type Shaft Nut Anodes with Taper Universal Thread – Shaft Ø22–45 mm
The E. Polipodio Zinc Shaft Nut Anodes are Radice-type shaft anodes manufactured with a taper universal thread. The range includes five configurations for shaft sizes from Ø22–25 mm up to Ø45 mm.
Each model combines a specific shaft size with the corresponding thread dimension. Available thread configurations are 16x1.5, 20x1.5, 24x2 and 33x2.
Key Features
- Brand: E. Polipodio
- Product Type: Shaft Nut Anode
- Type: Radice Type
- Material: Zinc
- Thread Type: Taper Universal Thread
- Shaft Size Range: Ø22–25 to Ø45 mm
- Available Thread Sizes: 16x1.5, 20x1.5, 24x2 and 33x2
- E. Polipodio References: 410, 411, 412, 413 and 414
- FNI Articles: 2626101, 2626102, 2626103, 2626104 and 2626105
Available Models and Technical Specifications
E. Polipodio Reference FNI Article Shaft Size Thread 410 2626101 Ø22–25 mm 16x1.5 411 2626102 Ø30 mm 20x1.5 412 2626103 Ø35 mm 24x2 413 2626104 Ø40 mm 24x2 414 2626105 Ø45 mm 33x2
E. Polipodio 410 / FNI 2626101 – Shaft Ø22–25 mm
- Material: Zinc
- Type: Radice Type Shaft Nut Anode
- Shaft Size: Ø22–25 mm
- Thread: 16x1.5
- Thread Type: Taper Universal Thread
E. Polipodio 411 / FNI 2626102 – Shaft Ø30 mm
- Material: Zinc
- Type: Radice Type Shaft Nut Anode
- Shaft Size: Ø30 mm
- Thread: 20x1.5
- Thread Type: Taper Universal Thread
E. Polipodio 412 / FNI 2626103 – Shaft Ø35 mm
- Material: Zinc
- Type: Radice Type Shaft Nut Anode
- Shaft Size: Ø35 mm
- Thread: 24x2
- Thread Type: Taper Universal Thread
E. Polipodio 413 / FNI 2626104 – Shaft Ø40 mm
- Material: Zinc
- Type: Radice Type Shaft Nut Anode
- Shaft Size: Ø40 mm
- Thread: 24x2
- Thread Type: Taper Universal Thread
E. Polipodio 414 / FNI 2626105 – Shaft Ø45 mm
- Material: Zinc
- Type: Radice Type Shaft Nut Anode
- Shaft Size: Ø45 mm
- Thread: 33x2
- Thread Type: Taper Universal Thread
Model Selection
- Ø Shaft: Nominal shaft diameter for the selected anode
- Ø Thread: Thread diameter and pitch according to the selected model
For replacement selection, compare both the shaft diameter and thread size with the existing Radice-type shaft nut anode.
-
