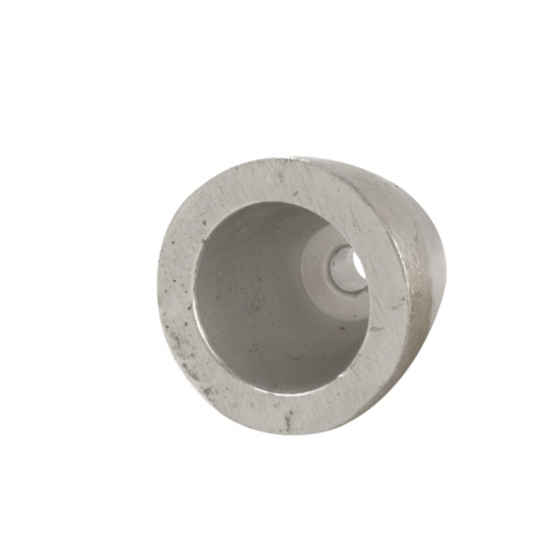

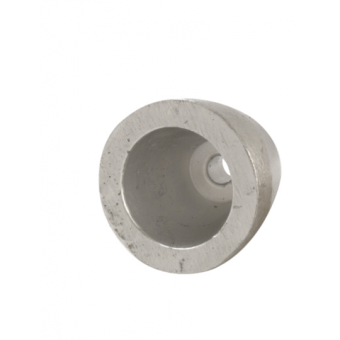

E. Polipodio Zinc Spare Riva Shaft Nut Anodes, Shaft Ø20–45 mm

ID 1400079

$ 34.84

1-2 weeks delivery time

Shaft Diameter:

45
20-25-30
35-40

E. Polipodio zinc spare Riva shaft nut anodes, available in three configurations covering Ø20, Ø25, Ø30, Ø35, Ø40 and Ø45 mm shafts. The Ø20–25–30 mm version measures 38 mm in diameter A and 37 mm in height H, while the Ø35–40 mm and Ø45 mm versions measure 52 mm in diameter A and 59 mm in height H. Select the required replacement anode according to shaft diameter and overall dimensions.

Description
Ask a Question

E. Polipodio Zinc Spare Riva Shaft Nut Anodes – Shaft Ø20–45 mm

The E. Polipodio Zinc Spare Riva Shaft Nut Anodes are replacement zinc anodes for Riva shaft nut installations. The range includes three versions covering shaft diameters from Ø20 to Ø45 mm.

The compact version for Ø20, Ø25 and Ø30 mm shafts has an A dimension of 38 mm and an overall height H of 37 mm. The larger versions for Ø35–40 mm and Ø45 mm shafts share an A dimension of 52 mm and a height H of 59 mm.

Key Features
- Brand: E. Polipodio
- Type: Spare Riva Shaft Nut Anode
- Material: Zinc
- Shaft Size Range: Ø20–45 mm
- Available Shaft Sizes: Ø20, Ø25, Ø30, Ø35, Ø40 and Ø45 mm
- A Dimension: 38 or 52 mm
- Height H: 37 or 59 mm
Available Models and Technical Specifications

E. Polipodio Reference FNI Code Shaft Ø A H

RI006 2626127 20 / 25 / 30 mm 38 mm 37 mm

431 2626128 35 / 40 mm 52 mm 59 mm

RI013 2626129 45 mm 52 mm 59 mm

E. Polipodio RI006 / FNI 2626127 – Shaft Ø20–25–30 mm
- Material: Zinc
- Type: Spare Riva shaft nut anode
- Shaft Sizes: Ø20, Ø25 and Ø30 mm
- A: 38 mm
- Height H: 37 mm
E. Polipodio 431 / FNI 2626128 – Shaft Ø35–40 mm
- Material: Zinc
- Type: Spare Riva shaft nut anode
- Shaft Sizes: Ø35 and Ø40 mm
- A: 52 mm
- Height H: 59 mm
E. Polipodio RI013 / FNI 2626129 – Shaft Ø45 mm
- Material: Zinc
- Type: Spare Riva shaft nut anode
- Shaft Size: Ø45 mm
- A: 52 mm
- Height H: 59 mm
Dimensions for Model Selection
- Shaft Ø: Shaft diameter or group of compatible shaft diameters
- A: Maximum outside diameter according to the catalogue drawing
- H: Overall anode height
For replacement selection, compare the shaft diameter, A dimension and overall height H with the existing Riva shaft nut installation.
