ID
1400094
$ 24.13
1-2 weeks delivery time
Shaft Diameter:
- 20
- 25
- 30
- 32
- 35
- 38
- 40
- 45
- 50
- 55
- 60
- 70
- 75
- 90
E. Polipodio zinc collar anodes for propeller shafts, available for shaft diameters from Ø20 to Ø90 mm. The catalogue range includes Ø20, 25, 30, 32, 35, 38, 40, 45, 50, 55, 60, 70, 75 and 90 mm shaft configurations. For the Ø20–75 mm models, collar height H ranges from 56 to 107 mm, with corresponding imperial shaft dimensions from 0.75" to 2.95". Select the required collar according to propeller shaft diameter and collar height.
- Description
- Ask a Question
-

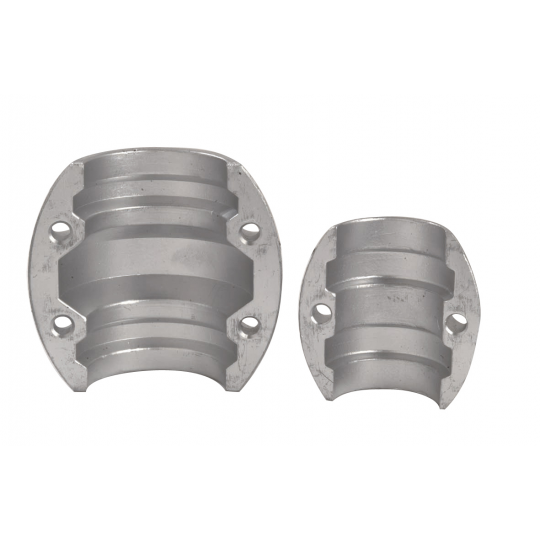

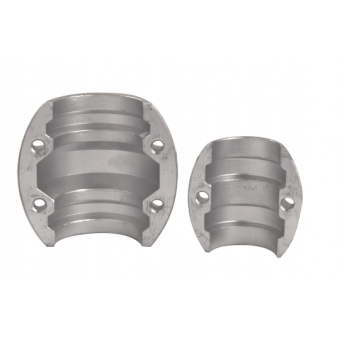

E. Polipodio Zinc Collar Anodes for Propeller Shafts – Shaft Ø20–90 mm
The E. Polipodio Zinc Collar Anodes are designed for propeller shaft installations and are available in a wide range of shaft diameters. Available configurations cover shaft sizes from Ø20 mm up to Ø90 mm.
The catalogue includes Ø20, 25, 30, 32, 35, 38, 40, 45, 50, 55, 60, 70, 75 and 90 mm versions. For the Ø20–75 mm models, the corresponding collar height H ranges from 56 to 107 mm. Both metric shaft diameters and their corresponding inch dimensions are provided for model selection.
Key Features
- Brand: E. Polipodio
- Product Type: Collar anode for propeller shafts
- Material: Zinc
- Shaft Diameter Range: Ø20–90 mm
- Available Shaft Sizes: Ø20, 25, 30, 32, 35, 38, 40, 45, 50, 55, 60, 70, 75 and 90 mm
- Height H: 56–107 mm for the Ø20–75 mm catalogue versions
Available Models and Technical Specifications
E. Polipodio Reference FNI Code Shaft Ø Shaft Size Inch Height H AN002 2626140 20 mm 0.75" 56 mm AN004 2626141 25 mm 0.98" 56 mm AN008 2626142 30 mm 1.18" 56 mm AN009 2626143 32 mm 1.25" 56 mm AN011 2626144 35 mm 1.38" 66 mm AN012 2626145 38 mm 1.50" 66 mm AN013 2626146 40 mm 1.57" 77 mm AN015 2626147 45 mm 1.77" 77 mm AN016 2626148 50 mm 1.97" 88 mm 515 2626152 55 mm 2.17" 88 mm AN022 2626149 60 mm 2.36" 100 mm AN025 2626150 70 mm 2.76" 107 mm 521 2626151 75 mm 2.95" 107 mm AN029 2626154 90 mm — —
E. Polipodio AN002 / FNI 2626140 – Shaft Ø20 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø20 mm / 0.75 in
- Height H: 56 mm
E. Polipodio AN004 / FNI 2626141 – Shaft Ø25 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø25 mm / 0.98 in
- Height H: 56 mm
E. Polipodio AN008 / FNI 2626142 – Shaft Ø30 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø30 mm / 1.18 in
- Height H: 56 mm
E. Polipodio AN009 / FNI 2626143 – Shaft Ø32 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø32 mm / 1.25 in
- Height H: 56 mm
E. Polipodio AN011 / FNI 2626144 – Shaft Ø35 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø35 mm / 1.38 in
- Height H: 66 mm
E. Polipodio AN012 / FNI 2626145 – Shaft Ø38 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø38 mm / 1.50 in
- Height H: 66 mm
E. Polipodio AN013 / FNI 2626146 – Shaft Ø40 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø40 mm / 1.57 in
- Height H: 77 mm
E. Polipodio AN015 / FNI 2626147 – Shaft Ø45 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø45 mm / 1.77 in
- Height H: 77 mm
E. Polipodio AN016 / FNI 2626148 – Shaft Ø50 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø50 mm / 1.97 in
- Height H: 88 mm
E. Polipodio 515 / FNI 2626152 – Shaft Ø55 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø55 mm / 2.17 in
- Height H: 88 mm
E. Polipodio AN022 / FNI 2626149 – Shaft Ø60 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø60 mm / 2.36 in
- Height H: 100 mm
E. Polipodio AN025 / FNI 2626150 – Shaft Ø70 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø70 mm / 2.76 in
- Height H: 107 mm
E. Polipodio 521 / FNI 2626151 – Shaft Ø75 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø75 mm / 2.95 in
- Height H: 107 mm
E. Polipodio AN029 / FNI 2626154 – Shaft Ø90 mm
- Material: Zinc
- Type: Collar for propeller shafts
- Shaft Diameter: Ø90 mm
Dimensions for Model Selection
- Shaft Ø: Propeller shaft diameter for the selected collar
- H: Overall collar height
Select the required model according to the propeller shaft diameter and the corresponding collar height.
-
