ID
1400083
$ 45.68
1-2 weeks delivery time
Shaft Diameter:
- 45
- 35-40
- 20-22-25-30
E. Polipodio zinc spare ogive shaft nut anodes with horizontal pin, available in three configurations for shaft diameters from Ø20 to Ø45 mm. The smallest version fits Ø20, Ø22, Ø25 and Ø30 mm shafts and measures Ø38 x H38 mm with Ø1 29 mm and Ø2 8 mm. The Ø35–40 mm version measures Ø52 x H50 mm with Ø1 40 mm and Ø2 8 mm, while the Ø45 mm version measures Ø66 x H73 mm with Ø1 46 mm and Ø2 8 mm. Select the required replacement anode according to shaft diameter and dimensional configuration.
- Description
- Ask a Question
-

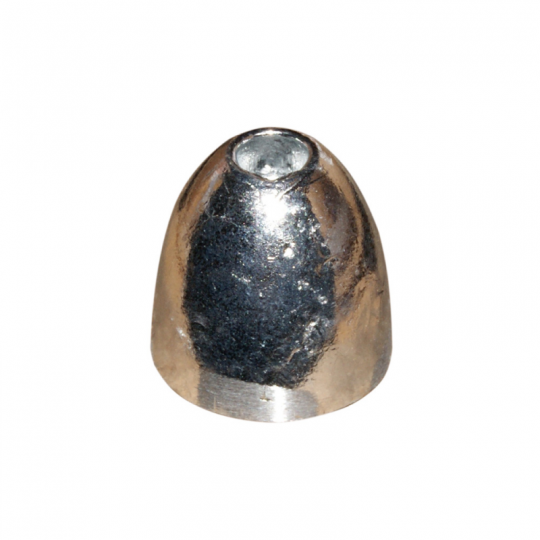

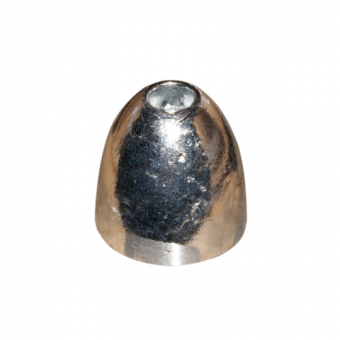

E. Polipodio Zinc Spare Ogive Shaft Nut Anodes with Horizontal Pin – Shaft Ø20–45 mm
The E. Polipodio Zinc Spare Ogive Shaft Nut Anodes are replacement shaft nut anodes with horizontal pin fastening. The range includes three dimensional configurations covering shaft diameters from Ø20 to Ø45 mm.
The smallest model is suitable for Ø20, Ø22, Ø25 and Ø30 mm shafts. Additional versions are available for Ø35–40 mm and Ø45 mm shafts. All three models use an Ø2 dimension of 8 mm, while overall diameter, Ø1 and height H increase according to shaft size.
Key Features
- Brand: E. Polipodio
- Type: Spare Ogive Shaft Nut Anode
- Material: Zinc
- Fastening: Horizontal Pin
- Shaft Size Range: Ø20–45 mm
- Available Shaft Sizes: Ø20, Ø22, Ø25, Ø30, Ø35, Ø40 and Ø45 mm
- Overall Diameter (Ø): 38–66 mm
- Ø1: 29–46 mm
- Ø2: 8 mm
- Height H: 38–73 mm
Available Models and Technical Specifications
E. Polipodio Reference FNI Code Shaft Ø Overall Ø Ø1 Ø2 Height H OG001C 2626130 20 / 22 / 25 / 30 mm 38 mm 29 mm 8 mm 38 mm OG002 2626131 35 / 40 mm 52 mm 40 mm 8 mm 50 mm — 2626132 45 mm 66 mm 46 mm 8 mm 73 mm
E. Polipodio OG001C / FNI 2626130 – Shaft Ø20–22–25–30 mm
- Material: Zinc
- Type: Spare ogive shaft nut anode
- Fastening: Horizontal pin
- Shaft Sizes: Ø20, Ø22, Ø25 and Ø30 mm
- Overall Diameter (Ø): 38 mm
- Ø1: 29 mm
- Ø2: 8 mm
- Height H: 38 mm
E. Polipodio OG002 / FNI 2626131 – Shaft Ø35–40 mm
- Material: Zinc
- Type: Spare ogive shaft nut anode
- Fastening: Horizontal pin
- Shaft Sizes: Ø35 and Ø40 mm
- Overall Diameter (Ø): 52 mm
- Ø1: 40 mm
- Ø2: 8 mm
- Height H: 50 mm
E. Polipodio / FNI 2626132 – Shaft Ø45 mm
- Material: Zinc
- Type: Spare ogive shaft nut anode
- Fastening: Horizontal pin
- Shaft Size: Ø45 mm
- Overall Diameter (Ø): 66 mm
- Ø1: 46 mm
- Ø2: 8 mm
- Height H: 73 mm
Dimensions for Model Selection
- Shaft Ø: Compatible shaft diameter
- Ø: Overall outside diameter of the anode
- Ø1: Internal lower diameter according to the catalogue drawing
- Ø2: Internal central diameter according to the catalogue drawing
- H: Overall anode height
For replacement selection, compare the shaft diameter, overall Ø, Ø1, Ø2 and height H with the existing shaft nut installation.
-
