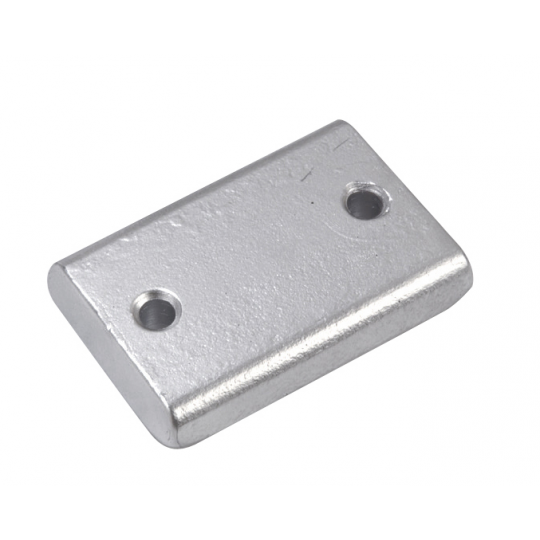

E. Polipodio Rectangular Zinc Sacrificial Anodes for Flap Systems

Name: E. Polipodio Rectangular Zinc Sacrificial Anodes for Flap Systems
SKU: FNI 2626010

ID 1400027

$ 32.06

1-2 weeks delivery time

Size:

73x48x10 C50
110x67x20 C57
130x50x17 C77
190x54x24 C76

Item:

330 g
1450 g
970 g
685 g

E. Polipodio rectangular zinc sacrificial anodes for marine flap installations, available in four sizes. The range includes anode body dimensions of 73x48x10 mm, 110x67x20 mm, 130x50x17 mm and 190x54x24 mm, with mounting-hole centre distances (C) of 50, 57, 77 and 76 mm respectively. Anode weights range from 0.330 to 1.450 kg. Select the required version according to length A, width B, height D, mounting-hole spacing C and weight.

Description
Ask a Question

E. Polipodio Rectangular Zinc Sacrificial Anodes for Flap Systems – 73–190 mm

The E. Polipodio Rectangular Zinc Sacrificial Anodes are rectangular marine anodes for flap installations. The range includes four configurations with different body dimensions, mounting-hole spacing and weights.

Available anodes range from 73 to 190 mm in length, from 48 to 67 mm in width and from 10 to 24 mm in height. The mounting-hole centre distance (C) varies from 50 to 77 mm, while individual anode weights range from 0.330 to 1.450 kg.

Key Features

Brand: E. Polipodio
Type: Rectangular Sacrificial Anode
Material: Zinc
Application: Flap installations
Length A: 73–190 mm
Width B: 48–67 mm
Mounting-Hole Centre Distance C: 50–77 mm
Height D: 10–24 mm
Weight Range: 0.330–1.450 kg

Available Models and Technical Specifications

E. Polipodio Reference	FNI Code	A	B	C	D	Weight
219	2626010	73 mm	48 mm	50 mm	10 mm	0.330 kg / 330 g
212	2626013	110 mm	67 mm	57 mm	20 mm	0.970 kg / 970 g
213	2626016	130 mm	50 mm	77 mm	17 mm	0.685 kg / 685 g
239	2626018	190 mm	54 mm	76 mm	24 mm	1.450 kg / 1450 g
