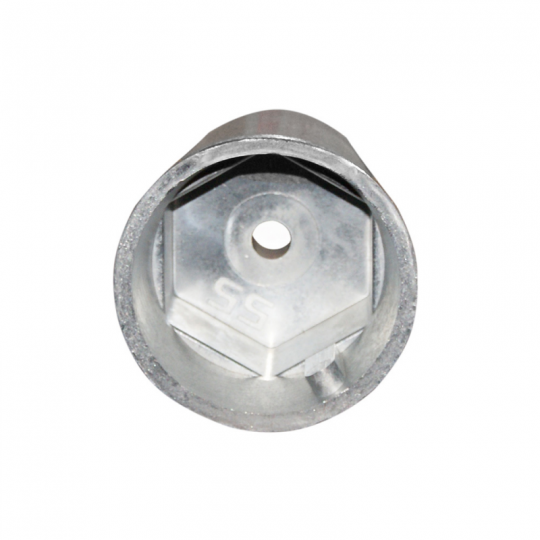

E. Polipodio Zinc Spare Conical Shaft Anodes Radice Type with Hexagonal Screw, Shaft Ø22–50 mm

Name: E. Polipodio Zinc Spare Conical Shaft Anodes Radice Type with Hexagonal Screw, Shaft Ø22–50 mm
SKU: FNI 2626133

ID 1400087

$ 10.15

1-2 weeks delivery time

Shaft Diameter:

22-25
30
35
40
45
50

E. Polipodio zinc spare conical shaft anodes for Radice-type shaft installations, featuring hexagonal screw fastening and available in eight configurations for shaft diameters from Ø22–25 to Ø60 mm. Depending on the selected version, dimension A ranges from 34 to 82 mm, dimension B from 22 to 55 mm and overall height H from 39 to 98 mm. Available shaft sizes are Ø22–25, Ø30, Ø35, Ø40, Ø45, Ø50, Ø55 and Ø60 mm. Select the required replacement anode according to shaft diameter and A, B and H dimensions.

Description
Ask a Question

E. Polipodio Zinc Spare Conical Shaft Anodes Radice Type with Hexagonal Screw – Shaft Ø22–60 mm

The E. Polipodio Zinc Spare Conical Shaft Anodes are Radice-type replacement shaft anodes with hexagonal screw fastening. The range includes eight configurations for shaft diameters from Ø22–25 mm up to Ø60 mm.

Depending on the selected model, dimension A ranges from 34 to 82 mm, dimension B from 22 to 55 mm and overall height H from 39 to 98 mm. Available shaft sizes include Ø22–25, Ø30, Ø35, Ø40, Ø45, Ø50, Ø55 and Ø60 mm.

Key Features

Brand: E. Polipodio
Type: Spare Conical Shaft Anode
Design: Radice Type
Material: Zinc
Fastening: Hexagonal Screw
Available Shaft Sizes: Ø22–25, Ø30, Ø35, Ø40, Ø45, Ø50, Ø55 and Ø60 mm
Dimension A Range: 34–82 mm
Dimension B Range: 22–55 mm
Height H Range: 39–98 mm

Available Models and Technical Specifications

E. Polipodio Reference	FNI Code	Shaft Ø	A	B	Height H
RA030	2626133	22–25 mm	34 mm	22 mm	39 mm
RA031	2626134	30 mm	43 mm	27 mm	53 mm
RA032	2626135	35 mm	46 mm	32 mm	62 mm
RA033	2626136	40 mm	52 mm	36 mm	67 mm
RA034	2626137	45 mm	61 mm	41 mm	76 mm
00405E	2626138	50 mm	73 mm	46 mm	84 mm
—	2626126	55 mm	75 mm	50 mm	87 mm
—	2626139	60 mm	82 mm	55 mm	98 mm
