The Maxwell RC10-8 12V 1200W 150TDC CW Vertical Anchor Windlass (Vetus P105844) is a high-power automatic rope/chain windlass designed for vessels requiring increased deck clearance and enhanced performance on 12-volt systems. Equipped with a 1200 W motor, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The 150 TDC configuration supports installation on thicker decks, while the CW chainwheel-only design ensures reliable anchor deployment and retrieval without a capstan drum.
- Description
- Ask a Question
-

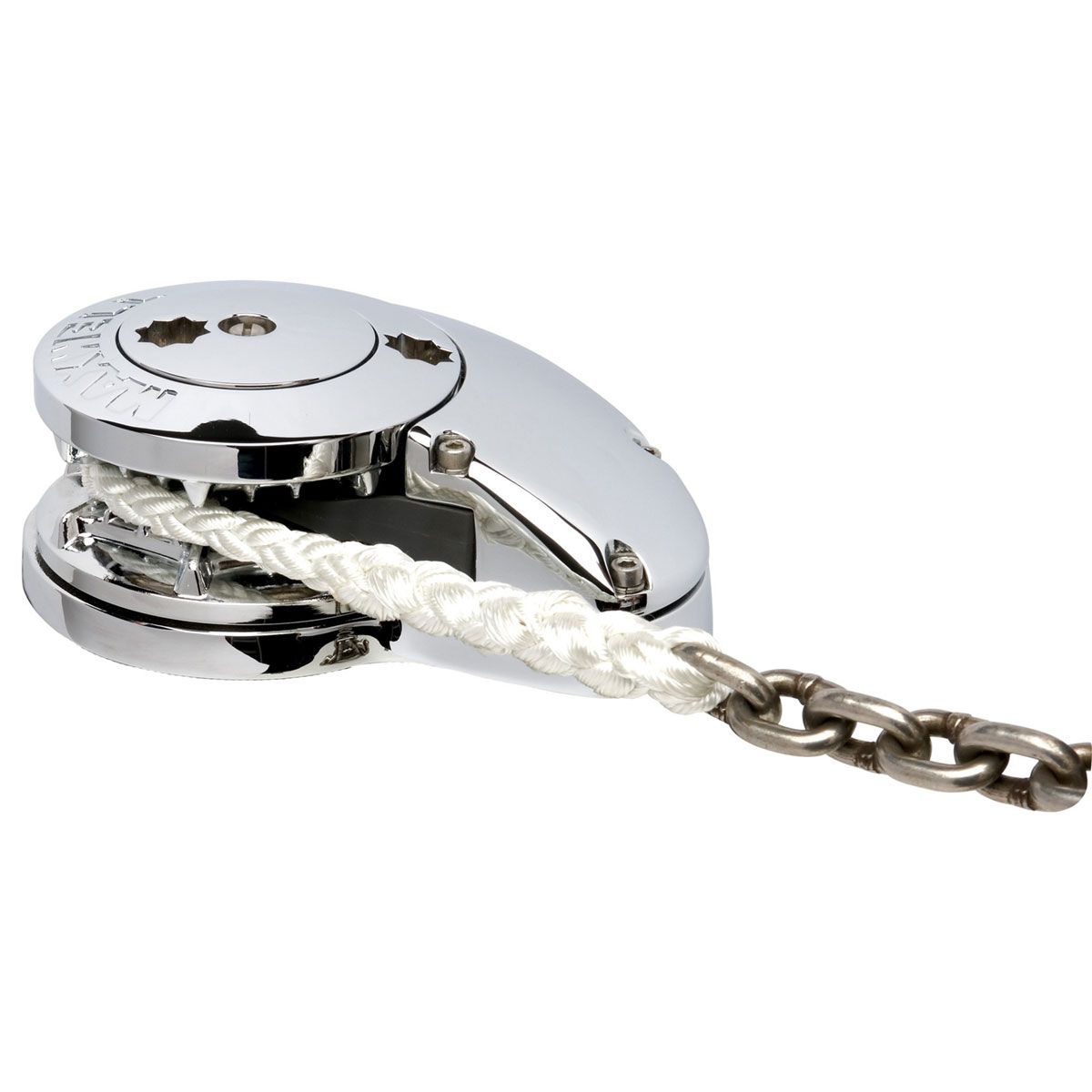

Maxwell RC10-8 12V 1200W 150TDC CW Vertical Anchor Windlass (Vetus P105844)
The Maxwell RC10-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for dependable anchoring on cruising yachts and powerboats. This version features an increased Total Deck Clearance of 150 TDC, allowing installation on vessels with thicker deck structures or specific mounting requirements.
Powered by a high-output 1200 W motor operating on a 12 V DC supply, this windlass provides enhanced performance compared to standard 1000 W configurations. The chainwheel-only design is optimized for efficient rope and chain handling during standard anchoring operations.
Specification Value Vetus Part Number P105844 Model RC10-8 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 150 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Vertical automatic rope/chain anchor windlass
- High-output 1200 W motor for enhanced 12 V system performance
- Increased 150 TDC deck clearance for thicker deck installations
- Chainwheel-only configuration without capstan drum
- Marine-grade stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
