The Maxwell RC10-8 12V 1200W 100TDC CW Vertical Anchor Windlass with Drum (Vetus P105842) is a high-power automatic rope/chain windlass designed for vessels operating on 12-volt electrical systems. Equipped with a 1200 W motor, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The standard 100 TDC configuration supports efficient deck installation, while the integrated capstan drum allows independent rope handling alongside normal anchoring operations.
- Description
- Ask a Question
-

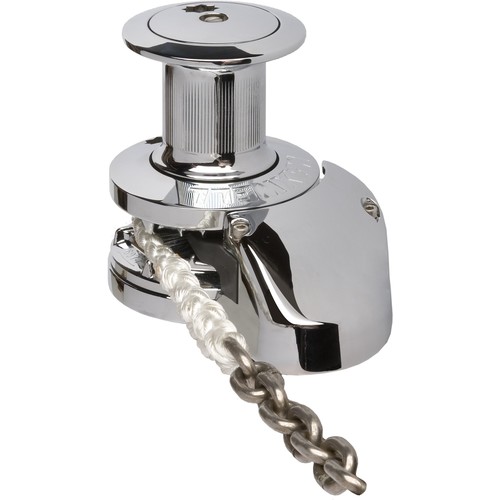

Maxwell RC10-8 12V 1200W 100TDC CW Vertical Anchor Windlass with Drum (Vetus P105842)
The Maxwell RC10-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for reliable anchoring performance on cruising yachts and powerboats. This version is fitted with a higher-output 1200 W motor operating on a 12 V DC power supply, providing increased performance compared to standard 1000 W configurations.
This capstan version is supplied with a fluted stainless steel drum, enabling independent rope handling operations in addition to standard anchor deployment and retrieval. The windlass is manufactured from marine-grade stainless steel and chromed bronze, ensuring durability and corrosion resistance in demanding marine environments.
Specification Value Vetus Part Number P105842 Model RC10-8 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 100 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Vertical automatic rope/chain anchor windlass
- High-output 1200 W motor for enhanced performance on 12 V systems
- Integrated capstan drum for independent rope handling operations
- Standard 100 TDC deck clearance configuration
- Marine-grade stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
