The Maxwell RC10-10 Hydraulic 100TDC CW Vertical Anchor Windlass with Drum (Vetus P102599) is a hydraulic automatic rope/chain windlass designed for vessels up to 53 feet. Featuring a powerful hydraulic drive equivalent to a 1200 W motor, a standard 100 TDC deck clearance and clockwise rotation, this capstan-equipped model supports 10 mm (3/8") chain and 16 mm (5/8") nylon rope for reliable anchoring and independent rope handling in demanding marine applications.
- Description
- Ask a Question
-

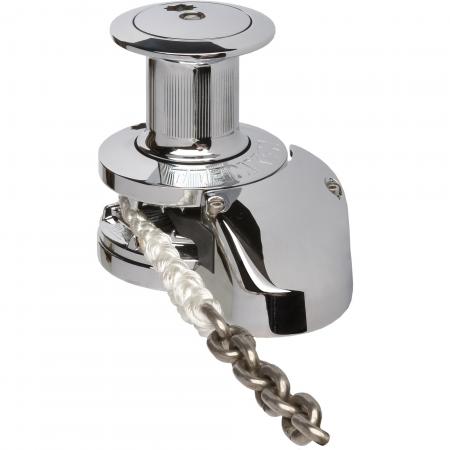

Maxwell RC10-10 Hydraulic 100TDC CW Vertical Anchor Windlass with Drum (Vetus P102599)
The Maxwell RC10-10 Hydraulic is a fully automatic vertical rope/chain anchor windlass from the upper mid-range Maxwell RC10 Series, engineered for vessels requiring hydraulic power systems and dependable anchoring performance. This model is supplied with an integral capstan drum for independent rope handling operations in addition to standard chain retrieval and deployment.
Designed for installation with a 100 TDC (Total Deck Clearance) configuration and clockwise (CW) rotation, this hydraulic windlass provides smooth, efficient anchor handling while accommodating thicker deck installations. Constructed from marine-grade stainless steel (AISI 316) and chromed bronze, it ensures long-term corrosion resistance and durability in harsh marine environments. Its hydraulic drive system delivers performance equivalent to a 1200 W electric unit, making it suitable for demanding anchoring tasks on cruising and commercial vessels.
Specification Value Vetus Part Number P102599 Model RC10-10 Hydraulic Series Maxwell RC10 Series Drive Type Hydraulic (equivalent to 1200 W) Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 100 TDC Maximum Pull / Lift Approximately 850 kg Static Hold 1500 kg Chain Speed (Retrieval) 24 m/min Rope Speed (Retrieval) 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8") DIN 766
- Chain diameter: 10 mm
- Recommended rope types: 3-strand or 8-plait nylon
- Rope diameter: 16 mm (5/8")
Recommended Vessel Size
- Up to 53 ft (light displacement)
- Up to 48 ft (heavy displacement)
Key Features
- Hydraulic vertical automatic rope/chain anchor windlass
- Integrated capstan drum for independent rope handling
- 100 TDC standard deck clearance
- Marine-grade stainless steel and chromed bronze construction
- Designed for demanding anchoring conditions
Operational Notes
- The windlass must be used with a chain stopper and/or alternative snubbing device to relieve load while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while underway.
-
