ID
1281750
$ 3,042.21
1-2 weeks delivery time
-
+
The Maxwell RC10-10 12V 1200W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105441) is a fully automatic rope/chain windlass designed for vessels requiring increased deck clearance and independent rope handling. Powered by a 12 V DC, 1200 W motor, this vertical RC10 Series model is suitable for 10 mm (3/8") DIN 766 chain and 16 mm (5/8") nylon rope. The 150 TDC configuration supports installation on thicker decks, while the integrated capstan drum enables versatile foredeck operations.
- Description
- Ask a Question
-

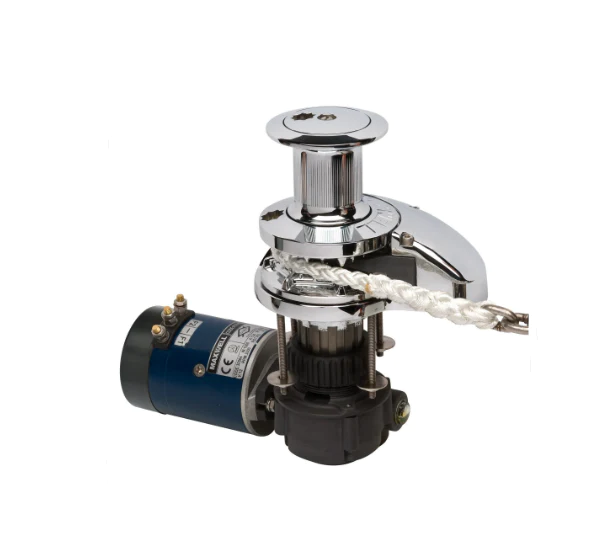

Maxwell RC10-10 12V 1200W 150TDC CW Vertical Anchor Windlass with Drum (Vetus P105441)
The Maxwell RC10-10 is a fully automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for demanding anchoring applications on cruising yachts and powerboats. This version features an increased Total Deck Clearance of 150 TDC, allowing installation on vessels with thicker deck structures or specific mounting requirements.
Manufactured from marine-grade stainless steel (AISI 316) and chromed bronze, the RC10-10 offers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel, combined with a heavy-duty stainless steel pressure arm and preloaded spring system, ensures secure control of rope, chain, and the rope-to-chain splice during anchoring operations.
This capstan version is equipped with a fluted stainless steel drum, enabling independent rope handling operations in addition to standard anchor deployment and retrieval. Driven by a high-output 1200 W motor operating on a 12 V DC supply, the windlass delivers reliable performance for vessels up to approximately 53 feet.
Specification Value Vetus Part Number P105441 Model RC10-10 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum Yes, fluted stainless steel capstan drum Total Deck Clearance 150 TDC Maximum Pull / Lift 850 kg Static Hold 1500 kg Chain Speed (Retrieval) 24 m/min Rope Speed (Retrieval) 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8") DIN 766
- Chain diameter: 10 mm
- Recommended rope types: 3-strand or 8-plait nylon
- Rope diameter: 16 mm (5/8")
Recommended Vessel Size
- Up to 53 ft (light displacement)
- Up to 48 ft (heavy displacement)
Key Features
- Vertical automatic rope/chain anchor windlass
- 12 V, 1200 W motor for high pulling performance
- Integrated capstan drum for independent rope handling
- Increased 150 TDC deck clearance for thick deck installations
- Wave Design™ chainwheel for smooth operation and extended rope life
- Marine-grade AISI 316 stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
