ID
1300555
$ 2,836.79
1-2 weeks delivery time
-
+
The Maxwell RC10-10 12V 1200W 150TDC CW Vertical Anchor Windlass (Vetus P105438) is a fully automatic rope/chain windlass designed for vessels requiring increased deck clearance and high anchoring performance. Powered by a 12 V DC, 1200 W motor, this vertical RC10 Series model is suitable for 10 mm (3/8") DIN 766 chain and 16 mm (5/8") nylon rope. The 150 TDC configuration allows installation on thicker decks, while the chainwheel-only design provides reliable anchor deployment and retrieval without a capstan drum.
- Description
- Ask a Question
-

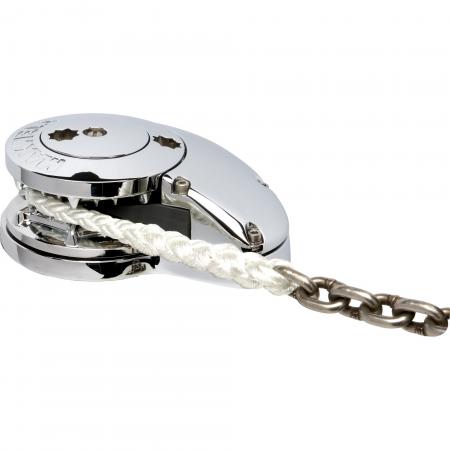

Maxwell RC10-10 12V 1200W 150TDC CW Vertical Anchor Windlass (Vetus P105438)
The Maxwell RC10-10 is a fully automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for demanding anchoring applications on cruising yachts and powerboats. This version features an increased Total Deck Clearance of 150 TDC, making it suitable for vessels with thicker deck structures or specific installation requirements.
Constructed from marine-grade stainless steel (AISI 316) and chromed bronze, the RC10-10 delivers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel, combined with a heavy-duty stainless steel pressure arm and preloaded spring system, ensures secure control of rope, chain, and the rope-to-chain splice during anchoring operations.
Driven by a powerful 1200 W motor operating on a 12 V DC supply, this windlass provides a maximum pull of 850 kg and a static holding capacity of 1500 kg. The chainwheel-only configuration is optimized for standard anchoring operations where independent rope handling via a drum is not required.
Specification Value Vetus Part Number P105438 Model RC10-10 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 150 TDC Maximum Pull / Lift 850 kg Static Hold 1500 kg Chain Speed (Retrieval) 24 m/min Rope Speed (Retrieval) 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8") DIN 766
- Chain diameter: 10 mm
- Recommended rope types: 3-strand or 8-plait nylon
- Rope diameter: 16 mm (5/8")
Recommended Vessel Size
- Up to 53 ft (light displacement)
- Up to 48 ft (heavy displacement)
Key Features
- Vertical automatic rope/chain anchor windlass
- High-output 1200 W motor for 12 V electrical systems
- Increased 150 TDC deck clearance for thick deck installations
- Wave Design™ chainwheel for smooth operation and extended rope life
- Marine-grade AISI 316 stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
