Vetus P102598 - Maxwell Windlass RC10-10, Hydraulic, 100TDC CW

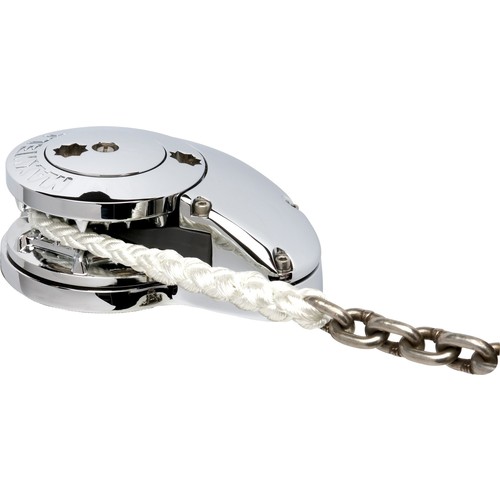

Maxwell RC10-10 Hydraulic 100TDC CW Vertical Anchor Windlass (Vetus P102598)

The Maxwell RC10-10 Hydraulic is a fully automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, designed for vessels requiring hydraulic drive systems and dependable anchoring performance. This model features a standard 100 TDC deck clearance, making it suitable for low-profile deck installations on cruising yachts and powerboats.

Manufactured from marine-grade stainless steel (AISI 316) and chromed bronze, the RC10-10 offers excellent corrosion resistance and long-term durability. The patented Wave Design™ chainwheel, combined with a heavy-duty stainless steel pressure arm and preloaded spring system, ensures secure handling of rope, chain, and the rope-to-chain splice.

The hydraulic drive system provides smooth, consistent operation with power equivalent to a 1200 W electric motor, making this windlass suitable for vessels equipped with onboard hydraulic systems. A sealed oil bath gearbox with precision worm and worm wheel ensures efficient power transfer and extended service life.

Rope and Chain Compatibility

• Short link chain: 10 mm (3/8")
• Chain diameter: 10 mm
• Recommended rope types: 3-strand or 8-plait nylon
• Rope diameter: 16 mm (5/8")

Recommended Vessel Size

• Up to 53 ft (light displacement)
• Up to 48 ft (heavy displacement)

Key Features

• Hydraulic vertical rope/chain anchor windlass
• Power equivalent to a 1200 W electric motor
• Wave Design™ chainwheel for smooth operation and secure rope handling
• Low-profile 100 TDC deck configuration
• Marine-grade AISI 316 stainless steel and chromed bronze construction

Operational Notes

• The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
• A chain stopper or alternative snubbing system must also be used to secure the anchor in the fully raised position while the vessel is under way.
