ID
1300550
$ 2,614.53
1-2 weeks delivery time
-
+
The Maxwell RC10-8 12V 1200W 100TDC CW Vertical Anchor Windlass (Vetus P105840) is a high-power automatic rope/chain windlass designed for vessels requiring enhanced performance on 12-volt electrical systems. Equipped with a 1200 W motor, this vertical RC10 Series model is suitable for 8 mm (5/16") DIN 766 chain and 14–16 mm (9/16"–5/8") nylon rope. The standard 100 TDC configuration supports efficient deck installation, while the CW chainwheel-only design ensures reliable anchor deployment and retrieval without a capstan drum.
- Description
- Ask a Question
-

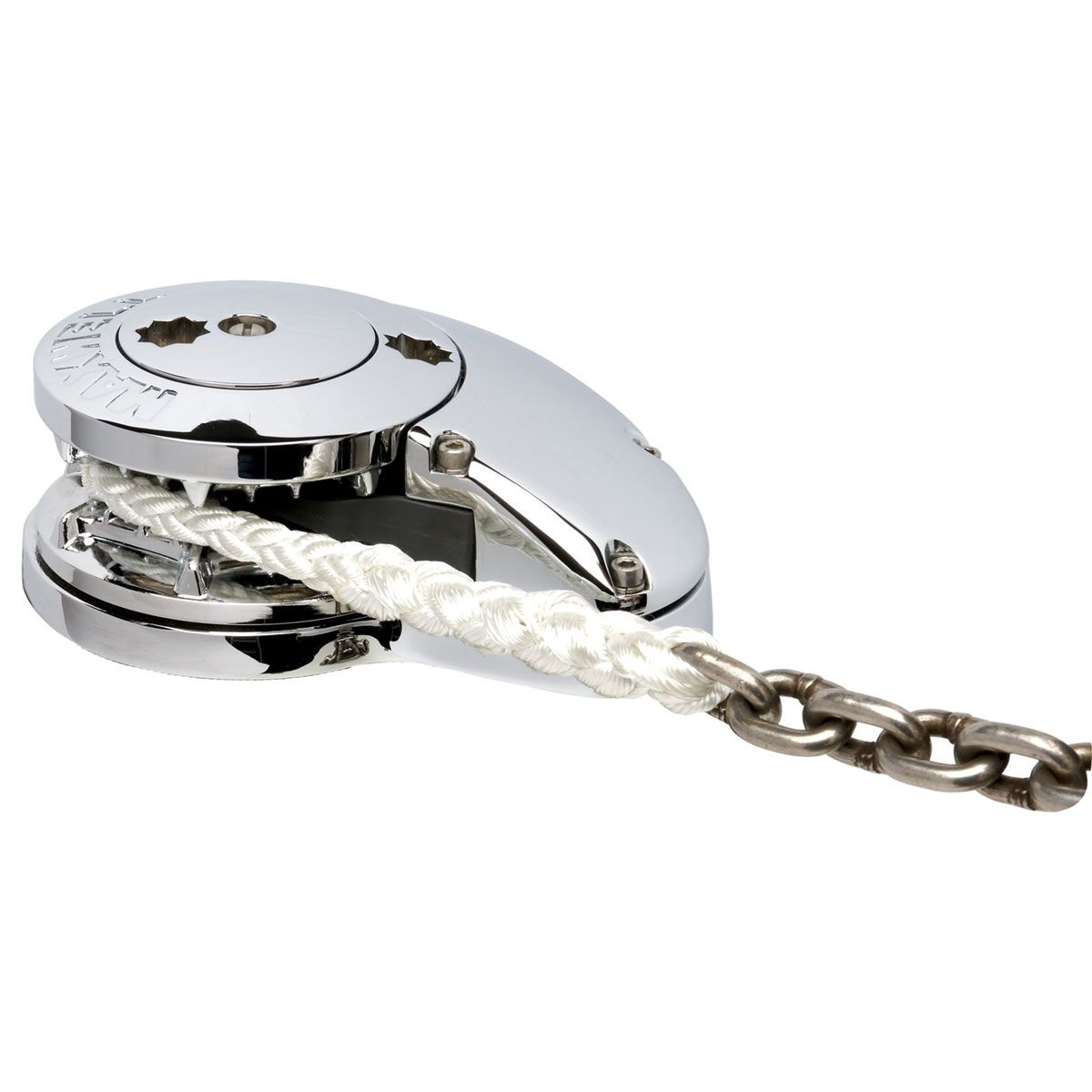

Maxwell RC10-8 12V 1200W 100TDC CW Vertical Anchor Windlass (Vetus P105840)
The Maxwell RC10-8 is an automatic vertical rope/chain anchor windlass from the Maxwell RC10 Series, engineered for reliable anchoring performance on cruising yachts and powerboats. This version is fitted with a higher-output 1200 W motor operating on a 12 V DC power supply, providing increased capability where higher loads or longer retrieval cycles are required.
Manufactured from marine-grade stainless steel and chromed bronze, the windlass offers excellent durability and corrosion resistance in demanding marine environments. The standard 100 TDC deck clearance configuration allows installation on a wide range of vessels with conventional deck thickness.
Specification Value Vetus Part Number P105840 Model RC10-8 Series Maxwell RC10 Series Voltage 12 V DC Motor Power 1200 W Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 100 TDC Maximum Pull / Lift Approximately 700 kg Static Hold Approximately 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 8 mm (5/16") DIN 766
- Chain diameter: 8 mm
- Rope material: Nylon
- Rope diameter: 14–16 mm (9/16"–5/8")
Key Features
- Vertical automatic rope/chain anchor windlass
- High-output 1200 W motor for enhanced performance on 12 V systems
- Standard 100 TDC deck clearance configuration
- Chainwheel-only design without capstan drum
- Marine-grade stainless steel and chromed bronze construction
Operational Notes
- The windlass must be used in conjunction with a chain stopper and/or alternative snubbing device to remove load from the windlass while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while the vessel is under way.
-
