The Maxwell RC10-10 Hydraulic 150TDC CW Vertical Anchor Windlass (Vetus P105440) is a hydraulic automatic rope/chain windlass designed for vessels requiring increased deck clearance and robust anchoring power. Featuring a hydraulic drive system with performance equivalent to a 1200 W electric unit, this vertical RC10 Series model supports 10 mm (3/8") DIN 766 chain and 16 mm (5/8") nylon rope. The 150 TDC configuration and chainwheel‑only design provide dependable anchor deployment and retrieval for demanding cruising and professional marine applications.
- Description
- Ask a Question
-

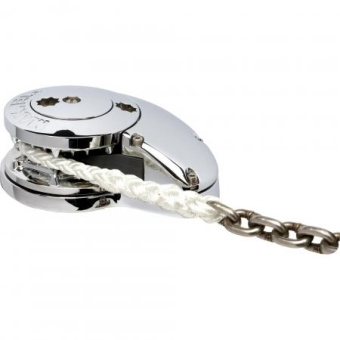

Maxwell RC10-10 Hydraulic 150TDC CW Vertical Anchor Windlass (Vetus P105440)
The Maxwell RC10-10 Hydraulic is a fully automatic vertical rope/chain anchor windlass from the upper mid‑range Maxwell RC10 Series, engineered for vessels requiring hydraulic drive systems and increased deck clearance (150 TDC). This chainwheel‑only version delivers reliable performance without an integrated drum, making it suitable for installations requiring a compact, powerful anchoring solution.
Constructed with marine-grade stainless steel (AISI 316) and chromed bronze, the RC10-10 Hydraulic windlass offers outstanding corrosion resistance and durability in harsh marine environments. The hydraulic drive provides smooth, consistent operation equivalent to a 1200 W electric motor, ideal for demanding anchoring tasks on cruising yachts, motorboats, and workboats.
Specification Value Vetus Part Number P105440 Model RC10-10 Hydraulic Series Maxwell RC10 Series Drive Type Hydraulic (≈1200 W performance) Installation Type Vertical Operation Automatic rope / chain Drum No Total Deck Clearance 150 TDC Maximum Pull / Lift Approximately 850 kg Static Hold 1500 kg Chain Speed (Retrieval) Approximately 24 m/min Rope Speed (Retrieval) Approximately 20 m/min Rotation CW (clockwise)
Rope and Chain Compatibility
- Short link chain: 10 mm (3/8") DIN 766
- Chain diameter: 10 mm
- Recommended rope types: 3‑strand or 8‑plait nylon
- Rope diameter: 16 mm (5/8")
Recommended Vessel Size
- Suitable for cruising yachts and motorboats requiring hydraulic drive anchoring systems
- Designed for vessels up to approximately 53 ft (light displacement)
Key Features
- Hydraulic vertical automatic rope/chain anchor windlass
- Power equivalent to a 1200 W electric motor
- 150 TDC increased deck clearance
- Marine‑grade stainless steel and chromed bronze construction
- Chainwheel‑only configuration without drum
Operational Notes
- The windlass must be used with a chain stopper and/or alternative snubbing device to relieve load while at anchor.
- A chain stopper or alternative snubbing system should also be used to secure the anchor in the fully raised position while underway.
-
